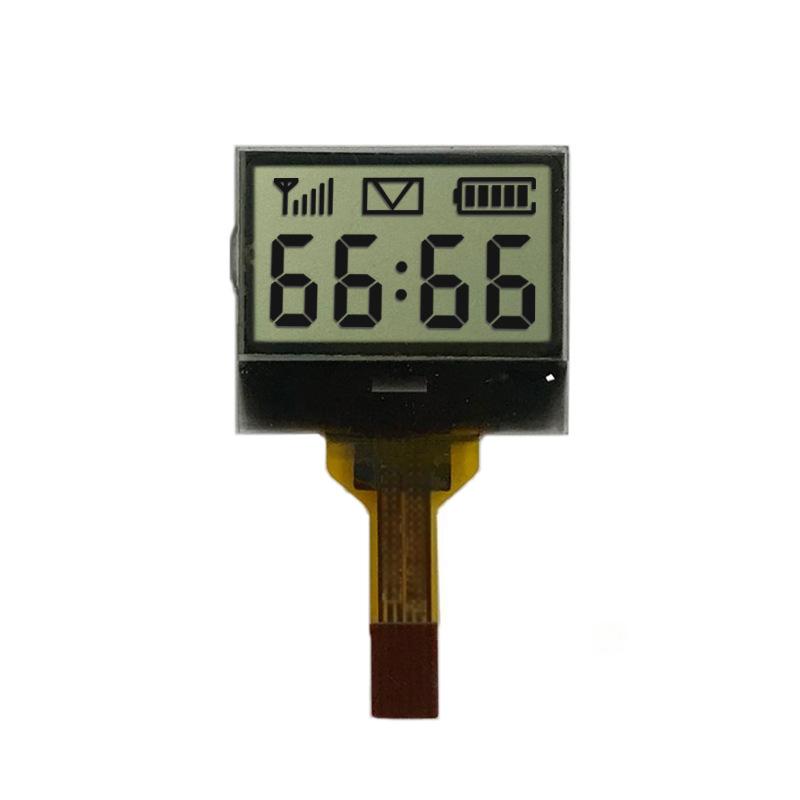

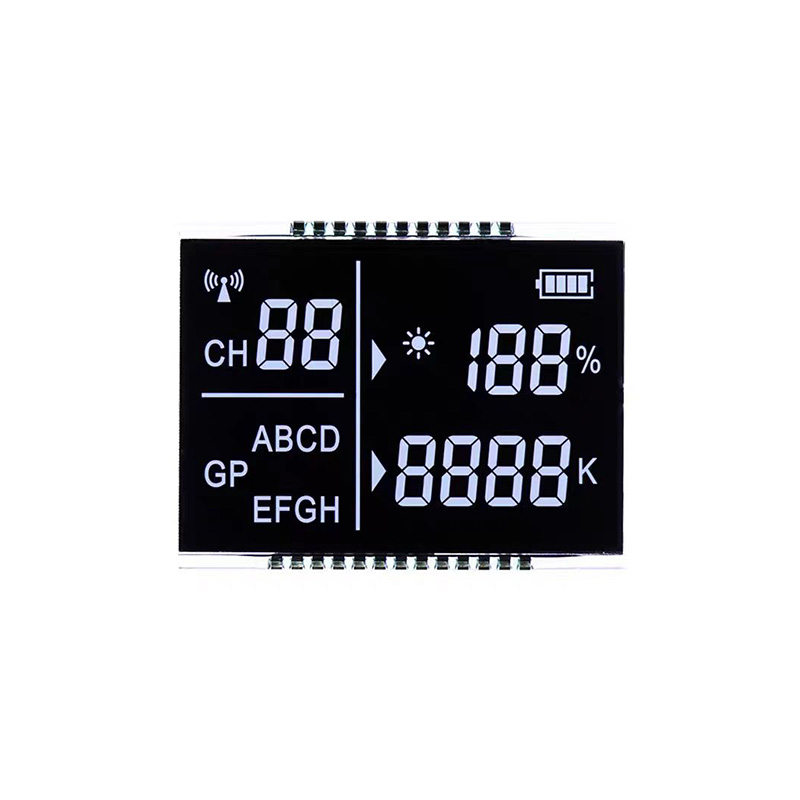

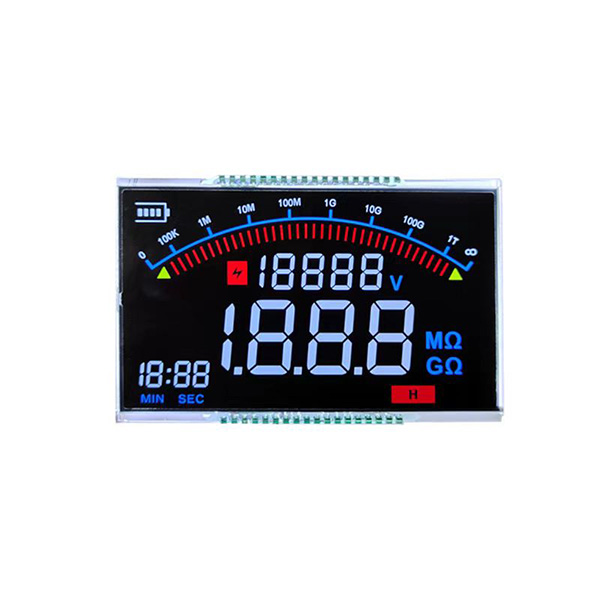

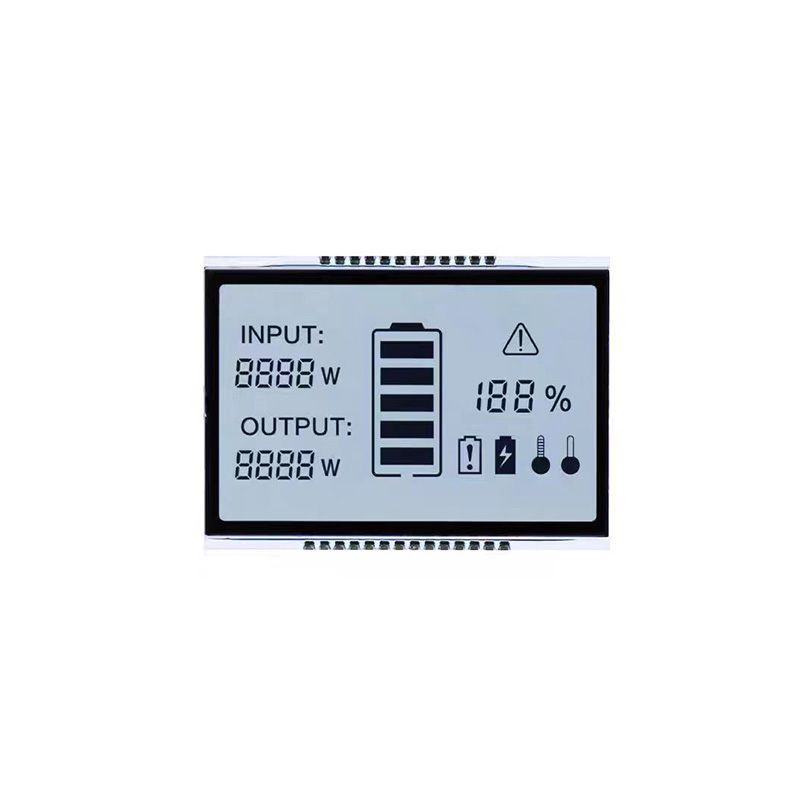

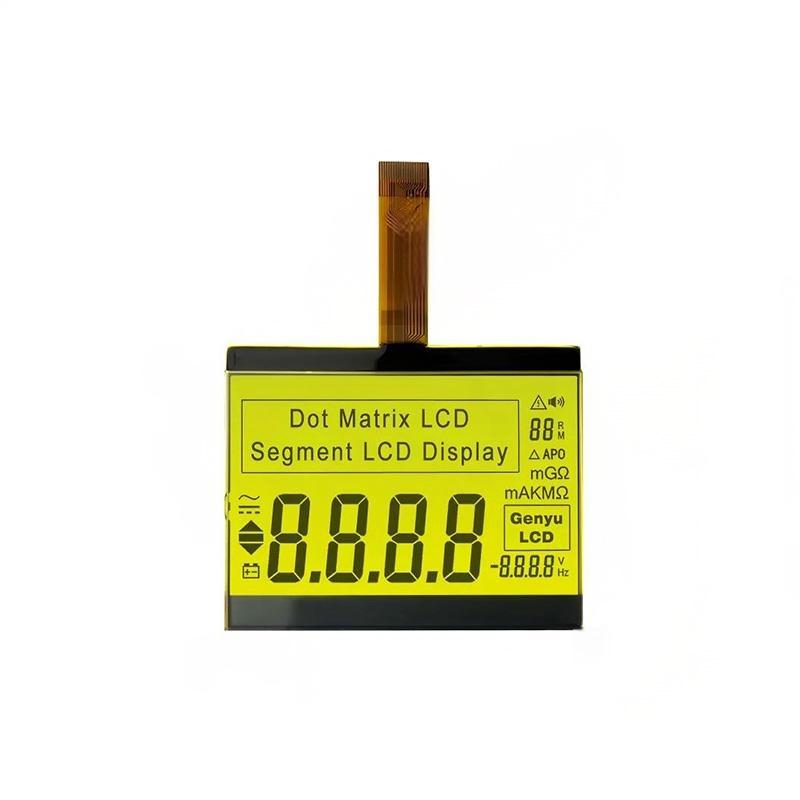

LCD segment displays are widely used, with some products deployed in extreme environments such as low temperature, high temperature, strong light, and high humidity. High-durability LCDs are designed to meet the demands of such harsh operating conditions.
Standard high-durability LCD segment displays typically have the following laboratory durability parameters: high-temperature resistance of 85°C for 240 hours, low-temperature resistance of -40°C for 10 hours, and high-temperature high-humidity resistance of 85°C & 85% RH for 240 hours. Ultra-high durability LCD segment displays offer enhanced performance, including high-temperature resistance of 105°C for 500 hours, low-temperature resistance of -40°C for 1000 hours, high-temperature high-humidity resistance of 85°C & 85% RH for 500 hours (or 80°C & 90% RH for 500 hours), thermal shock resistance (-40°C for 30 minutes ↔ 85°C for 30 minutes) for 200 cycles, and light resistance under Xenon lamp at 63°C for 240 hours. Other performance characteristics of high-durability LCD segment displays are fully consistent with those of standard LCD segment displays, and they similarly meet the parameter requirements for applications in industrial, medical, and automotive fields. All high-durability products comply with RoHS and REACH substance standards.
| Manufacturer | EASTERN DISPLAY |
| Connection method | FPC/ Metal pins Custom |
| Product model | TN/HTN/STN/FSTN/VA Custom |
| Viewing angle direction | Customizable/Full View |
| Operating voltage | 2.7V-5V Custom |
| Viewing angle range | 150-180° |
| Special shape | Custom |
| Number of drive paths | Custom |
| Backlight type/color | Custom |
| Operating temperature | -40--90℃ |
| Storage temperature | -45--90℃ |
| Visible under strong light | Custom |
| Screen printing / color film | Custom |
| Life time | 100,000–200,000 hours Custom |
| Keywords: STN LCD/FSTN LCD/VA LCD/High Durability LCD/Ultra-high durability LCD/Custom segment display/High contrast LCD/Portable LCD/Strong light visibility/Small LCD display/LCD glass/Segment LCD/Transparent LCD | |
