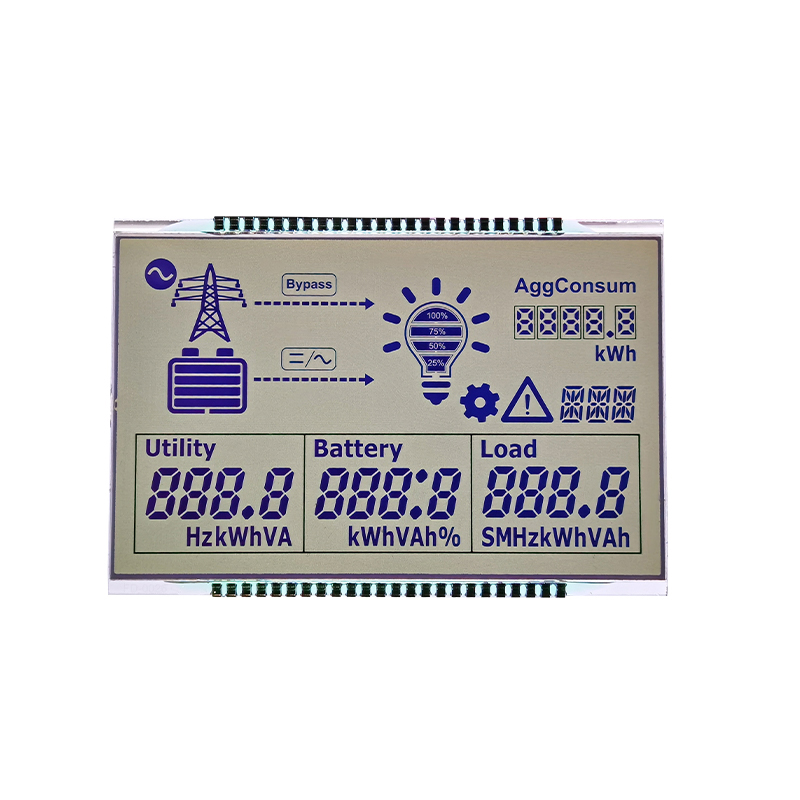

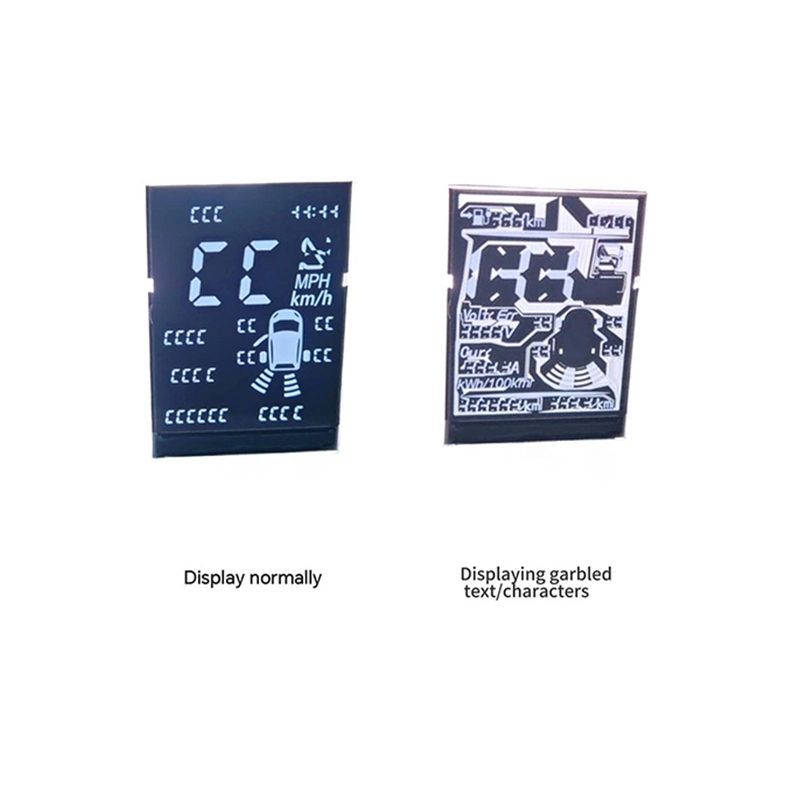

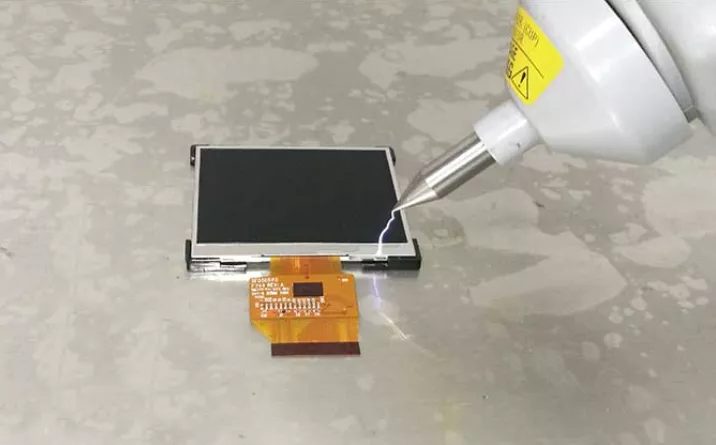

This is a Liquid Crystal Display (LCD) with high anti-static (ESD) performance. Electrostatic discharge can damage electronic devices, particularly affecting LCD display quality in dry environments. Anti-static LCDs minimize the impact of static electricity on the screen through specialized designs, materials, and manufacturing processes, ensuring device reliability and longevity.
COG Segment LCD (Chip-on-Glass Segment Liquid Crystal Display) is a liquid crystal display technology where the driver chip (IC) is directly bonded onto the glass substrate. It features high integration, slim design, low power consumption, and low cost.
This product is a mini OLED display with a resolution of 128×32 pixels, an I2C interface, and a brightness of 150cd/m². It operates within a temperature range of-40℃ to 70℃ and features ultra-low power consumption, high contrast, and a wide viewing angle. The display content is clear and prominent. It is widely used in applications such as pulse oximeters, paint film testers, flow meters, gas detectors, and temperature and humidity monitors.
HTN LCD are widely used in various types of dispensing equipment, includingLNG 、dispenserfuel dispensers、special fluid dispensers、 self-sustaining pump dispensers、submersible pump dispensers、 self-service dispensers、and pre-set dispensers. Segment displays provide an intelligent presentation of core fueling information areas, status and prompt zones, and operator interfaces. For a fuel dispenser, an LCD is far more than just a simple “digital display”—it serves as a central interactive hub connecting the gas station, customers, payment systems, and backend management. It transforms a mechanical fluid-dispensing process into a digitized, information-enabled, and interactive modern commercial service environment.
This product is a 4.3-inch TFT display specially designed for automotive instrument clusters. All materials used are automotive-grade, enabling stable operation in a wide-temperature environment from -30°C to 85°C. The screen features a high brightness of 1000 cd/m² and supports an RGB interface, ensuring clear visibility even under direct strong light. Its full-viewing-angle characteristic guarantees that drivers can accurately read key driving information from any angle. It is widely used in applications such as automotive instrument panels, engineering machinery controllers, and integrated instrument systems.
This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses STN yellow-green mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip, adopts COB production technology, and is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts. The internal compensation circuit enables the module to achieve good display effects even when used in a wide temperature range.

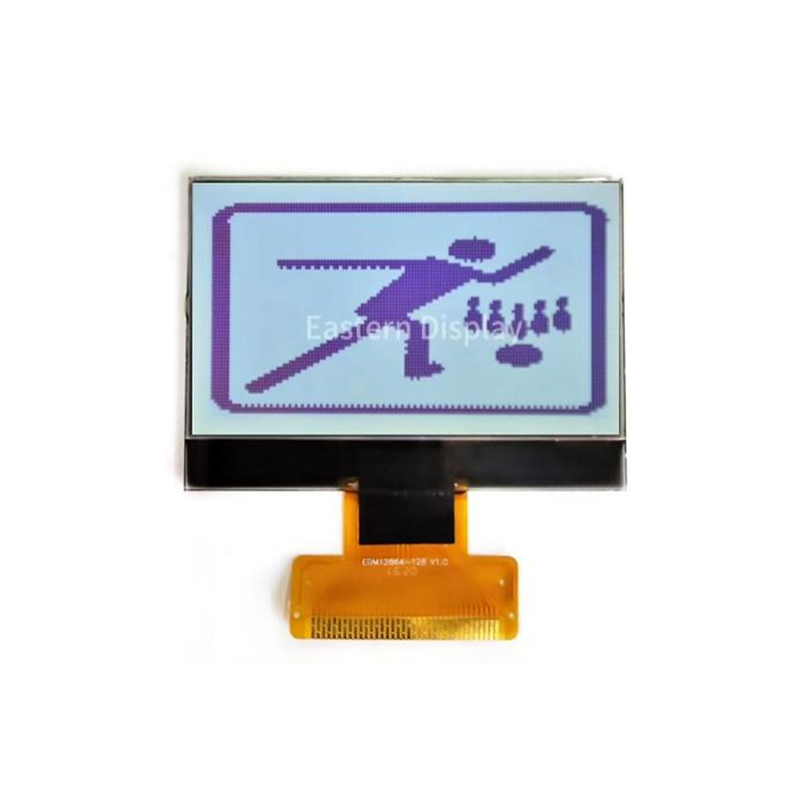

This product is a 12864 LCD dot matrix display capable of showing graphics with a resolution of 128 columns × 64 rows of pixels. The screen utilizes FSTN technology, featuring a gray background with blue-black characters, offering high contrast and a wide viewing angle. The module incorporates a driver chip and is manufactured using COG (Chip-on-Glass) technology, resulting in a slim, lightweight design with low power consumption. It connects to the main control MCU via an SPI interface or an 8-bit parallel LCD interface, enabling the display of various images and text.
Product description: This product is a high-definition automotive instrument large-si...
Product description: Segment LCD screen with built-in touch screen Touch LCD segment ...
0.54-inch OLED display module is an ultra-compact, high-contrast solution designed for embedded systems and portable electronic devices. With a resolution of 96 x 32 pixels and an operating temperature range of -40 to 70°C, it enables clear information display within a minimal footprint. It is widely used in smart wearable devices, portable industrial instruments and meters, and controllers for small household appliances.
High reliability segment LCD: Different from ordinary screens, it has the characteristics of ultra-wide temperature, anti-ultraviolet, anti-vibration, high humidity, strong light visibility, low power consumption, long life, etc., and can also meet the requirements of low power consumption, suitable for battery or solar power supply conditions.
VA LCD products are widely used in industrial alarm instruments such as multi-channel alarm meters, single-channel digital display alarm meters, status/process indicators, and dedicated gas detection alarm meters. The LCD screens digitally display real-time measurement values (temperature, pressure, etc.), alarm setpoints, analog displays (percentage), channel numbers, alarm status indications, gas concentration values (e.g., %LEL), and provide precise display of single-point parameters and threshold alarms. This enables the informational representation of instrument functions for monitoring production process parameters and ensuring personal and property safety.
This product is a 128128 LCD dot matrix display that can display graphics with 128 columns x 128 rows of pixels. The display uses FSTN mode, displays blue and black characters on a gray background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is light and thin with low power consumption. It is connected to the main control MCU through the SPI interface or 8-bit parallel LCD interface to display various images and texts.
Product description: Super-large segment screens usually refer to LCD segment screens...
A round color OLED display with resolution of 128*115, SPI 4 interface, Driver IC: GC9107. The product has self-illumination, full view, no shadow in low temperature environment and other characteristics. It is widely used in smart wearable devices and smart home control terminals.
Product Description: The rangefinder-specific LCD is a lens-compatible LCD display featuring a compact size, high contrast, shock resistance, durability, and excellent environmental adaptability. It requires high display accuracy to meet magnification inspection requirements, with edges remaining smooth and free of burrs even after 50x magnification. The product’s small size necessitates specialized fixtures and equipment for bonding polarizing films or chips, as well as FPC pressing.
VA LCD segment displays feature a black background with white characters, offering high contrast, a wide operating temperature range, broad viewing angles, and fast response times. They can be combined with color silk printing or color filter films to achieve TFT-like colorful display effects and can also be used in conjunction with TFT screens.
