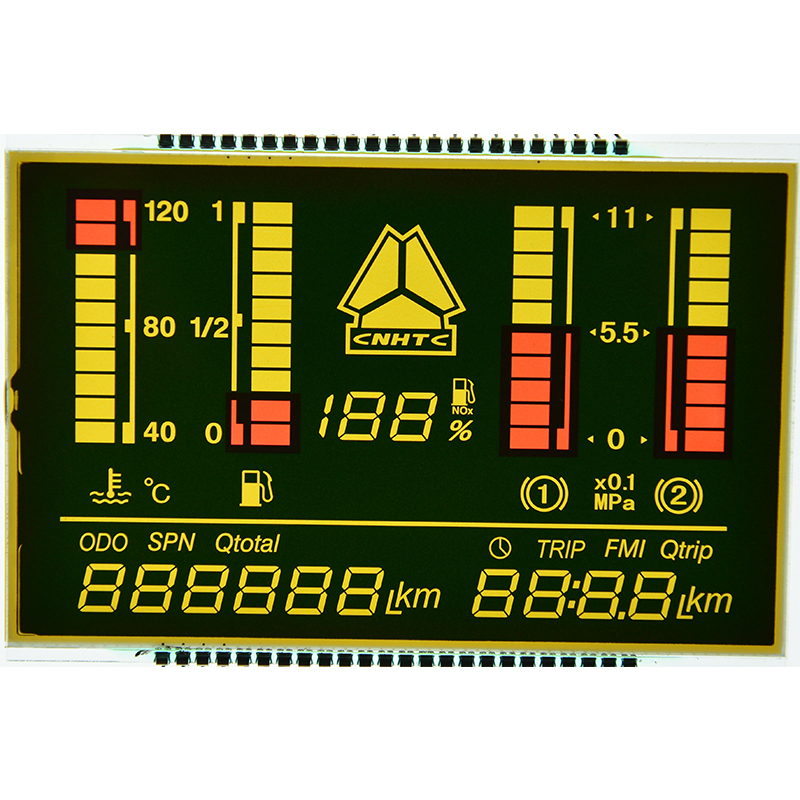

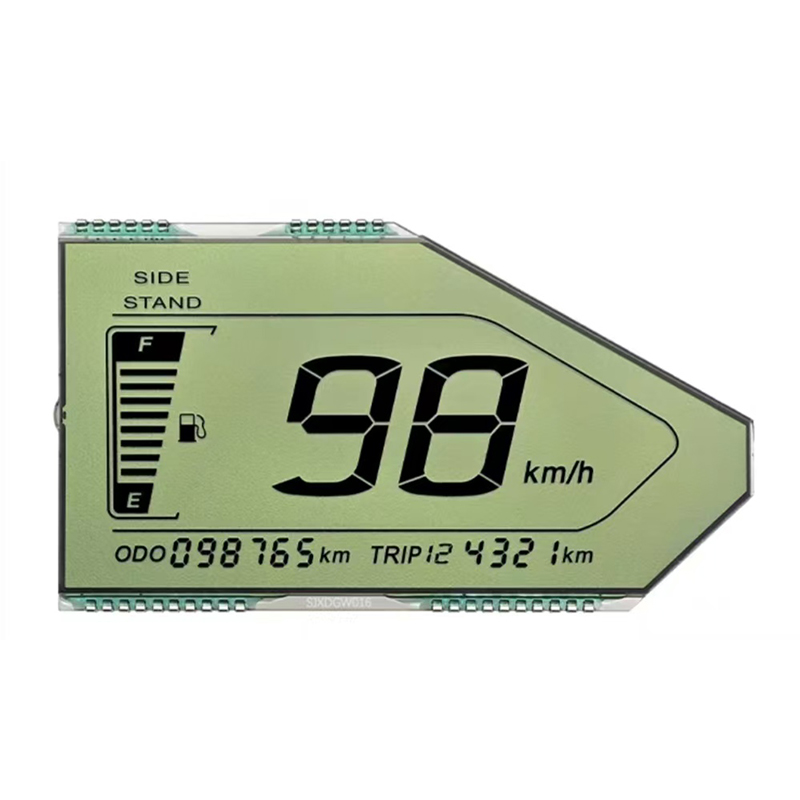

Product description: HTN segment LCD is an improved product of TN segment LCD, with a wider viewing angle than TN LCD. The viewing angle can reach 150°, and it can carry 16DUTY. The HTN LCD segment screen can display clearly at -40℃. The voltage 3-5V can be customized, with low power consumption at microampere level, and can be powered by solar cells. The viewing angle width of HTN LCD segment can reach up to 150°, low power consumption at microampere level, and the response speed at low temperature can reach 2S, which can be used in cold outdoor environments. It is widely used in flow meters, fuel meters, vehicle-mounted instruments, and outdoor handheld devices. HTN LCD segment ...
HTN segment LCD is an improved product of TN segment LCD, with a wider viewing angle than TN LCD. The viewing angle can reach 150°, and it can carry 16DUTY. The HTN LCD segment screen can display clearly at -40℃. The voltage 3-5V can be customized, with low power consumption at microampere level, and can be powered by solar cells.
The viewing angle width of HTN LCD segment can reach up to 150°, low power consumption at microampere level, and the response speed at low temperature can reach 2S, which can be used in cold outdoor environments. It is widely used in flow meters, fuel meters, vehicle-mounted instruments, and outdoor handheld devices. HTN LCD segment screens are widely used in medical devices such as blood pressure monitors, thermometers, and blood sugar monitors. More than 80% of the blood pressure monitors and thermometers of medical device giant Omron are HTN LCD segment screen products. HTN segment code LCD has two modes: blue background with white characters and gray background with black characters. It can be matched with color backlight and color silk screen to present color field effect. It can be customized according to customer needs. The power connection of the product can be pins, conductive tapes, FPC, the shape of the pins can be customized, and it can be used as a touch screen. The material standards of the product meet the requirements of ROSH REACH.
| Manufacturer | EASTERN DISPLAY |
| Contrast | 20-80 |
| Connection method | PIN/FPC/ZEBRA |
| Display type | Segment LCD /Negative/Positive Customization |
| Viewing angle direction | Customization |
| Operating voltage | 2.5V-5V |
| Viewing angle range | 70-150°Customization |
| Number of drive paths | STATIC/ MULTI DUTY |
| Backlight type/color | Customization |
| Display color | Customization |
| Transmittance type | Transmissive/ Reflection /Transflective Customization |
| Operating temperature | -40-90℃ |
| Storage temperature | -45-90℃ |
| Service life | 100,000-200,000 hours |
| UV resistance | YES |
| Power consumption | Microampere level |
LED segment display products are widely used in medical instruments such as blood glucose meters,...
Product description: FSTN LCD is widely used in industrial instruments, industrial co...
Product description: This product is a high-definition automotive instrument large-si...
This product is a 128128 LCD dot matrix display that can display graphics with 128 columns x 128 rows of pixels. The display uses FSTN mode, displays blue and black characters on a gray background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is light and thin with low power consumption. It is connected to the main control MCU through the SPI interface or 8-bit parallel LCD interface to display various images and texts.
Product description: 2.4 inch OLED display, resolution 128*64, parallel port or I2C i...
Product description: 7-inch TFT display uses automotive-grade LCD and backlight mater...
Product description: HTN LCD types are widely used in industrial instruments, industr...
This product is a 240160 LCD dot matrix display that can display graphics with 240 columns x 160 rows of pixels. The display uses FSTN mode LED backlit LCD, which displays blue and black characters on a gray background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is light and thin with low power consumption. It is connected to the main control MCU through the I2C interface and is used to display various images and texts.
This product is a 12232 LCD dot matrix display that can display graphics with 122 columns x 32 rows of pixels. The display uses STN yellow-green mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip, adopts COB production technology, and is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts.
This product is an LCD 20×4 character dot matrix display module, which is used for ASCII character display, with 4 lines and 20 characters per line. The display screen uses STN yellow-green mode LED backlit LCD, which displays black characters on a yellow-green background, with high contrast and wide viewing angle. The module contains the ST7066 universal character driver chip, adopts COB production technology, and is connected to the main control MCU through an 8-bit parallel LCD interface, which is easy to use.
Product description: HTN LCD products have high contrast, wide viewing angle, clear d...
FSTN LCD Film compensated STN has a wide viewing angle, suitable for multi-channel dynamic driving, more uniform background color than STN LCD, and suitable for displaying complex screens. It can achieve 320 channels, no crosstalk, and can be made into dot matrix.
Product description: HTN LCD is widely used in industrial instruments, industrial con...
Product description: The light source of the translucent LCD segment code LCD screen ...
Product description: Industrial OLED Display module, resolution 128*64, I2C interface...
This product is a 320240 LCD dot matrix display that can display graphics with 320 columns x 240 rows of pixels. The display uses STN mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is thin and light, has ultra-low power consumption, and a wide temperature range. It is connected to the main control MCU through the SPI interface and is used to display various images and texts.
