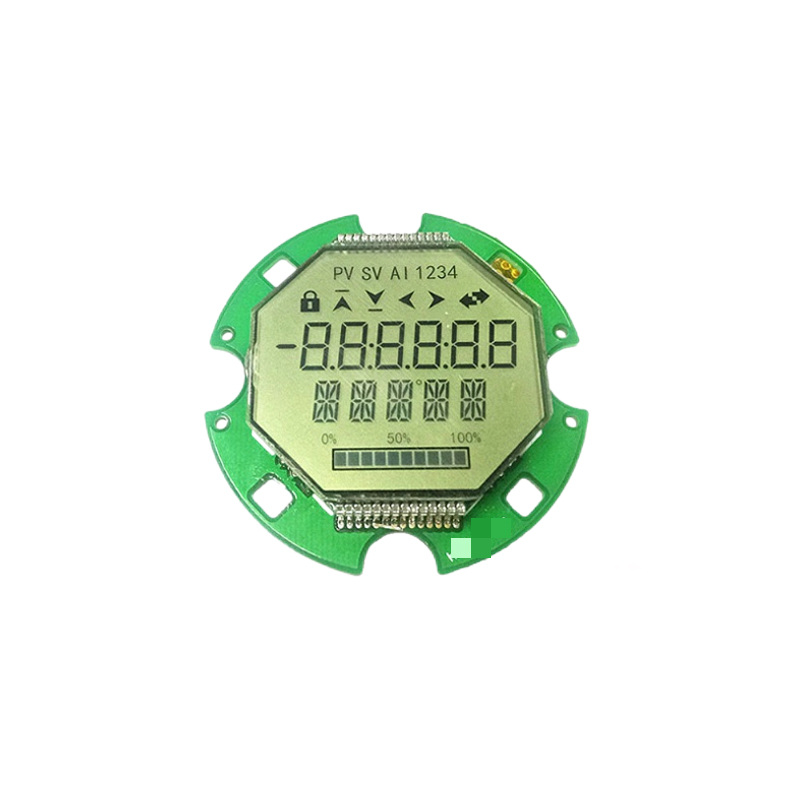

STN LCD is widely used in industrial instruments, industrial control equipment and communication equipment such as flow meters, microcomputer protection devices, recorders, energy meters, handheld meters, digital display meters, measuring meters, test meters, etc. STN LCD is used to display the measurement results, parameters, status information of instruments and meters, and the operating status, alarm information and operation interface of industrial control equipment and communication equipment.
Text: EASTERN DISPLAY provides thousands of STN LCDs to customers in North America, Europe, East Asia, etc. The annual supply quantity exceeds 10 million pieces. Based on many years of product development and production experience in serving customers of industrial instruments, industrial control equipment and communication equipment, it has rich technical accumulation in product design, core parameters and customer concerns. It can provide customers with high-quality, cost-effective custom segment displays in a continuous and stable manner.
| Manufacturer | EASTERN DISPLAY |
| Display type | STN LCD |
| Viewing angle | 6/12 0’ CLOCK (custom made) |
| Operating voltage | 2.5V---3.3V(custom made) |
| Backlight type | LED dot matrix display |
| Backlight color | custom made |
| Operating temperature | -20℃-75℃ |
| Storage temperature | -30℃-85℃ |
| Display life | 100,000-200,000 hours (custom made) |
| ROHS standard | YES |
| REACH standard | YES |
| Applicable fields and scenarios | Recorders, energy meters, handheld meters, digital display meters, etc. |
| Product features | Wide Angle of view |
| keywords：LCD 20x4/12864 LCD/I2C interface/IPS LCD display/20x4 LCD display/LED LCD/LCD 16x2 i2c/16 * 2 LCD display/1602a LCD/ LCD 2004/SPI interface/12232 LCD/12832 LCD/1602 LCD/1602 LCD display/1602 LCD display module/19264 LCD/IIC1602 LCD/1602 LCD screen/LED backlight | |
This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses STN yellow-green mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip, adopts COB production technology, and is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts. The internal compensation circuit enables the module to achieve good display effects even when used in a wide temperature range.
This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses STN yellow-green mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip, adopts COB production technology, and is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts. The internal compensation circuit enables the module to achieve good display effects even when used in a wide temperature range.
Product description: mini oled display module, resolution 64*32, I2C interface, ultra...
This product is a 14432 LCD dot matrix display that can display graphics with 144 columns x 32 rows of pixels. The display uses a Blue Negative Mode LED backlit LCD to display white text on a blue background, with high contrast and wide viewing angle. The module contains a driver chip, uses COB production technology, and is connected to the main control MCU through a 3-wire SPI interface to display various images and texts. It contains a simplified Chinese character library, and data transmission is simple.
This product is a 240128 LCD dot matrix display that can display graphics with 240 columns x 128 rows of pixels. The display uses STN Negative mode LED backlit LCD, displays white text on a blue background, and has high contrast and wide viewing angle. The module contains a driver chip, uses COB and SMT production processes, and is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts.
VA LCD segment code products are upgraded products based on TN LCD technology. The contrast ratio can reach 120 and the wide temperature range is -45-90℃. The basic version of VALCD displays black background and white characters. If it is matched with the corresponding silk-screen color or color film, it can show the effect of TFT color screen and can also be used with TFT screen. It has micro-ampere low power consumption and can be powered by solar cells. Special shapes can meet customers’ special shape requirements.
Product description: 7-inch tft display uses automotive-grade LCD and backlight mater...

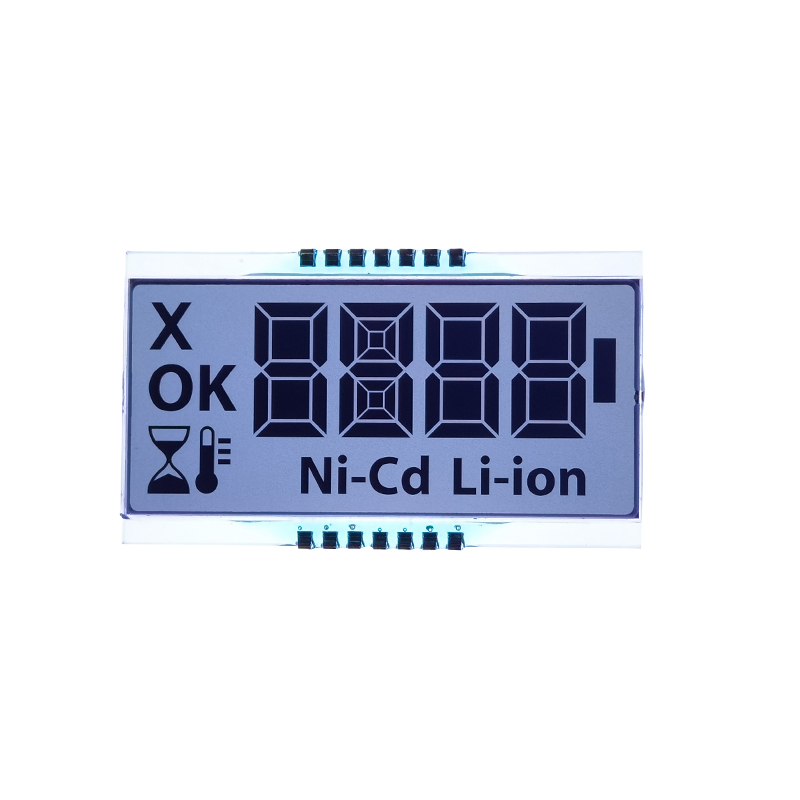

Product description: Antistatic LCD is a liquid crystal display with antistatic funct...
Product description: This industrial-grade TFT display screen, with a resolution of 1...
Diffusion film LCD converts point light source or line light source (such as LED or CCFL) into uniform surface light source to ensure the brightness and color uniformity of LCD display. The light source of LCD motherboard with diffusion film can directly use LED lamp beads to reduce the cost of backlight source, and can also effectively cover the dots or other optical defects on the light guide plate, so that the brightness of LCD display is more uniform.
This product is a 256104 LCD dot matrix display that can display graphics with 256 columns x 104 rows of pixels. The display uses ASTN Negative mode LED backlit LCD, which displays white text on a black background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology, which is thin and light with low power consumption. It is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts.
FSTN LCD Film compensated STN has a wide viewing angle, suitable for multi-channel dynamic driving, more uniform background color than STN LCD, and suitable for displaying complex screens. It can achieve 320 channels, no crosstalk, and can be made into dot matrix.
Product description: 7-inch tft display uses automotive-grade LCD and backlight mater...
Product description: VA LCD products are widely used in industrial instruments, indus...
Product description: mini oled display, resolution 96*32, I2C interface, product ultr...
This product is a 12232 LCD dot matrix display that can display graphics with 122 columns x 32 rows of pixels. The display uses STN yellow-green mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip, adopts COB production technology, and is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts.
