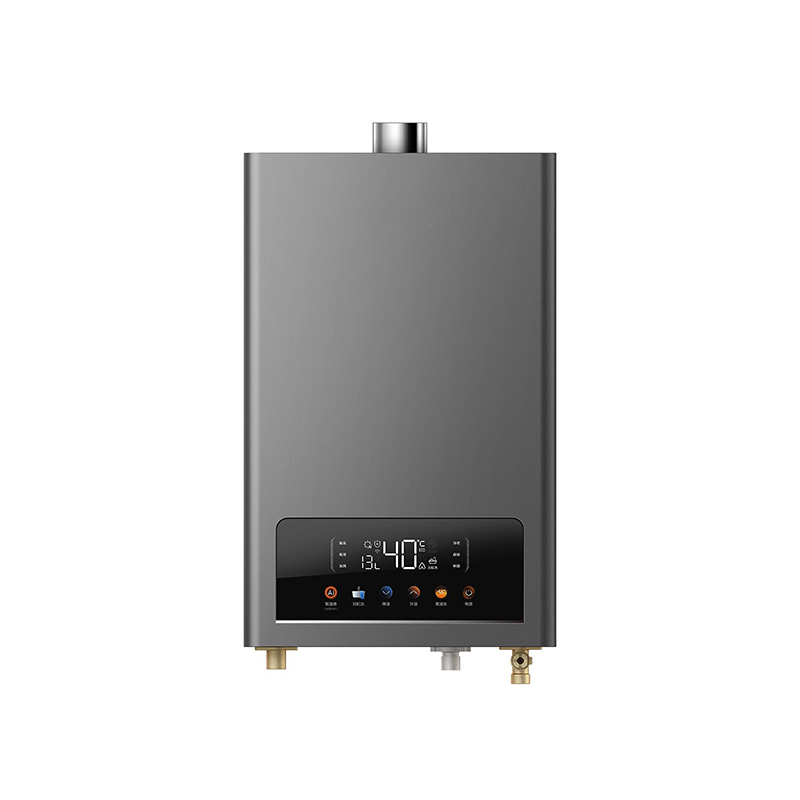

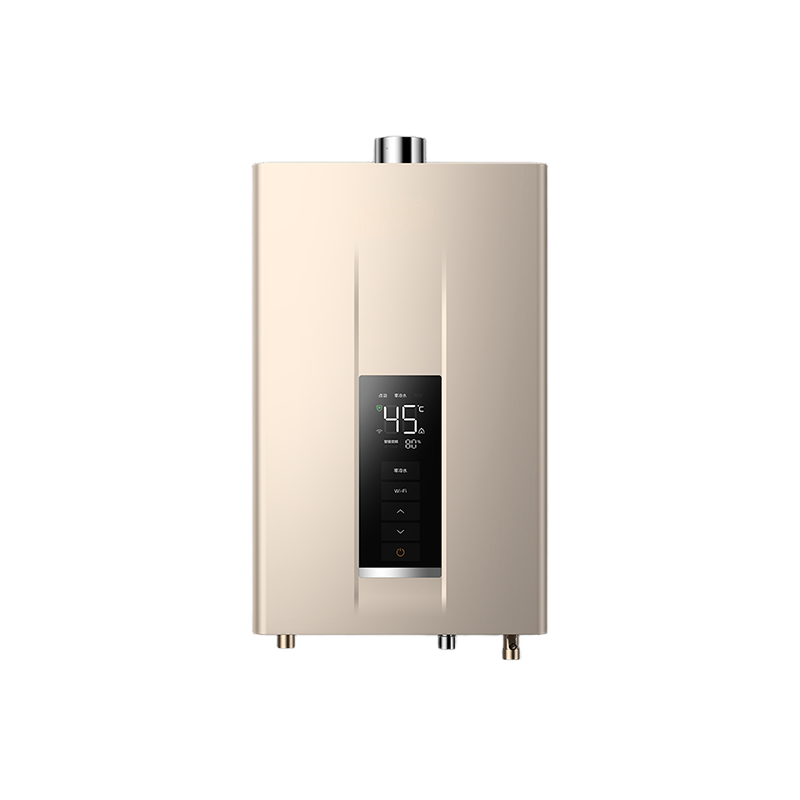

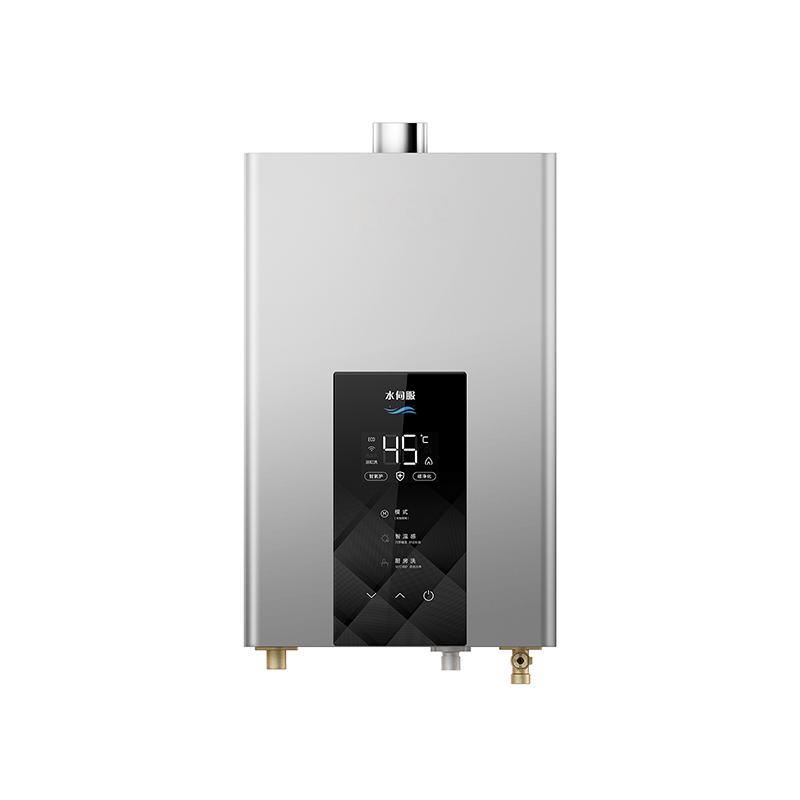

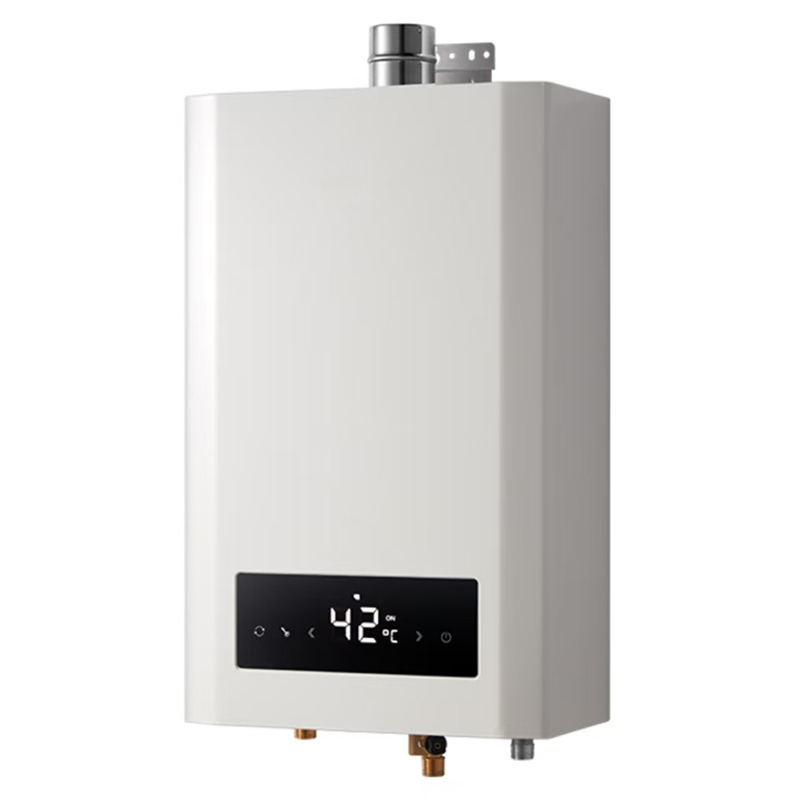

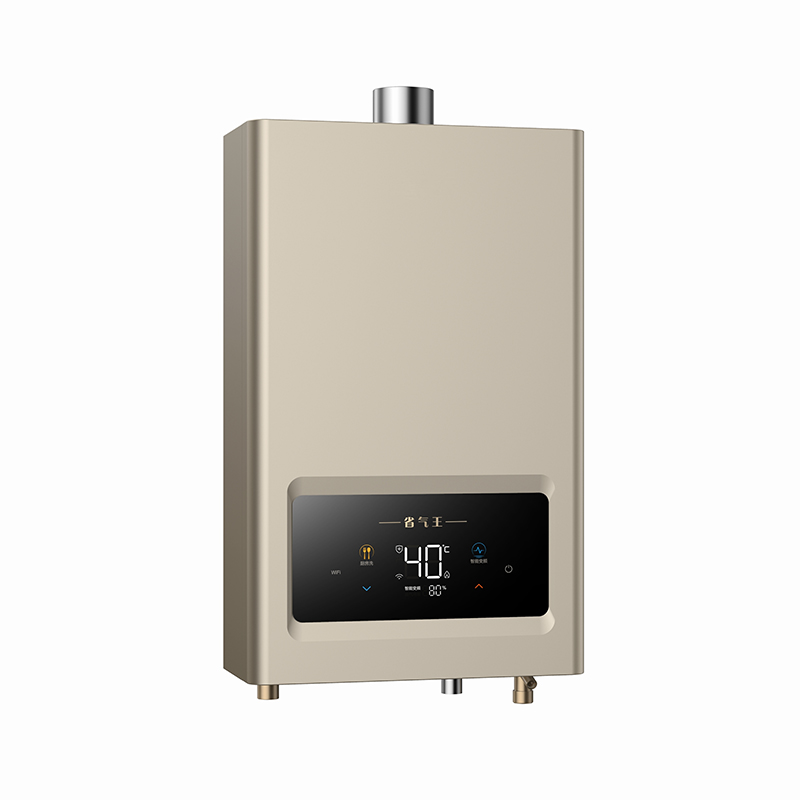

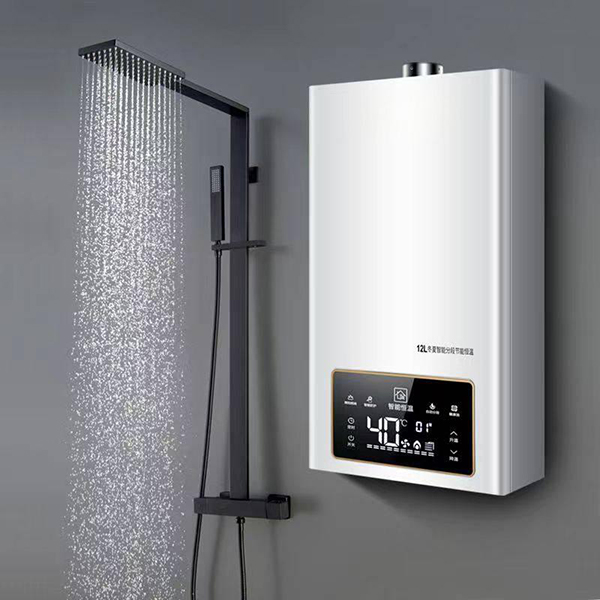

VA LCD products are suitable for gas water heaters, including storage water heaters and combi condensing boilers. They feature high contrast, wide viewing angles, color and gradient display capabilities, an ultra-wide operating temperature range (-40°C to 80°C), and low driving costs. With custom segment displays, a mechanical device hidden in the kitchen or balcony is transformed into a smart home appliance that is communicative, controllable, and trustworthy. It not only enhances convenience and comfort in use but, more importantly, through transparent information delivery and precise fault alerts, becomes a critical proactive line of defense in the household gas safety system.
Eastern Display supplies over a thousand models of custom segment displays for water heater products to clients across Europe, North America, East Asia, and beyond. We have accumulated extensive technical expertise in product design, core parameters, and application integration. Eastern Display is capable of consistently and reliably providing customers with high-quality, cost-effective VA LCD solutions.
| Manufacturer | Eastern Display |
| Display mode | VA LCD |
| Viewing angle | 6/12 O’ CLOCK |
| Operating voltage | 3.0V ---5.0V |
| Viewing angle range | 120-180° |
| Connection | FPC/Pins |
| Driver chip model | / |
| Backlight type/color | / |
| Operating temperature | -40℃-80℃ |
| Storage temperature | -40℃-85℃ |
| Lifetime | 100,000 H |
| Multi-color | YES |
| Special shaped | YES |
| Product features | High contrast, ultra-wide operating temperature |
