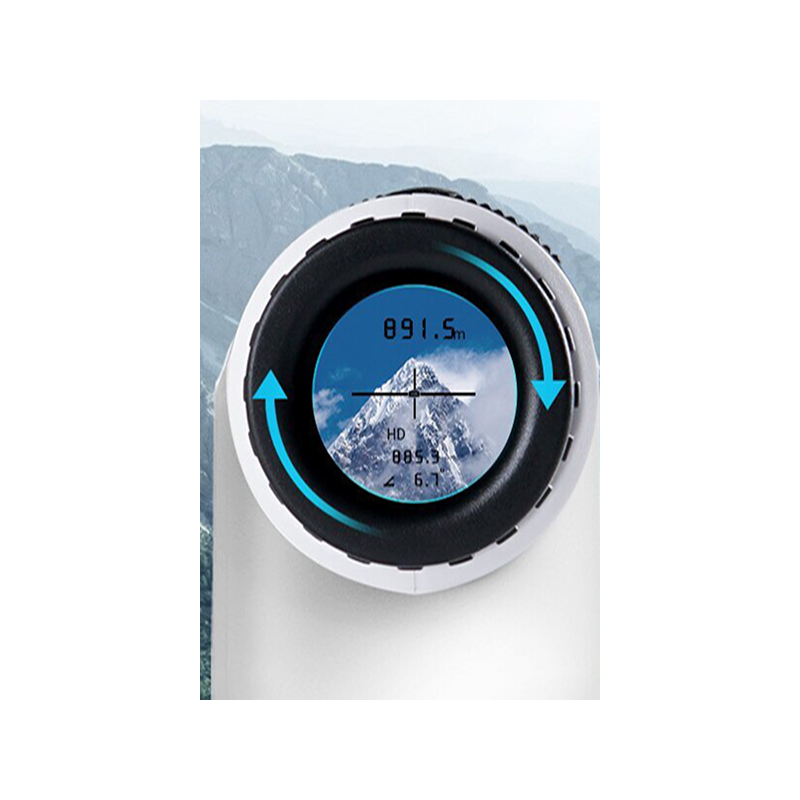

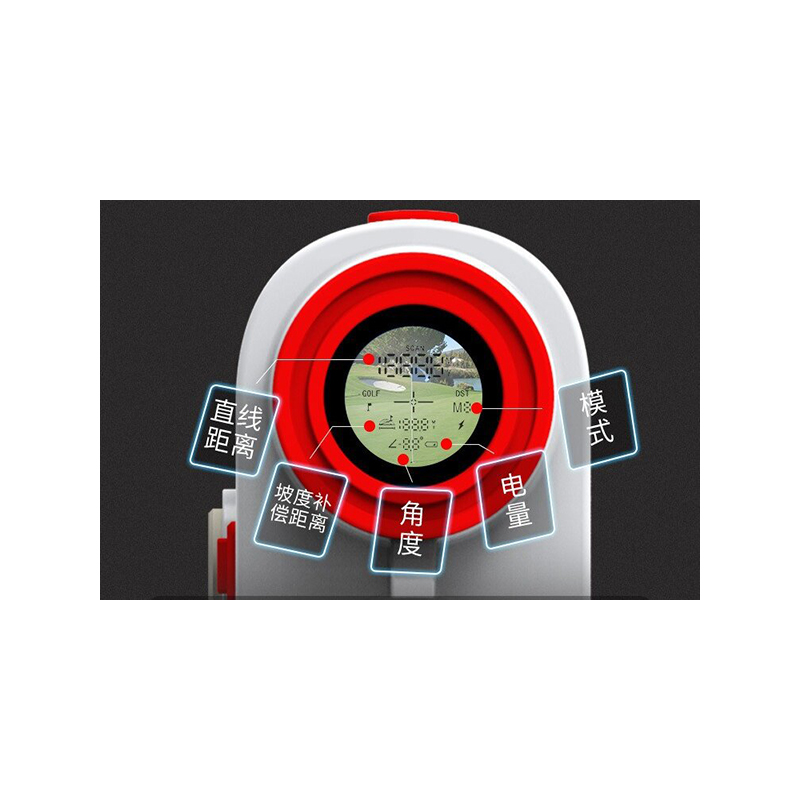

LCD applied to the Rangefinder is the LCD display screen for the lens, which is characterized by small size, high contrast, shock resistance, durability and high environmental adaptability. High display accuracy requirements, to meet the requirements of magnification detection, magnification of 50 times after the display of smooth edges for the burr. The size of the product is small, and special fixtures and equipments are needed for bonding polarizer or chip and FPC crimping.

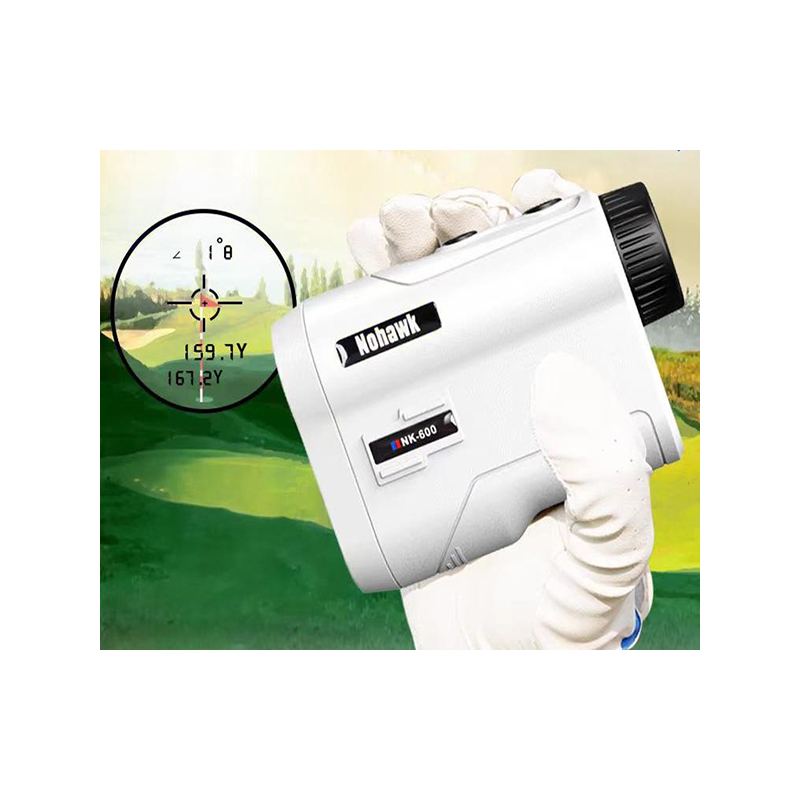

EASTERN DISPLAY can provide customized product rangefinder lens special LCD, the product can be in the building survey, fire, industrial maintenance and other professional fields of rangefinder, also widely used in hunting telescope or golf and other portable sports field rangefinder. Products heavy miniaturization and low power consumption design, usually using a fully transparent type, categories have VA, TN, STN can do pin and FPC connection, can do COG (Chip on Glass) with driver chip structure.
| Manufacturer | EASTERN DISPLAY |
| Contrast Ratio | 80-200 |
| Connection Type | Customizable |
| Display Type | Customizable |
| Viewing Angle Direction | Customizable |
| Operating Voltage | 3V-5V Customizable |
| Viewing Angle Range | 120-140° |
| Number of Drivers | STATIC/ MULTI DUTY |
| Backlight Type/Color | Customizable |
| Display Color | Customizable |
| Transmission Type | Transmissive Customizable |
| Operating Temperature | -40-85°C |
| Storage Temperature | -40-90°C |
| Lifespan | 100,000-200,000 hours |
| UV Resistance | YES |
| Power Consumption | Microampere Level |
