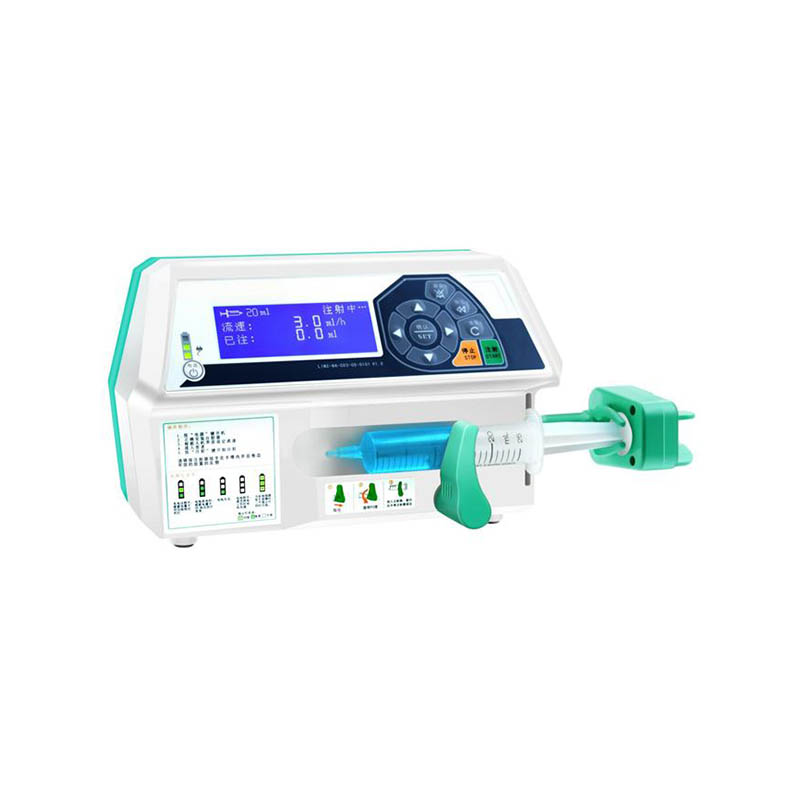

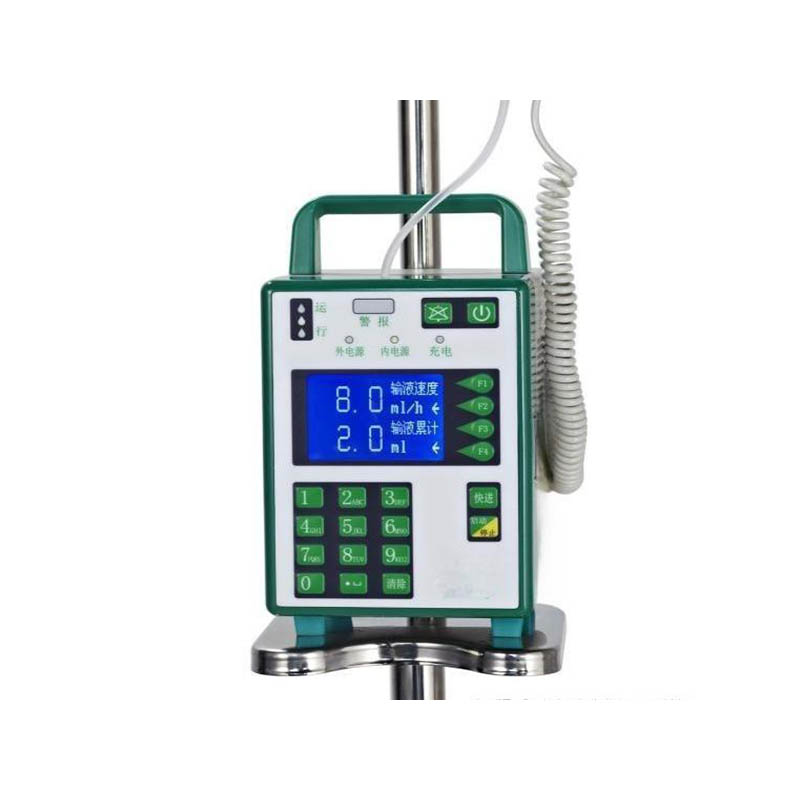

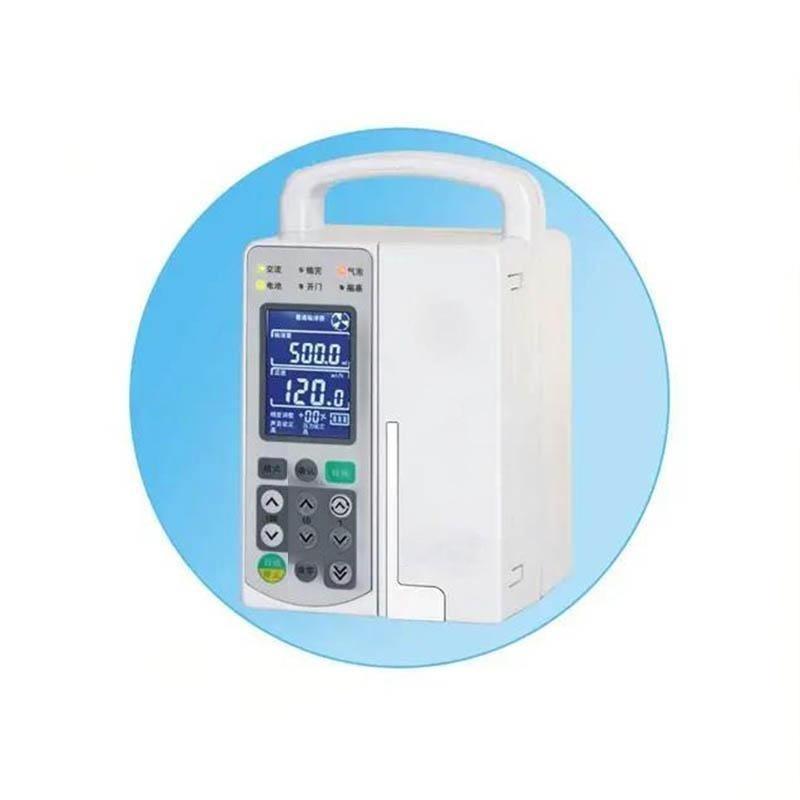

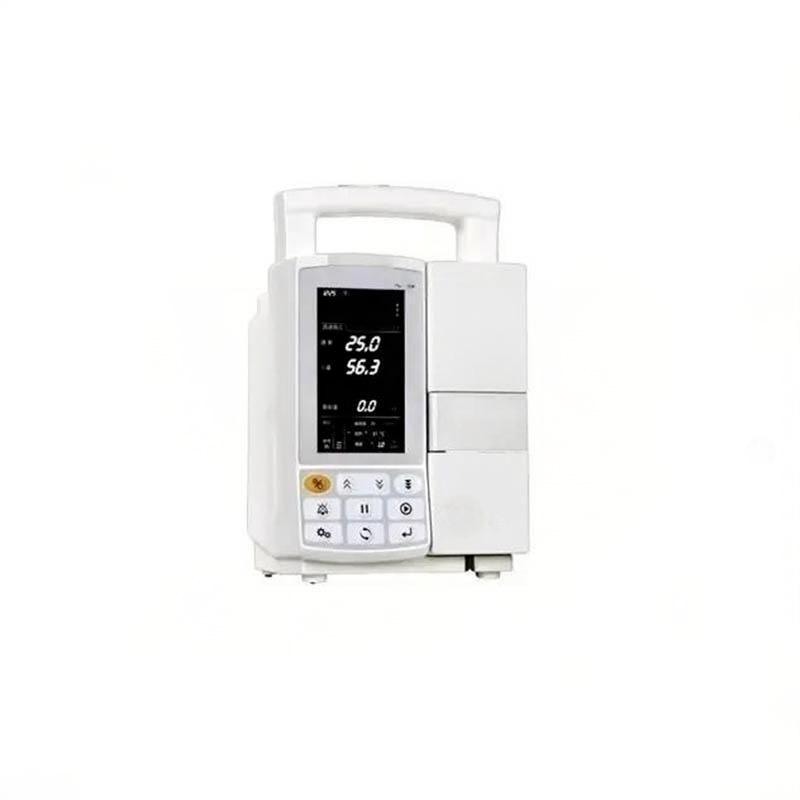

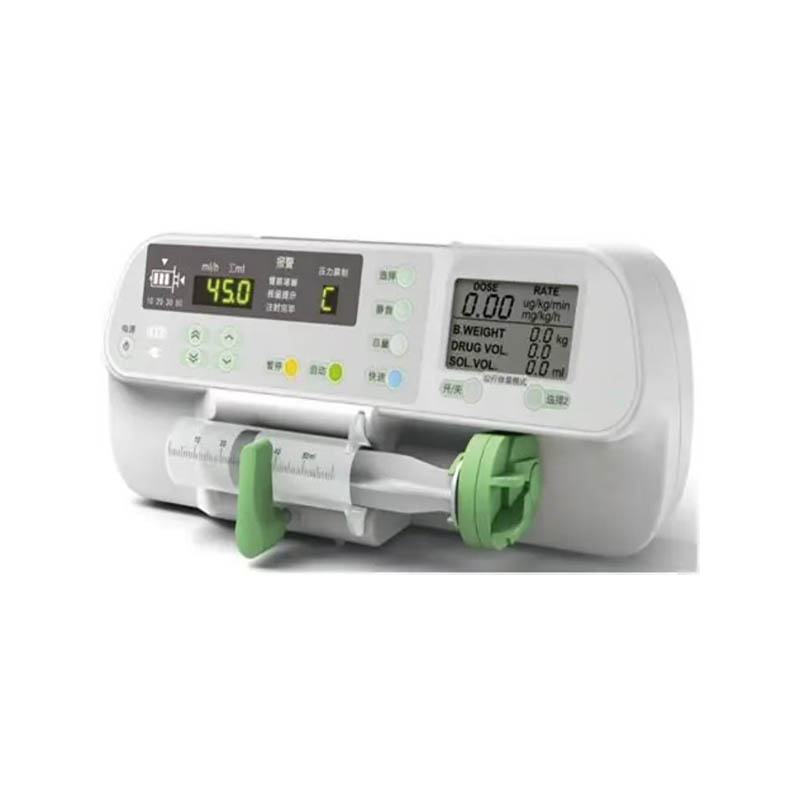

LCDs for Medical Electronic Infusion Pumps
An electronic infusion pump is a precision device widely used in the medical field. Its human-machine interface (HMI) typically utilizes Segment LCDs, Dot Matrix LCDs, or TFT LCDs. Among these, Segment LCDs are the most commonly used in infusion pumps. Segment LCDs offer advantages such as low cost, low power consumption, and high reliability, making them highly suitable for displaying critical parameters like flow rate and volume, which are often numerical values or fixed symbols.
LCDs for Medical Electronic Infusion Pumps
Conventional requirements for Segment LCDs used in electronic infusion pumps include:
Typically incorporating a backlight to ensure clear visibility in dark environments.
Wide viewing angles, allowing medical staff and patients to read the display from various positions.
Low power consumption, crucial as many devices are battery-operated.
Readability under strong light, often requiring anti-glare treatment for the LCD screen.
Some electronic infusion pumps require touch screen functionality. EASTERN DISPLAY can provide both built-in touch and external film touch solutions. For models requiring color displays, we offer color implementation via color silkscreen printing or color filters.
Our products support various connection methods, including HEAT SEAL, ZEBRA connectors, Metal pins, and FPC. Custom shapes (e.g., circular, polygonal) are also available.
All our products comply with ROHS and REACH substance standards. The performance and reliability of our products are recognized by medical device manufacturers such as Omron. EASTERN DISPLAY is a certified supplier to Omron.
| Manufacturer | EASTERN DISPLAY |
| Connection method | FPC/ Metal pins Custom |
| Product model | HTN/STN/FSTN/VA Custom |
| Viewing angle direction | Customizable/Can be viewed in full perspective |
| Operating voltage | 2.7V-5V Custom |
| Viewing angle range | 150-180° |
| Special shape | Custom |
| Number of drive paths | Custom |
| Translucent type | Custom |
| Backlight type/color | Custom |
| Operating temperature | -40--90℃ |
| Storage temperature | -45--90℃ |
| Visible under strong light | Custom |
| Screen printing / color film | Custom |
| Service life | 100,000 hours |
| Keywords: STN LCD, FSTN LCD, VA LCD, Wide Temperature Range, Custom Segment Display, High Contrast LCD, Lightweight LCD, Bright Light Viewing, Small LCD Display, LCD Glass, Segment LCD, Transparent LCD, Arduino LCD, Hydroshift LCD | |
Product description: This product is a high-definition large-size TFT screen, resolut...
This product is a 240128 LCD dot matrix display that can display graphics with 240 columns x 128 rows of pixels. The display uses STN yellow-green mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip, adopts COB and SMT production processes, and is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts.
Segment LCDs are widely used in fishing equipment, serving as the human-machine interface (HMI) display for devices such as smart fishing reels, fish finders, remote controls for bait boats, fishing scales, and fishing tackle boxes. Segment LCDs feature low cost, low power consumption, and high reliability, making them highly suitable for displaying critical parameters like numbers and fixed symbols.
This product is an LCD 20×4 character dot matrix display module designed for displaying ASCII characters, featuring 4 rows with 20 characters per line. The screen utilizes an STN yellow-green mode LED backlit LCD, displaying yellow-green background with black characters, offering high contrast and a wide viewing angle. The module incorporates the ST7066 universal character driver chip, adopts COB production technology, and connects to the main control MCU via an 8-bit parallel LCD interface, ensuring ease of use.
0.54-inch OLED display module is an ultra-compact, high-contrast solution designed for embedded systems and portable electronic devices. With a resolution of 96 x 32 pixels and an operating temperature range of -40 to 70°C, it enables clear information display within a minimal footprint. It is widely used in smart wearable devices, portable industrial instruments and meters, and controllers for small household appliances.
Product description: Industrial OLED Display module, resolution 128*64, I2C interface...
Product description: TFT LCD display screens are widely used in various commercial ve...
Product description: LCD 12864 is widely used in industrial instruments, industrial c...
VA LCD products are widely used in outdoor portable power solutions such as portable energy storage systems, household energy storage units, and RV power systems. The LCD screen digitally and accurately displays real-time parameters including power levels and wattage, interface status, safety alerts, charge-discharge management, and power consumption analysis. It serves as a key component in outdoor portable power products for visually presenting functions such as electricity usage planning, operational status, fault warnings, and power distribution. Furthermore, compared to TFT products, LCD segment displays offer significant cost advantages. The black background of VA LCDs also effectively supports the visually integrated design of portable power products.
Product description: Ultra-small size segment LCD is a display technology widely used...
This product is a custom segment code COG module, its display is TN LCD screen, using COG module process, integrated driver chip, LCD screen is reflective mode, connected to the main control MCU through the serial interface, the connection mode is PIN or FPC.This type of LCD module has a wide range of operating temperatures, low power consumption, thin and light structure, good display effect, stable performance and other characteristics.
This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses STN mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is thin and light, has low power consumption, and a wide temperature range. It is connected to the main control MCU through the SPI interface and is used to display various images and texts.
Portable energy storage devices. This product finds extensive applications ranging from the professional energy storage industry to everyday life. LCD screens are characterized by their light weight, strong environmental adaptability, low power consumption, high reliability, and low cost, making them typically the preferred solution for energy storage power supplies.
The VA-type display with glass cover is a high-reliability, high-contrast solution utilizing VA (Vertical Alignment) liquid crystal technology. It features a highly transparent and durable glass cover that supports screen printing of text or graphics. This product combines the superior optical performance of VA liquid crystals with the protective characteristics of glass cover materials, delivering clear and durable visual effects. It is suitable for industrial, medical, home appliance, and automotive electronics applications in harsh environments.
The Color Printing LCD Segment Display achieves monochrome, color, and gradient effects by applying ink to the surface of polarizers through screen printing or inkjet printing processes. It is widely used in industrial instruments, medical equipment, consumer electronics, and other fields.
Product description: 1.54 inch flexible oled display, resolution 128*64, parallel or ...
