The 128×64 dot matrix LCD module is one of the most commonly used monochrome display products. Its display types include STN positive display, STN negative display, FSTN positive display, and FSTN negative display. It is paired with white backlight or other monochrome backlights, offering various display modes such as gray background with blue/black characters, yellow-green background with blue/black characters, and blue background with white characters. The product features high contrast and a wide viewing angle. The module contains a driver chip and connects to the main control MCU via an SPI interface or an 8-bit parallel LCD interface. It is simple to use, offers excellent display quality, and provides stable performance. It can display graphics and multiple lines of text, making it widely used in various arcade game machines.

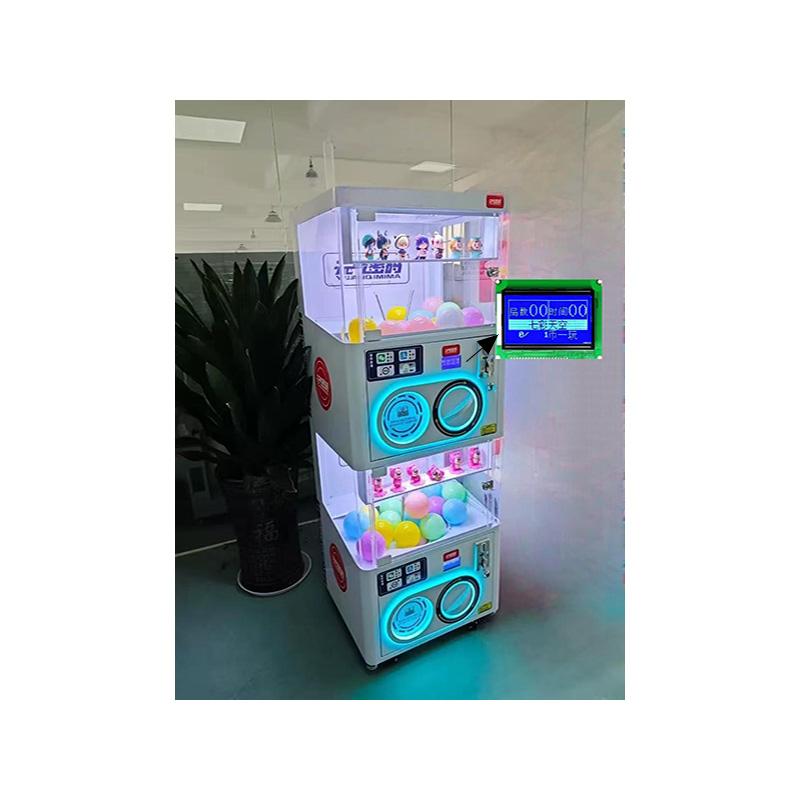

The 128x64 dot matrix LCD module can display graphics and multiple lines of text. It features high contrast, a wide viewing angle, and stable performance, making it widely used in various arcade game machines such as claw machines, gacha machines, pinball machines, scissor machines, grabber machines, prize dispensers, coin pushers, pachinko machines, and fruit machines.

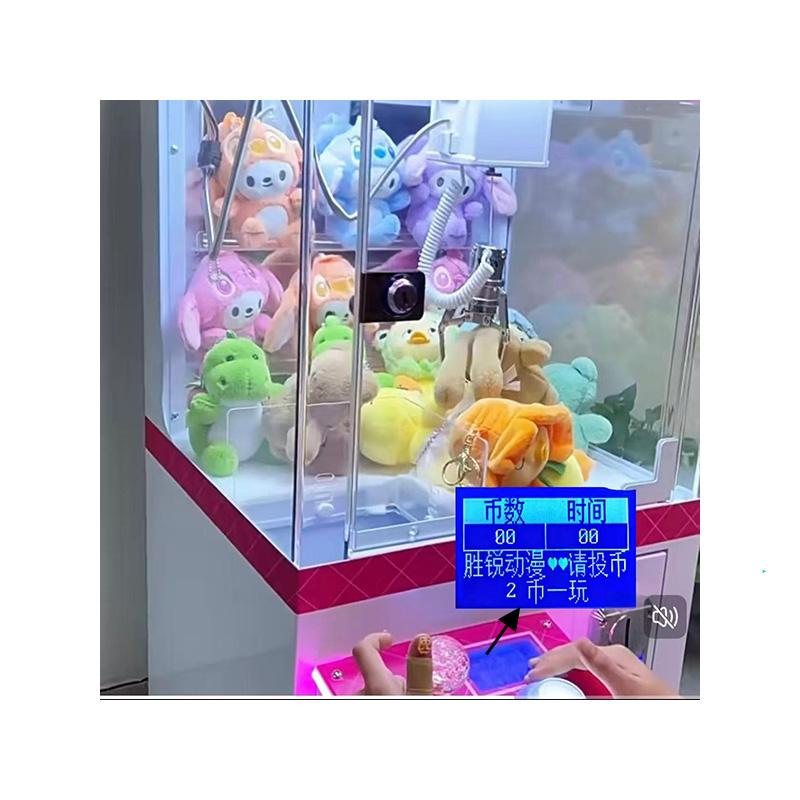

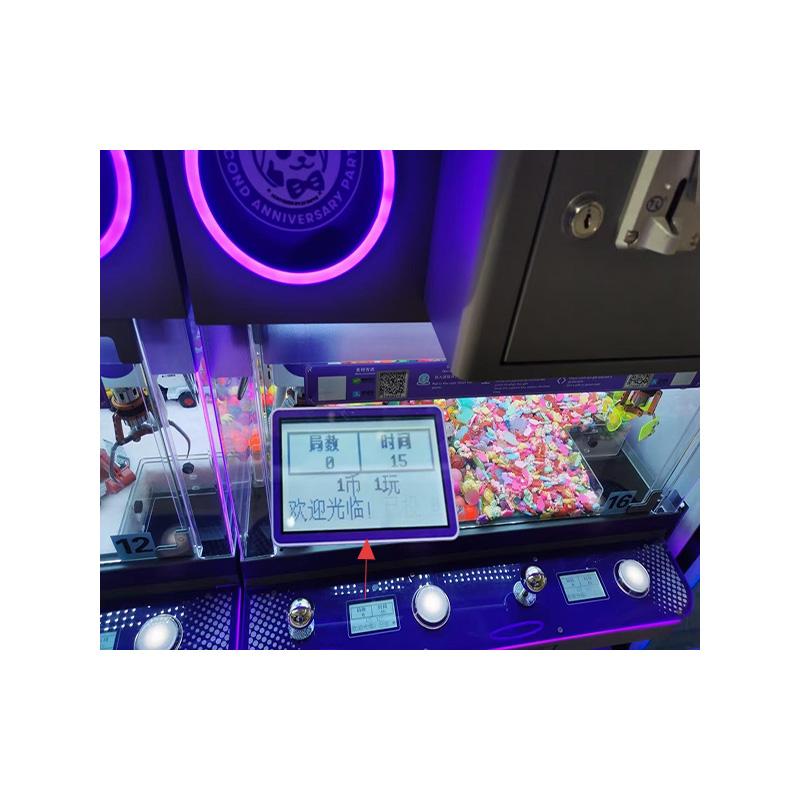

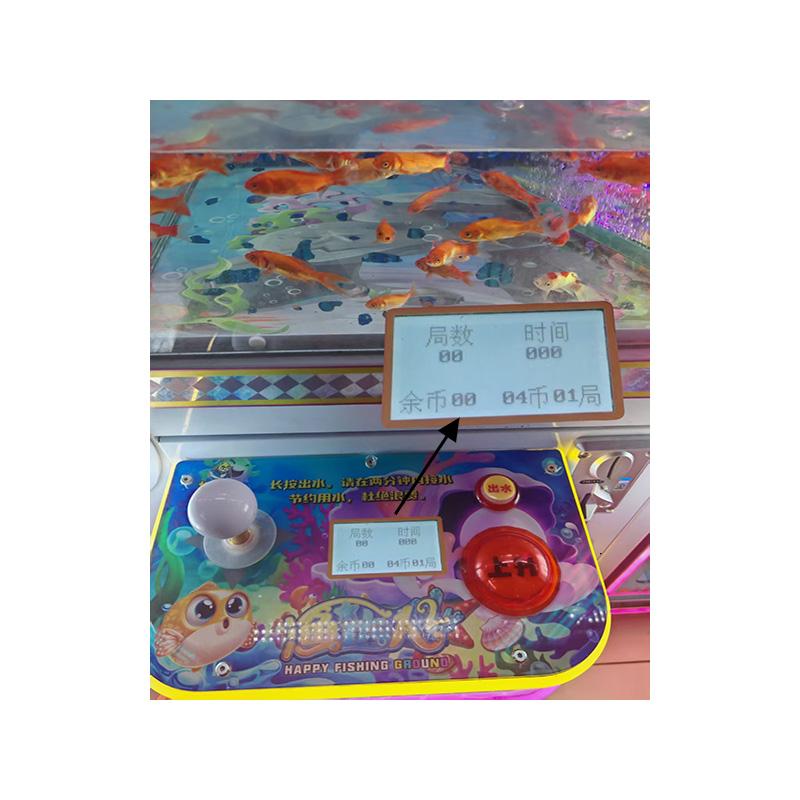

Arcade machines equipped with this dot matrix LCD module can play demonstration animations, game logos, and game rules on the screen during standby mode. When a player inserts a coin, it can display operation prompts such as "Move" or "Drop Claw". During control, on-screen indicator arrows or coordinates may change accordingly. Throughout the gameplay, the screen displays real-time information such as "Time Remaining", "Operation Prompt", and "Current Score". After the operation is completed, the screen displays congratulatory messages like "Congratulations! You Win!" or encouraging words like "Try Again".
The dot matrix LCD module can also intuitively display equipment status, network connection status, and error codes, such as "Normal Operation", "Maintenance Required", "Network Disconnected", or specific error codes. This greatly simplifies daily inspection and maintenance diagnosis procedures, significantly reducing maintenance efforts. Simultaneously, it serves as an efficient advertising space, capable of being updated remotely to push the latest event information and promotional offers.
| Manufacturer | EASTERN DISPLAY |
| Product model | 12864/Custom LCD |
| Display content | 128x64 |
| Display color | Yellow-Green/Blue-White/Gray-Black |
| Interface | SPI interface LCD/parallel interface LCD |
| Driver chip model | LCD controller custom |
| Production process | COG LCD Module/COB LCM |
| Connection method | PIN/FPC |
| Display type | STN/FSTN LCD，Positive/Negative |
| View angle | 6 O'clock |
| Operating voltage | 5V |
| Backlight type | LED backlit |
| Backlight color | White /Yellow-green LCD backlight |
| Operating temperature | -20~70℃ |
| Storage temperature | -30~80℃ |
| Keywords：Dot matrix LCD/ FSTN LCD/STN LCD/LED backlight LCD/Custom LCD display/LCD display module/LCD module/12864 LCD | |
