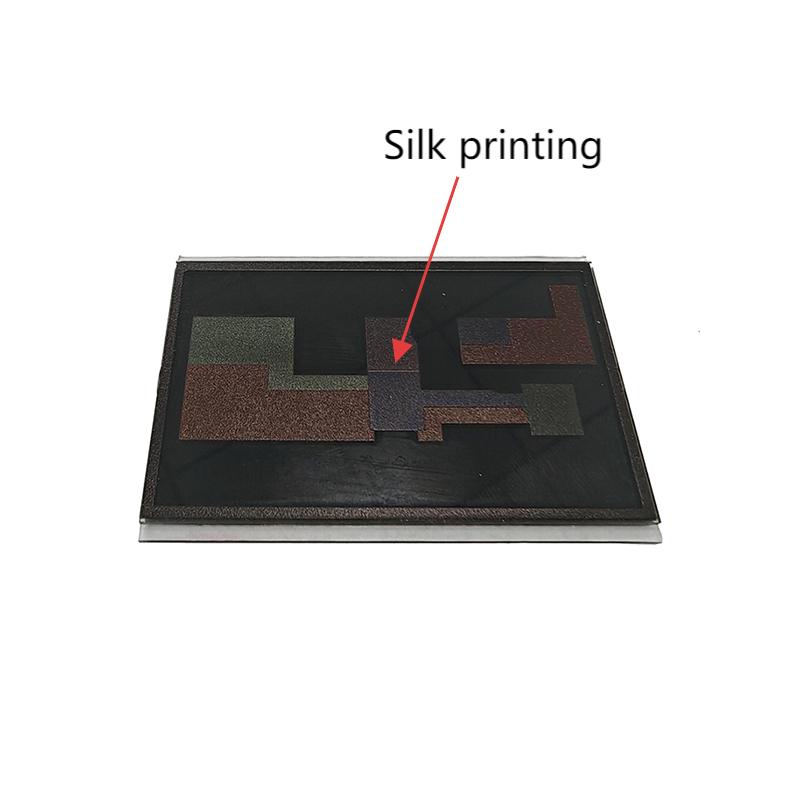

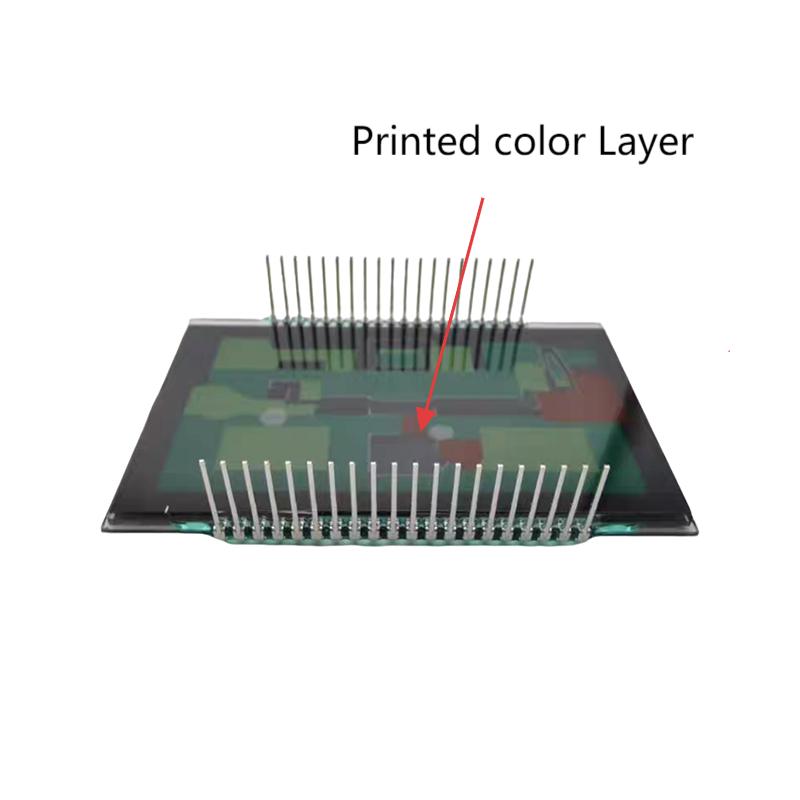

Segment LCD are widely used. For some product application scenarios, it is necessary to enhance display recognition and improve aesthetic appeal. By employing screen printing or the application of colored films onto the LCD surface, a monochrome LCD can achieve multi-color effects under low-cost conditions.

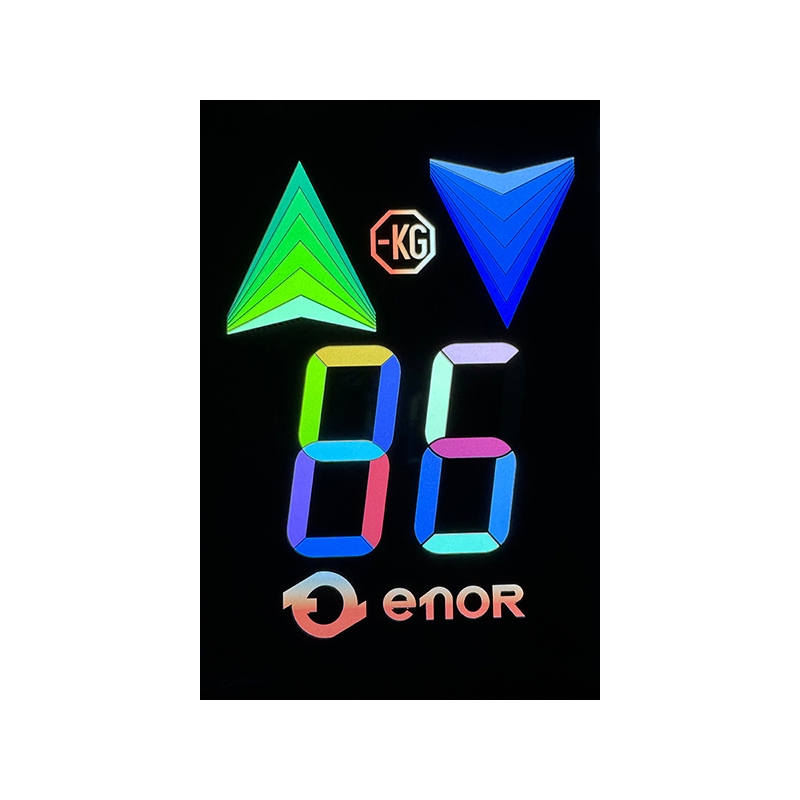

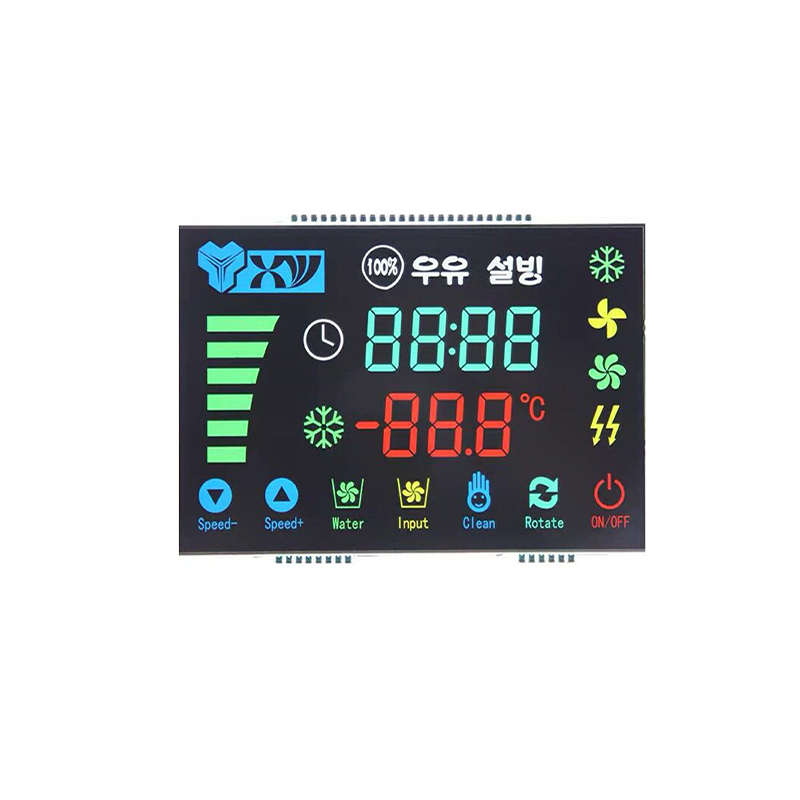

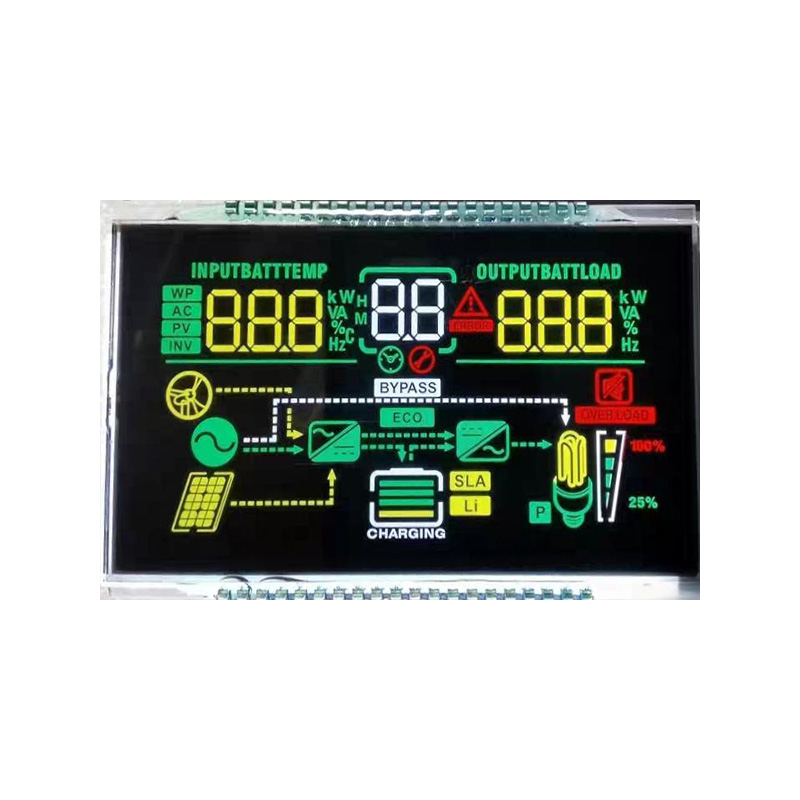

Multi-color silk printing products are typically realized through processes such as screen printing, inkjet printing, and film lamination. Color registration accuracy can reach ±0.1 mm. Customers can customize colors according to PANTONE codes, with no upper limit on the number of colors. Gradient color effects are also achievable, presenting color effects similar to TFT displays, but at a cost significantly lower than TFT. The shape and size of the multi-color silk printed LCD screen can also be customized. Its other performance characteristics are completely consistent with standard segment LCD. It can pass stringent high-intensity environmental tests such as the Dual 85 test, and meets the parameter requirements for applications in industrial, medical, automotive, home appliance, and other fields. All products comply with the ROHS 2.0 directive and REACH regulations.
| Manufacturer | EASTERN DISPLAY |
| Connection method | FPC/ Pins |
| Product model | TN/HTN/VA |
| Viewing angle | 6：00/12：00 |
| Operating voltage | 3V-5V |
| Viewing angle range | 120-180° |
| Special shape | Yes |
| Drive duty | 1/4 |
| Backlight type/color | White |
| Operating temperature | -20--80℃ |
| Storage temperature | -30--85℃ |
| Visible under strong light | Yes |
| Life time | 100000Hours |
Key words：STN LCD/FSTN LCD/VA LCD/High Durability LCD //Custom segment display/High contrast LCD/Small LCD display/LCD glass/Segment LCD/Transparent LCD/holder LCD
