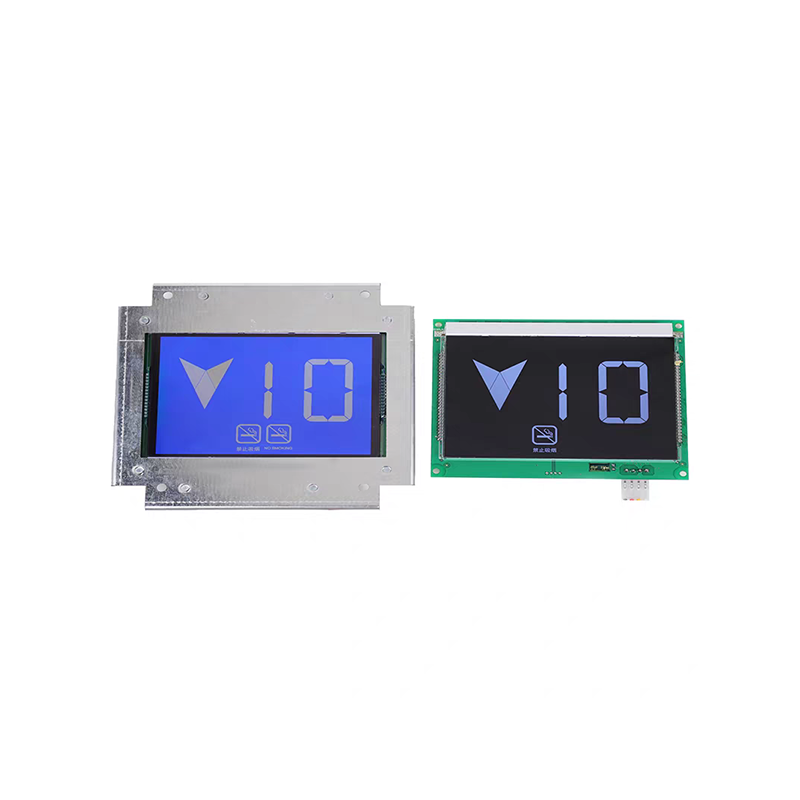

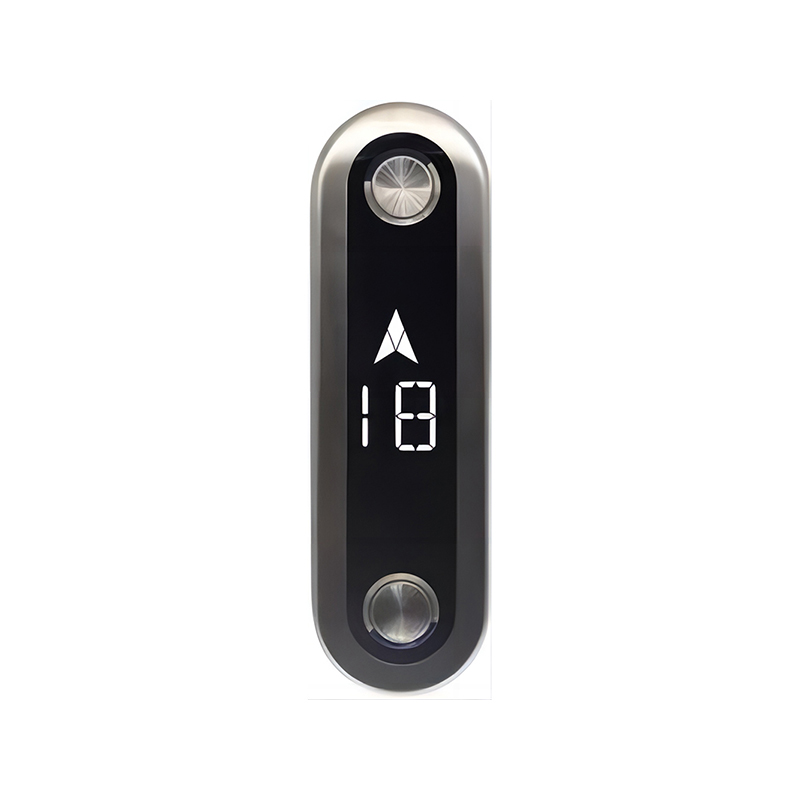

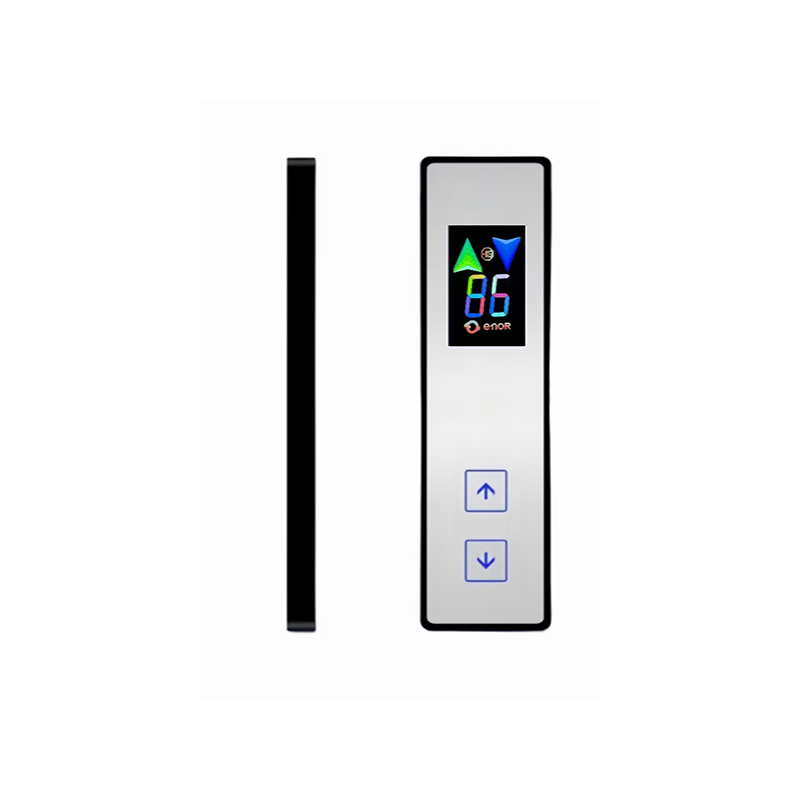

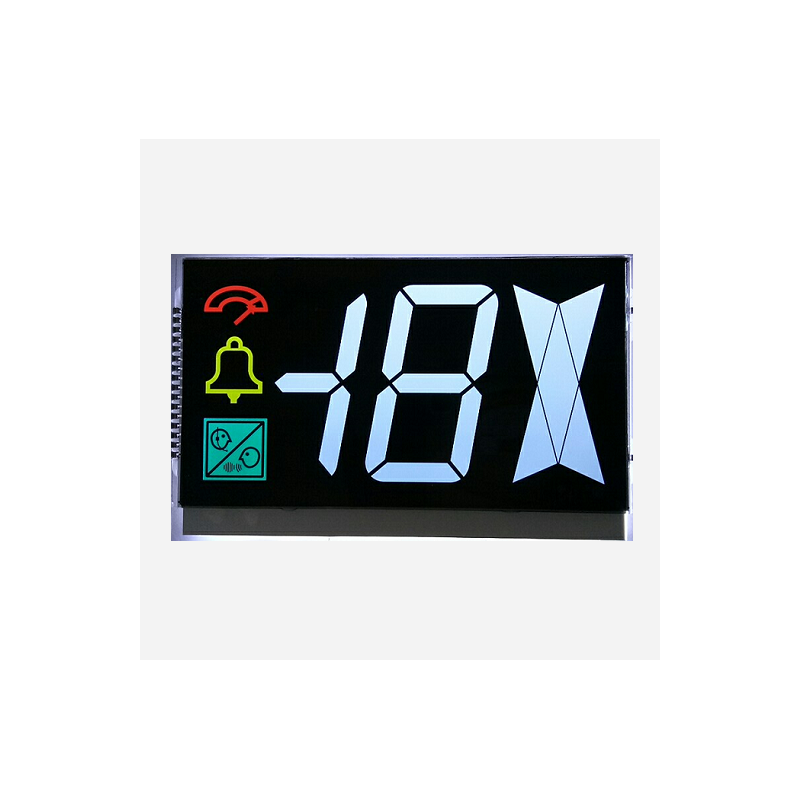

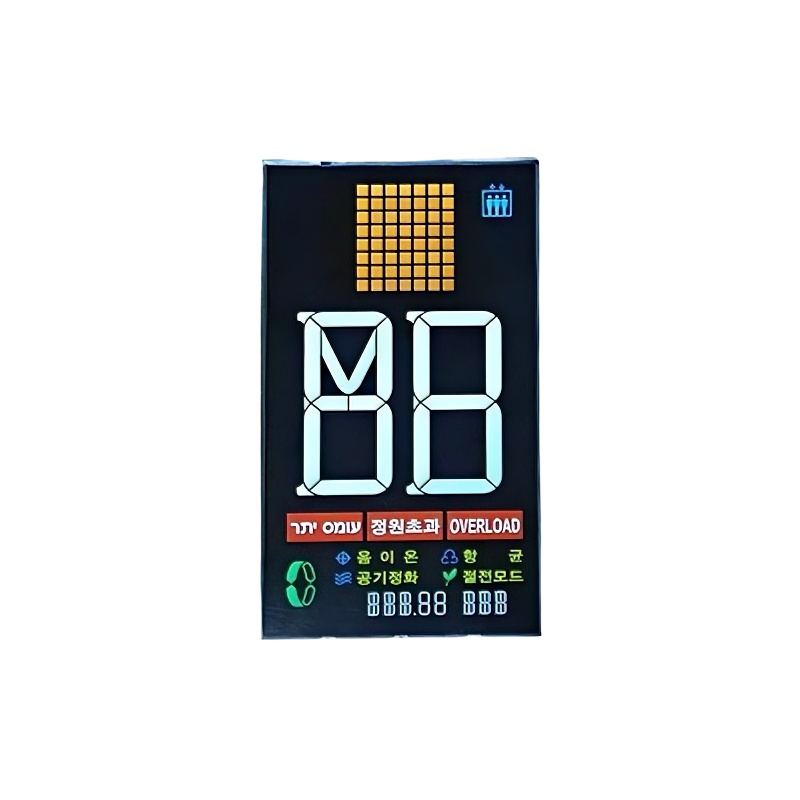

The Negative LCD series is widely used in elevator applications such as floor indicator panels, hall call display panels, car operation panels, LCD information panels, horizontal display panels, and monochrome LCD modules. Among these, the three most representative display modes are white characters on a blue background, white characters on a black background, and colored characters on a black background. The LCD segment display is employed to show the current floor number, indicate the direction of elevator movement, confirm selected floors, display overload warnings, provide arrival notifications, and respond to passenger calls by indicating operational statuses such as “Up,” “Down,” or “Stopping.” Additionally, touch-sensitive functionality can be integrated to meet human-machine interaction needs during elevator operation.
EASTERN DISPLAY supplies thousands of custom LCD display models to customers in North America, Europe, East Asia, and other regions, with an annual supply of VA LCD exceeding one million units. Our products comply with the EU RoHS and REACH standards. Leveraging years of product development and manufacturing experience in serving clients from the industrial instrumentation, industrial control equipment, and communication equipment sectors, we have accumulated profound technical expertise in product design, core parameters, and addressing customer concerns. This enables us to consistently provide high-quality, highly reliable VA LCD to our customers.
| Manufacturer | EASTERN DISPLAY |
| Display mode | NEGATIVE LCD |
| Viewing angle | 6/12 O’ CLOCK |
| Operating voltage | 3.0V ---5.0V |
| Viewing angle range | 120-180° |
| Connection | FPC/Pins |
| Driver chip model | / |
| Backlight type/color | / |
| Operating temperature | -40℃-70℃ |
| Storage temperature | -40℃-85℃ |
| Lifetime | 100,000 H |
| Multi-color | YES |
| Special shaped | YES |
| Product features | Gradient color |
Keywords：LCD segment display/custom LCD display/LCD screen/small LCD display/LCD display price/custom segment display/LCD glass/LCD display/LCD display panel/Low power LCD
Product description: HTN segment LCD is an improved product of TN segment LCD, with a...
Anti-static LCD screens are essential for automotive, industrial control, and mobile applications where LCD displays must withstand complex and dynamic environments with stringent electrostatic requirements—significantly higher than those for consumer electronics. Specific anti-static standards include contact discharge resistance typically rated at ±4kV, ±6kV, or ±8kV, while air discharge resistance ranges from ±8kV, ±15kV, to ±25kV.
Product description: This product is a mini TFT display with a resolution of 480*272,...
A special-shaped LCD is a liquid crystal display that breaks away from the traditional rectangular shape, designed in circular, curved, triangular, or other irregular forms to meet specific needs in specialized fields.
LCD segment displays are widely used, with some products deployed in extreme environments such as low temperature, high temperature, strong light, and high humidity. High-durability LCDs are designed to meet the demands of such harsh operating conditions.
An I2C OLED display with a resolution of 128*64 and an I2C interface. Driver IC: SSD1309. The product features ultra-low power consumption, ultra-high contrast and viewing Angle, and an ultra-wide operating temperature range of-40 to 70 degrees Celsius.
Product description: Liquid Crystal Light Valve is a technical device that uses the c...
This product is a mini OLED display with a resolution of 128×32 pixels, an I2C interface, and a brightness of 150cd/m². It operates within a temperature range of-40℃ to 70℃ and features ultra-low power consumption, high contrast, and a wide viewing angle. The display content is clear and prominent. It is widely used in applications such as pulse oximeters, paint film testers, flow meters, gas detectors, and temperature and humidity monitors.
Fast response optical valve LCD can quickly change the light transmission state after receiving the signal, the response speed can reach 0.1 milliseconds (100 times faster than human blink); the product is thin and light, can achieve 1.2mm thickness; the connection can be made into pins or FPC; can block infrared, ultraviolet.
Product description: This industrial-grade TFT display screen, with a resolution of 1...
Product description: Anti-UV LCD is a liquid crystal display specially designed to re...
This product is a 240160 LCD dot matrix display that can display graphics with 240 columns x 160 rows of pixels. The display uses FSTN mode LED backlit LCD, which displays blue and black characters on a gray background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is light and has low power consumption. It is connected to the main control MCU through SPI interface/I2C interface/Parallel LCD interface to display various images and texts. The product comes with a resistive LCD touch screen.
Product description: Segment LCD is widely used in industrial instruments, industrial...
Portable energy storage devices. This product finds extensive applications ranging from the professional energy storage industry to everyday life. LCD screens are characterized by their light weight, strong environmental adaptability, low power consumption, high reliability, and low cost, making them typically the preferred solution for energy storage power supplies.
This product is a high-resolution TFT screen, featuring an IPS full-viewing angle panel and LED backlight with 880 cd/m² brightness, ensuring clear visibility even in harsh lighting environments. It supports a wide operating temperature range of -30℃ to 85℃. Capacitive touch screen and tempered cover glass can be provided based on customer requirements. It is widely used in robotics displays, smart home appliance control terminals, medical equipment, and other fields.
Monochrome LCD screens in biosafety cabinets and medical transport cabinets are designed to monitor equipment status, display operational parameters, and support user interaction while meeting the specific requirements of biosafety environments. VA segment displays feature high contrast, wide viewing angles, and a broad temperature range, featuring fixed color icons (e.g., fans, alarm symbols) and numerical parameters. 192×64 dot matrix screens with STN negative display mode offer high contrast and wide viewing angles, supporting simple graphics (e.g., airflow diagrams) and multi-line text. These monochrome LCD screens prioritize functionality, reliability, and cost control in biosafety cabinets, making them suitable for mid-to-low-end models or scenarios where color accuracy is not critical.
