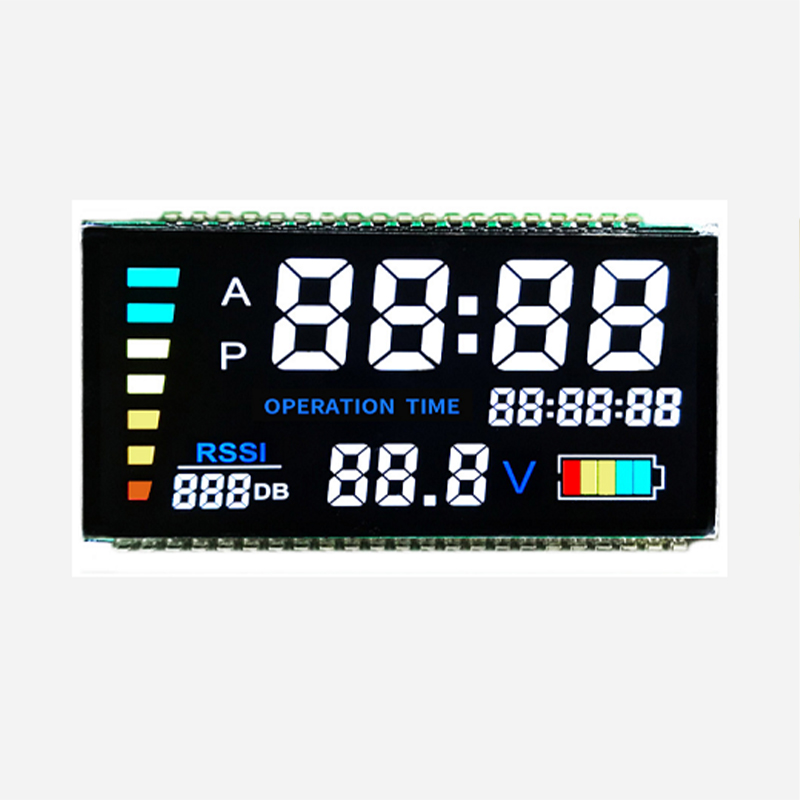

Product description: Negative Display LCD is a special liquid crystal display technology, and its display effect is opposite to that of traditional positive display LCD (Positive Display LCD). The background of negative display LCD is dark (usually black or dark gray), while the characters or images are displayed in light colors (such as white or light gray). This display method has significant advantages in specific scenarios, especially in outdoor or strong light environments, which can provide better visibility and contrast. Negative display LCD has higher contrast in strong light environments and is suitable for outdoor use, such as car dashboards, outdoor advertising screens,...
Negative Display LCD is a special liquid crystal display technology, and its display effect is opposite to that of traditional positive display LCD (Positive Display LCD). The background of negative display LCD is dark (usually black or dark gray), while the characters or images are displayed in light colors (such as white or light gray). This display method has significant advantages in specific scenarios, especially in outdoor or strong light environments, which can provide better visibility and contrast.

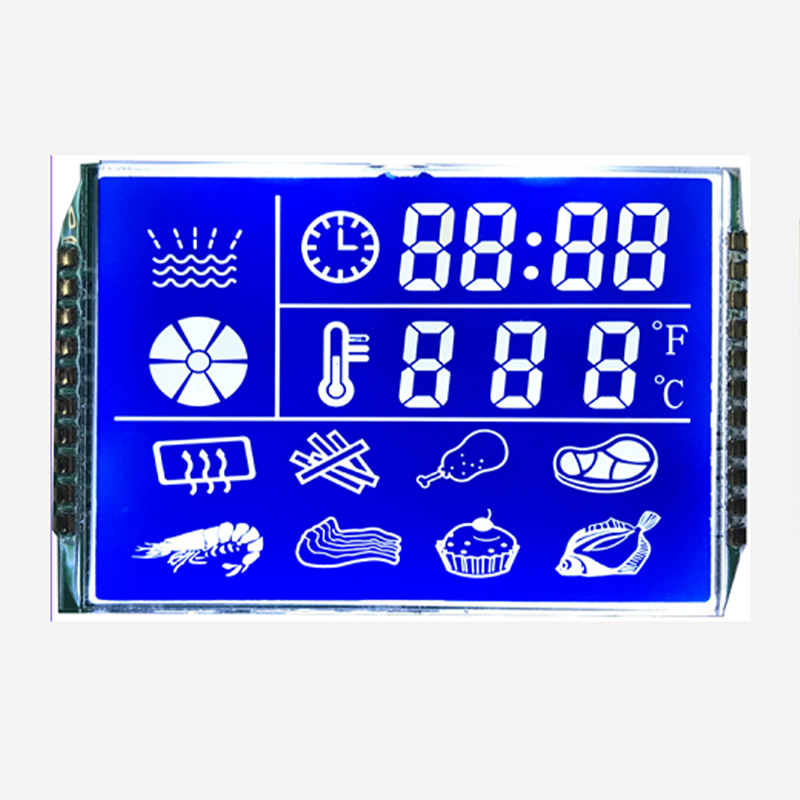

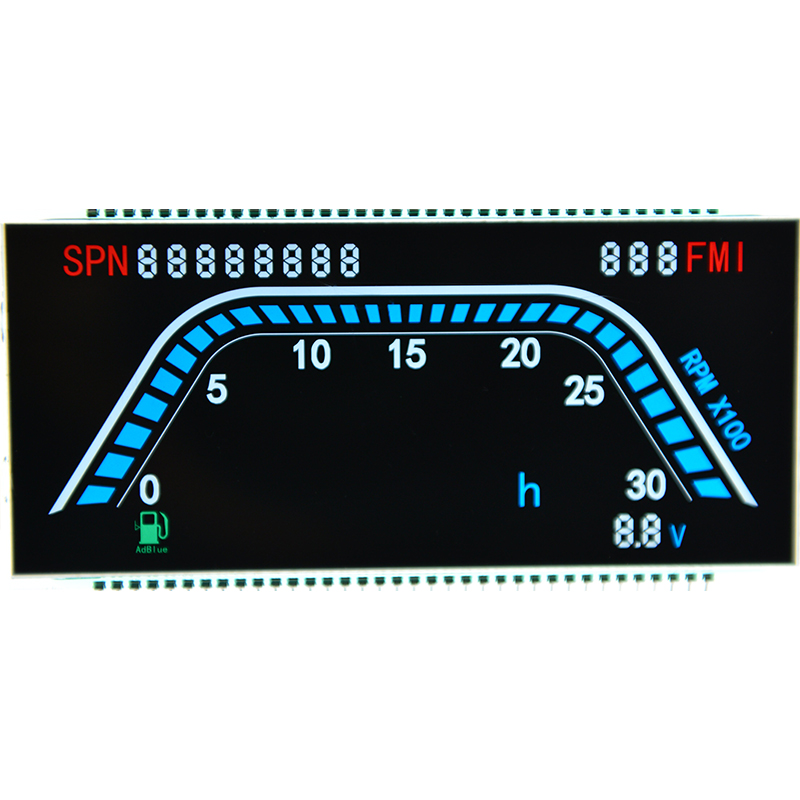

Negative display LCD has higher contrast in strong light environments and is suitable for outdoor use, such as car dashboards, outdoor advertising screens, etc. Due to the dark background, negative display LCD consumes less energy when displaying dark content, which is suitable for devices that need to run for a long time. Eye protection dark background reduces the overall brightness of the screen, which is less irritating to the eyes when viewed for a long time. NegativeVA LCD segment code screen displays black characters on a white background under white backlight, and with the corresponding silk screen color, it can present the effect of TFT color screen, and can replace TFT at low cost in many scenarios; it can be used in conjunction with TFT screen, and is widely used in automobiles and home appliances. TN LCD/HTN LCD/STN LCD negative display products are white characters on a blue background under white backlight, and can also be combined with color silk screen and film to present color characters on a blue background, and are used in home appliances and sports medical equipment. Our company can provide segment code LCD, COG LCD module, COB LCD module, and product standards meet ROHS and REACH requirements.
| Manufacturer | EASTERN DISPLAY |
| Contrast | ＞100 |
| Connection method | PIN/FPC/ZEBRA |
| Display type | Negative |
| Viewing angle direction | 6 0’ CLOCK (customizable) |
| Operating voltage | 2.5V-5V Custom |
| Viewing angle range | 120° |
| Number of drive paths | STATIC/ MULTI DUTY |
| Backlight type/color | Custom |
| Display color | Custom |
| Transmittance type | Transmissive |
| Operating temperature | -45-90℃ |
| Storage temperature | -50-90℃ |
| Service life | 100,000-200,000 hours |
| UV resistance | YES |
| Power consumption | Microampere level |
Product description: This product is an automotive instrument tft display, with a res...
Product description: This product is an industrial TFT display with a resolution of 8...
Product description: Industrial OLED Display module, resolution 128*64, I2C interface...
This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses an STN mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip and uses a COG production process. The product is thin and light, has ultra-low power consumption, and a wide temperature range. It is connected to the main control MCU via the SPI interface and is used to display various images and texts.
Product description: TN LCD is widely used in industrial instruments, industrial cont...
Product description: This product is a mini tft display with a resolution of 800*480,...
Product description: This product is a mini OLED display with a resolution of 128*64,...
Product description: STN LCD type is widely used in industrial instruments, industria...
Product description: Ultra-small size segment LCD is a display technology widely used...
Fast response optical valve LCD can quickly change the light transmission state after receiving the signal, the response speed can reach 0.1 milliseconds (100 times faster than human blink); the product is thin and light, can achieve a thickness of 1.2 mm; the connection can be made into pins or FPC; can block infrared, ultraviolet.
Product description: TN products are widely used, cost-effective, wide temperature, U...
This product is a 240128 LCD dot matrix display that can display graphics with 240 columns x 128 rows of pixels. The display uses STN yellow-green mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip, adopts COB and SMT production processes, and is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts.
Product description: 7 inch tft display uses automotive-grade LCD and backlight mater...
Product description: STN LCD type is widely used in industrial instruments, industria...
Product description: Super-large segment screens usually refer to LCD segment screens...
This product is an LCD 20×4 character dot matrix display module, which is used for ASCII character display, with 4 lines and 20 characters per line. The display screen uses STN yellow-green mode LED backlit LCD, which displays black characters on a yellow-green background, with high contrast and wide viewing angle. The module contains the ST7066 universal character driver chip, adopts COB production technology, and is connected to the main control MCU through an 8-bit parallel LCD interface, which is easy to use.
