Product description: mini oled display module, resolution 64*32, I2C interface, ultra-low power consumption, ultra-high contrast and viewing angle, ultra-wide operating temperature -40 to 70 degrees Celsius. EASTERN DISPLAY provides small and medium-sized OLEDs for domestic and foreign customers, with a variety of display colors to choose from, including white OLED, yellow OLED, red OLED, blue OLED, and circular OLED. FPC plug-in and welding are optional. The plug-in can be directly welded to the PCB for use without a connector, which is stable and reliable. All materials meet the environmental protection requirements of RoHS standards and are widely used in fire water cannons, sm...

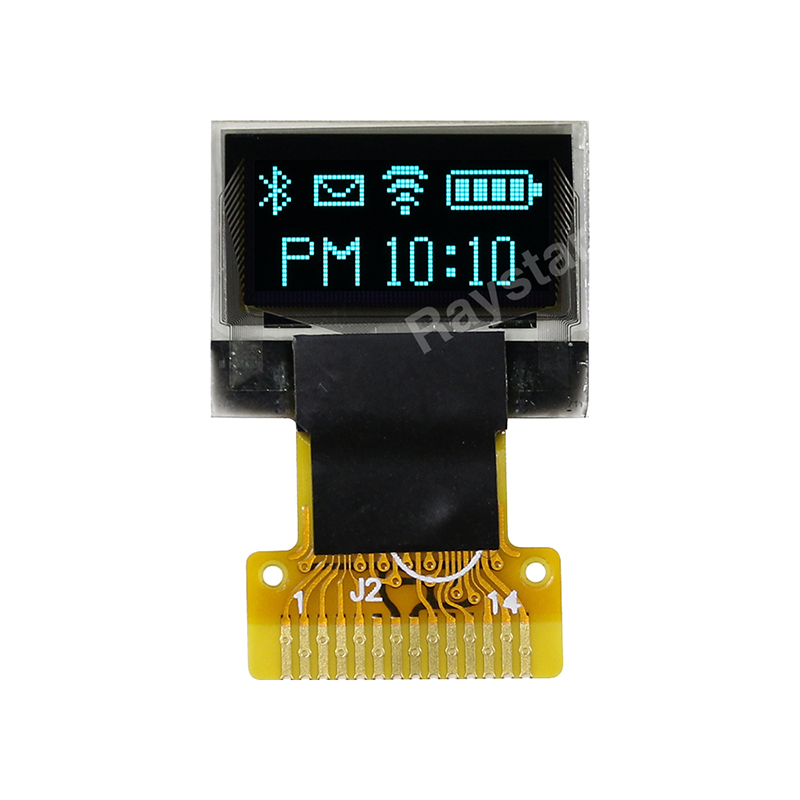

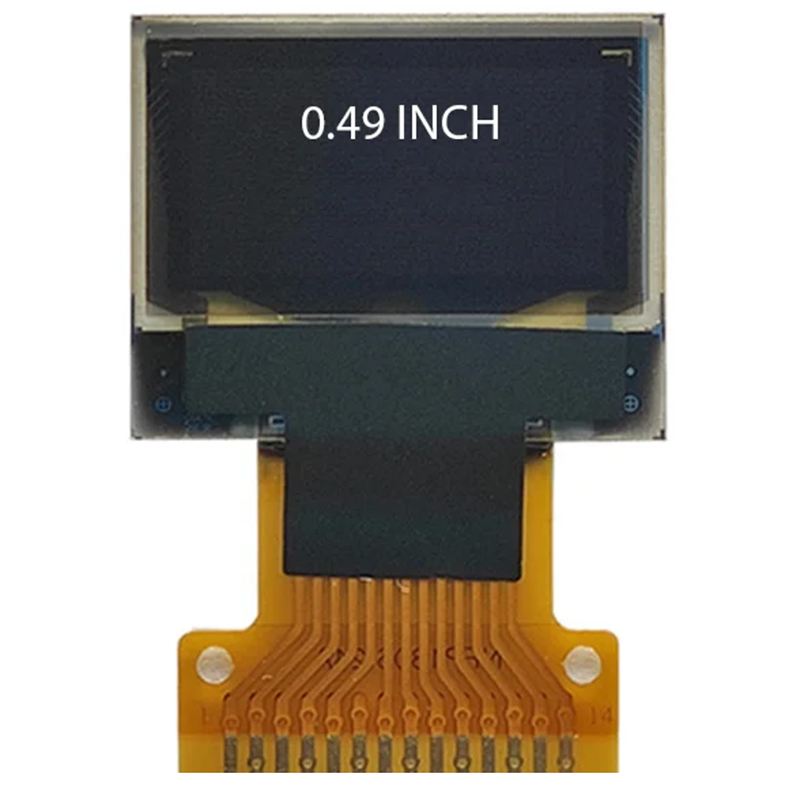

mini oled display module, resolution 64*32, I2C interface, ultra-low power consumption, ultra-high contrast and viewing angle, ultra-wide operating temperature -40 to 70 degrees Celsius.
EASTERN DISPLAY provides small and medium-sized OLEDs for domestic and foreign customers, with a variety of display colors to choose from, including white OLED, yellow OLED, red OLED, blue OLED, and circular OLED. FPC plug-in and welding are optional. The plug-in can be directly welded to the PCB for use without a connector, which is stable and reliable. All materials meet the environmental protection requirements of RoHS standards and are widely used in fire water cannons, smart home appliances, various measuring instruments, smart devices, etc. ,
| Manufacturer | Eastern Display |
| Display type | OLED |
| Resolution | 64x32 |
| Display color | White/Blue |
| IC | SSD1306 |
| Dimensions | 14.5×11.6×1.2mm |
| Viewing area | 11.18×5.58mm |
| IC packaging | COG |
| Operating voltage | 1.65v-3.5v |
| Viewing range | Free |
| Interface | I²C interface |
| Brightness | 180cd/m2 |
| Connection method | FPC |
| Operating temperature | -40℃~70℃ |
| Storage temperature | -40℃~85℃ |
