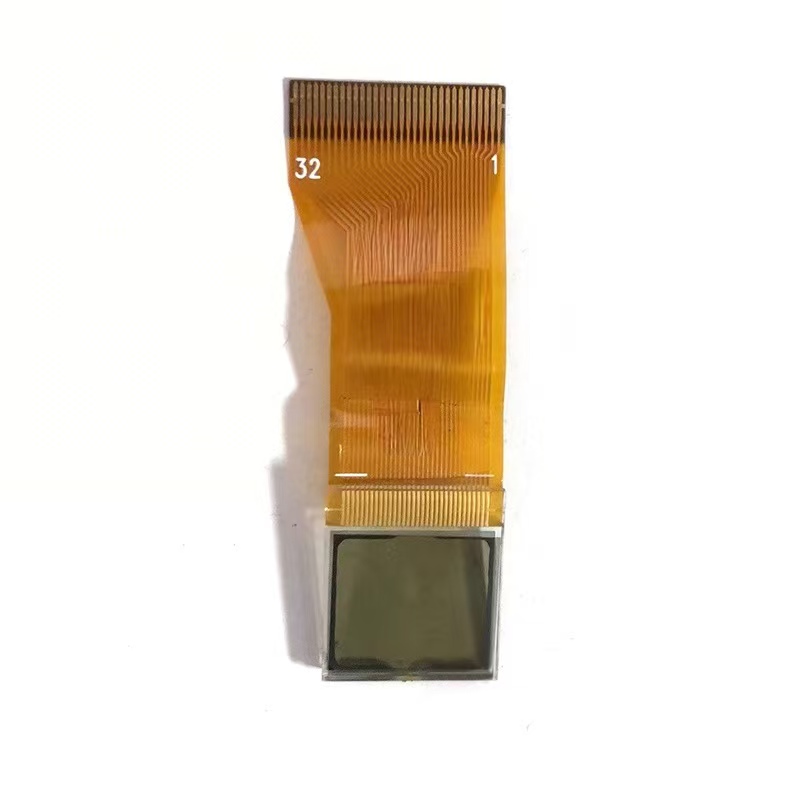

Product Description: The rangefinder-specific LCD is a lens-compatible LCD display featuring a compact size, high contrast, shock resistance, durability, and excellent environmental adaptability. It requires high display accuracy to meet magnification inspection requirements, with edges remaining smooth and free of burrs even after 50x magnification. The product’s small size necessitates specialized fixtures and equipment for bonding polarizing films or chips, as well as FPC pressing.
Product Description: The rangefinder-specific LCD is a lens-compatible LCD display featuring a compact size, high contrast, shock resistance, durability, and excellent environmental adaptability. It requires high display accuracy to meet magnification inspection requirements, with edges remaining smooth and free of burrs even after 50x magnification. The product's small size necessitates specialized fixtures and equipment for bonding polarizing films or chips, as well as FPC pressing.
Main Text: The rangefinder-specific LCD is applied in fields such as architectural surveying, firefighting, and industrial maintenance, and is also widely used in hunting binoculars or golf rangefinders. It places greater emphasis on miniaturization and low-power design, typically adopting a fully transparent structure. Categories include VA, TN, and STN, which can be connected via pins or FPC. It can also be configured as a COG (Chip on Glass) structure with a built-in driver chip.
| Manufacturer | EASTERN DISPLAY |
| Contrast Ratio | 80-200 |
| Connection Method | Customizable |
| Display Type | Customizable |
| Viewing Angle Direction | Customizable |
| Operating Voltage | 3V-5V Customizable |
| Viewing Angle Range | 120-140° |
| Drive Mode | STATIC/ MULTI DUTY |
| Backlight Type/Color | Customizable |
| Display Color | Customizable |
| Transmission Type | Transmissive Customizable |
| Operating Temperature | -40-85°C |
| Storage Temperature | -40-90°C |
| Service Life | 100,000-200,000 hours |
| UV Resistance | YES |
| Power Consumption | Microampere Level |
| Keywords | Rangefinder-Specific/ChiponGlass/High-Precision Display/VA/TN/STN |
This product is a 240128 LCD dot matrix display that can display graphics with 240 columns x 128 rows of pixels. The display uses STN Negative mode LED backlit LCD, displays white text on a blue background, and has high contrast and wide viewing angle. The module contains a driver chip, uses COB and SMT production processes, and is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts.
COG segment LCD (Chip-on-Glass Segment Liquid Crystal Display) is a liquid crystal display technology that directly binds the driver chip (IC) to a glass substrate. It has the characteristics of high integration, light weight, low power consumption and low cost.
