Product description: TFT LCD display screens are widely used in various commercial vehicles, passenger cars, engineering machinery, on-board instruments and other fields. They have the characteristics of rich display content, high definition, high brightness, long life, high reliability, etc. They can play videos and animation displays, and can display or record videos in real time with front and rear cameras. The product size ranges from 2.0 to 12.3 inches, and standard definition or high definition resolution can be selected. Special shape TFT can also be selected, such as: round tft display EASTERN DISPLAY has nearly 30 years of experience in the design and production of on-boa...
TFT LCD display screens are widely used in various commercial vehicles, passenger cars, engineering machinery, on-board instruments and other fields. They have the characteristics of rich display content, high definition, high brightness, long life, high reliability, etc. They can play videos and animation displays, and can display or record videos in real time with front and rear cameras. The product size ranges from 2.0 to 12.3 inches, and standard definition or high definition resolution can be selected. Special shape TFT can also be selected, such as: round tft display
EASTERN DISPLAY has nearly 30 years of experience in the design and production of on-board LCDs. The products meet the automotive grade LCDs and have passed ISO90001 and IATF16949 certifications. The products comply with EU ROHS and REACH standards. It is a strategic partner of commercial vehicles and passenger vehicles such as HAVAL, CHERY, LEAPMOTOR, GEELY, DFAC, Wuling Automobile, KING LONG, Yutong Bus, FAW, ZOOMLION-MAZ, SANY, etc.
| Manufacturer | EASTERN DISPLAY |
| LCD model | EDT768HSICH-06A |
| Resolution | 1024*768 |
| Interface | LVDS or i2c |
| Viewing angle | 6：00 |
| Operating voltage | 3.3V |
| Operating temperature | -40-85℃ |
| Storage temperature | -40-90℃ |
| Performance characteristics | Anti-glare, anti-vibration, long life, automotive grade LCD |
| LCD characteristics | High brightness TFT, Customized TFT, high resolution TFT |
| ROHS | Complies with |
| REACH | Complies with |

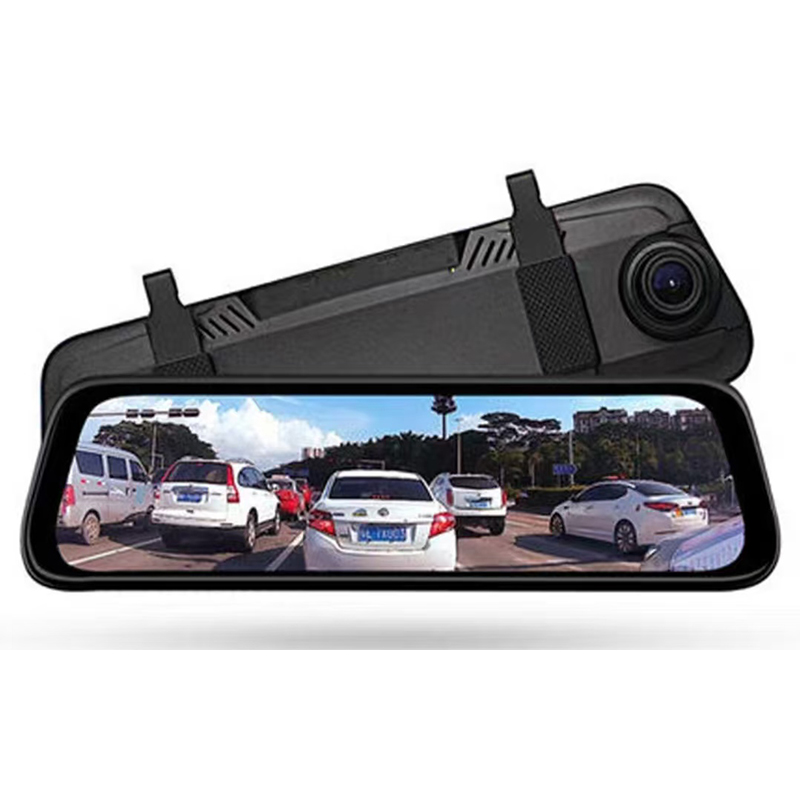

| Suitable application areas and scenarios | Car rearview mirror |
| Keywords:TFT display/custom tft display/7 inch tft display/spi tft display/tft display screen/mini tft display/5 inch tft display/3.5 tft display/4.3 inch tft display/tft display touch screen/tft lcd/tft lcd monitor/tft lcd display/tft lcd color monitor/TFT screen/tft screen monitor/tft screen touch/Customized TFT/3.5-inch TFT/ips tft display/10.1 tft display/2 inch tft display/colour tft display/tft screen monitor/OCA full lamination/tft display 5 inch/tft display module/lcd tft display module/tft display 3.5 inch/tft display 5 inch/3.5 tft screen/7 inch tft screen/tft display module/i2c tft display/2.4 inch tft display | |
Product description: Segment LCD is widely used in industrial instruments, industrial...
COG segment LCD (Chip-on-Glass Segment Liquid Crystal Display) is a liquid crystal display technology that directly binds the driver chip (IC) to a glass substrate. It has the characteristics of high integration, light weight, low power consumption and low cost.
This product is a 240160 LCD dot matrix display that can display graphics with 240 columns x 160 rows of pixels. The display uses FSTN mode LED backlit LCD, which displays blue and black characters on a gray background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is light and has low power consumption. It is connected to the main control MCU through SPI interface/I2C interface/Parallel LCD interface to display various images and texts. The product comes with a resistive LCD touch screen.
Product description: mini oled display module, resolution 64*32, I2C interface, ultra...
This product is an LCD 20×4 character dot matrix display module, which is used for ASCII character display, with 4 lines and 20 characters per line. The display screen uses STN yellow-green mode LED backlit LCD, which displays black characters on a yellow-green background, with high contrast and wide viewing angle. The module contains the ST7066 universal character driver chip, adopts COB production technology, and is connected to the main control MCU through an 8-bit parallel LCD interface, which is easy to use.
Product description: HTN LCD types are widely used in industrial instruments, industr...
This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses FSTN mode, displays blue and black characters on a gray background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is light and thin with low power consumption. It is connected to the main control MCU through the SPI interface or 8-bit parallel LCD interface to display various images and texts.
Product description: This product is a mini TFT display with a resolution of 320*480,...
Product description: Low-power segment LCD is a display technology widely used in ele...
Product description: LCD 12864 is widely used in industrial instruments, industrial c...
Product description: This product is an industrial-grade TFT display with a resolutio...
Product description: TN LCD is widely used in industrial instruments, industrial cont...
This product is a 256104 LCD dot matrix display that can display graphics with 256 columns x 104 rows of pixels. The display uses ASTN Negative mode LED backlit LCD, which displays white text on a black background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology, which is thin and light with low power consumption. It is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts.
LED segment display products are widely used in medical instruments such as blood glucose meters,...
Product description: Fully transparent LCD segment code screen is a completely transp...
Product description: Liquid Crystal Light Valve is a technical device that uses the c...
