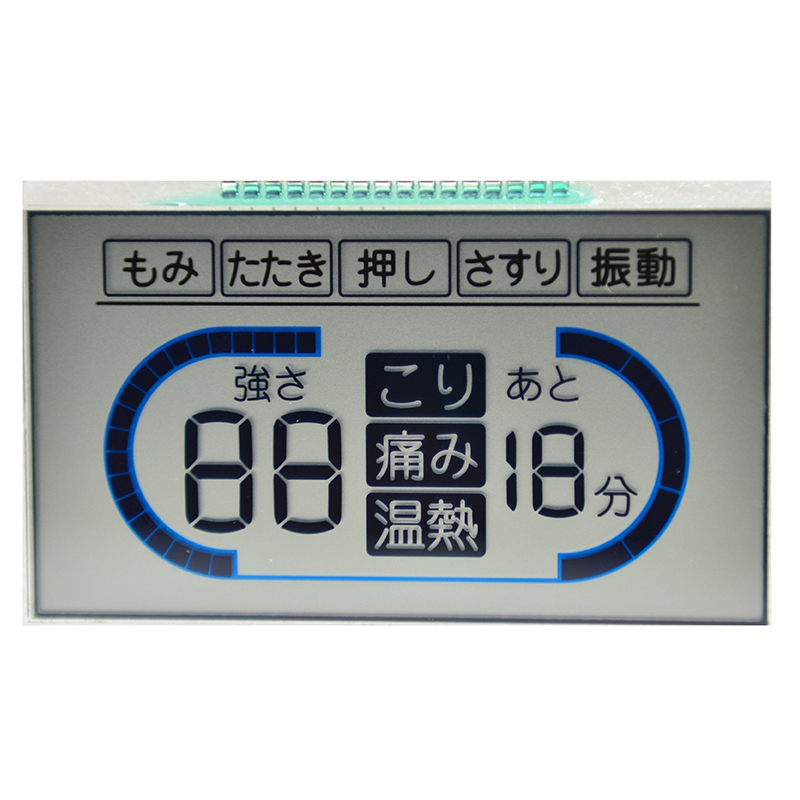

Screen-printed LCD segment code LCD screens are designed with monochrome or color patterns through screen printing or inkjet printing, and are widely used in instrumentation, medical equipment, consumer electronics and other fields. Its wear resistance, customizability and environmental protection make it the preferred display solution for many industries

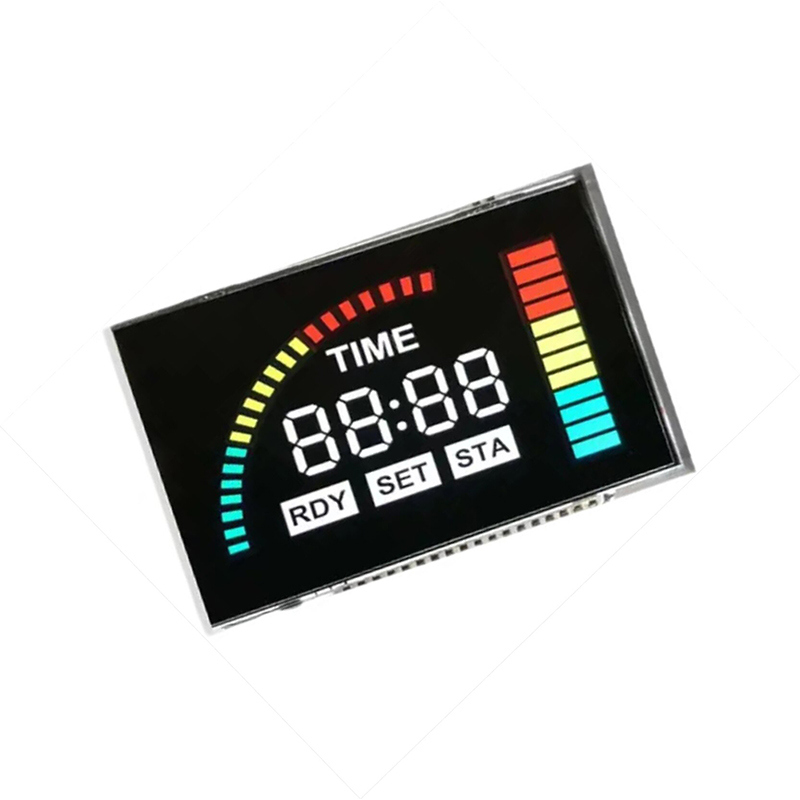

Silk-screen LCD segment code LCD screen is a process that transfers ink to the LCD screen through screen printing technology or inkjet printing to achieve specific patterns and colors. Our company can customize the color according to the color number and can achieve gradient colors. Silk-screen LCD products can improve the appearance and recognition of products. Silk-screen LCD is widely used in automotive products and medical devices. VA LCD with color silk-screen printing can show the display effect of TFT and can also be used in conjunction with TFT. The material standards of the product meet ROSH/REACH requirements.
| Manufacturer | EASTERN DISPLAY |
| Contrast | 10-120 Customized |
| Connection method | PIN/FPC/ZEBRA |
| Display type | Segment LCD /Negative/Positive Customized |
| Viewing angle direction | Customized |
| Operating voltage | 2.5V-5V |
| Viewing angle range | 20-150° |
| Number of drive paths | STATIC/ MULTI DUTY |
| Backlight type/color | Customized |
| Display color | Customized |
| Transmittance type | REFLECTIVE / Reflection /TRANSFLECTIVE Customized |
| Operating temperature | -40-80℃ |
| Storage temperature | -40-90℃ |
| Service life | 100,000-200,000 hours |
| UV resistance | YES |
| Power consumption | Microampere level |
Product description: Ultra-wide temperature LCD segment code screen is a kind of LCD ...
This product is a 320240 LCD dot matrix display that can display graphics with 320 columns x 240 rows of pixels. The display uses STN mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is thin and light, has ultra-low power consumption, and a wide temperature range. It is connected to the main control MCU through the SPI interface and is used to display various images and texts.
DFSTN (Double-layer Super Twisted Nematic) LCD is a super twisted nematic display technology based on a double-layer compensation film. The product needs to be used in conjunction with a backlight, has the characteristics of high contrast, wide viewing angle, and is suitable for dynamic display. It is widely used in medical equipment, industrial equipment, consumer electronics and other fields.
Product description: HTN LCD types are widely used in industrial instruments, industr...
This product is an LCD 20×4 character dot matrix display module, which is used for ASCII character display, with 4 lines and 20 characters per line. The display screen uses STN yellow-green mode LED backlit LCD, which displays black characters on a yellow-green background, with high contrast and wide viewing angle. The module contains the ST7066 universal character driver chip, adopts COB production technology, and is connected to the main control MCU through an 8-bit parallel LCD interface, which is easy to use.
Product description: TN products are widely used, cost-effective, wide temperature, U...
LED segment display products are widely used in medical instruments such as blood glucose meters,...
Product description: TN LCD is widely used in industrial instruments, industrial cont...
This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses FSTN mode, displays blue and black characters on a gray background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is light and thin with low power consumption. It is connected to the main control MCU through the SPI interface or 8-bit parallel LCD interface to display various images and texts.
This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses STN yellow-green mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip, adopts COB production technology, and is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts. The internal compensation circuit enables the module to achieve good display effects even when used in a wide temperature range.
Product description: Super-large segment screens usually refer to LCD segment screens...
FPC LCD stands for Flexible Printed Circuit LCD. FPC is also called flexible printed circuit board, soft board, or flexible circuit board. It can be used for LCD glass lead output connection without driver chip, or COG LCD connection. No welding is required, easy to install, and the product is lightweight.
VA LCD segment code products are upgraded products based on TN LCD technology. The contrast ratio can reach 120 and the wide temperature range is -45-90℃. The basic version of VALCD displays black background and white characters. If it is matched with the corresponding silk-screen color or color film, it can show the effect of TFT color screen and can also be used with TFT screen. It has micro-ampere low power consumption and can be powered by solar cells. Special shapes can meet customers’ special shape requirements.
This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses an STN mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip and uses a COG production process. The product is thin and light, has ultra-low power consumption, and a wide temperature range. It is connected to the main control MCU via the SPI interface and is used to display various images and texts.
Product description: The light source of the translucent LCD segment code LCD screen ...
Product description: STN LCD type is widely used in industrial instruments, industria...
