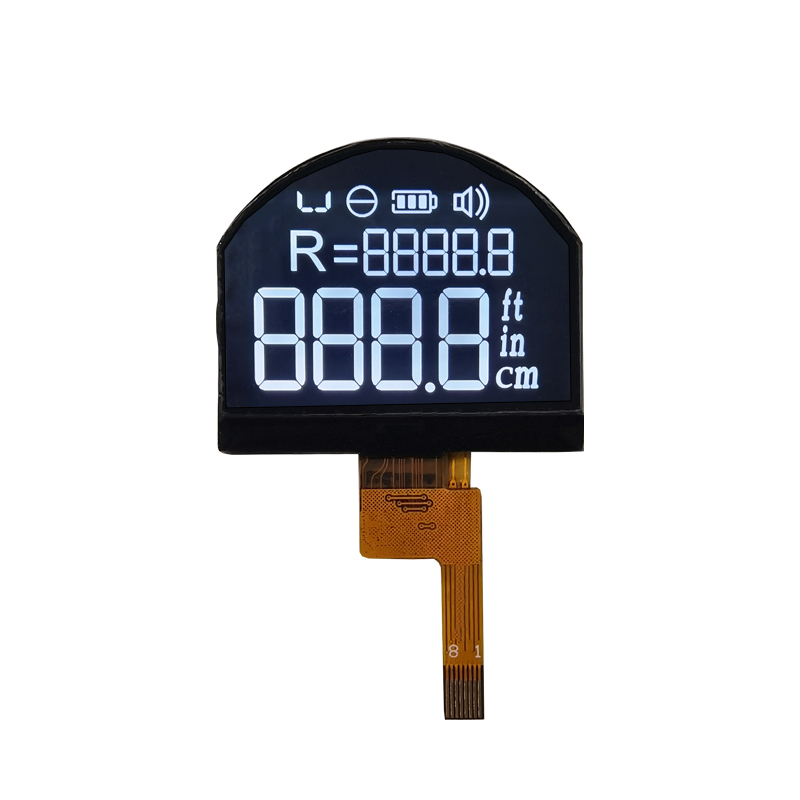

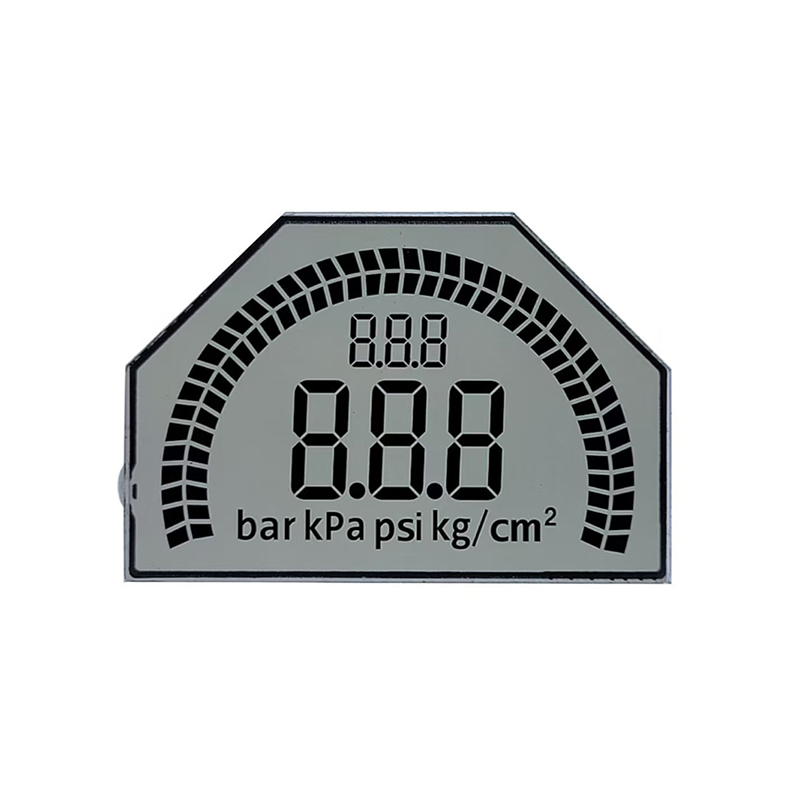

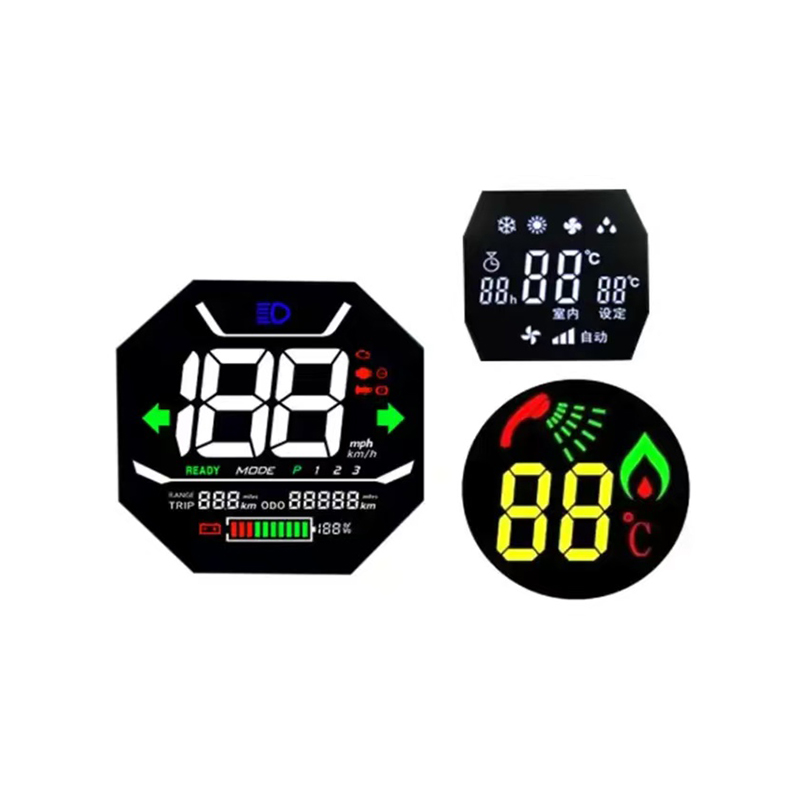

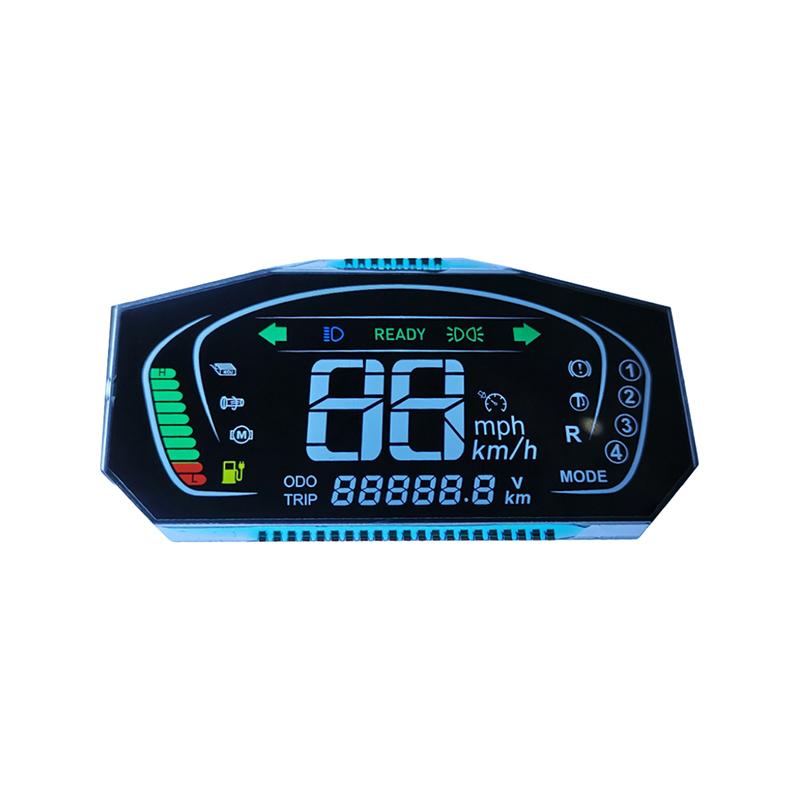

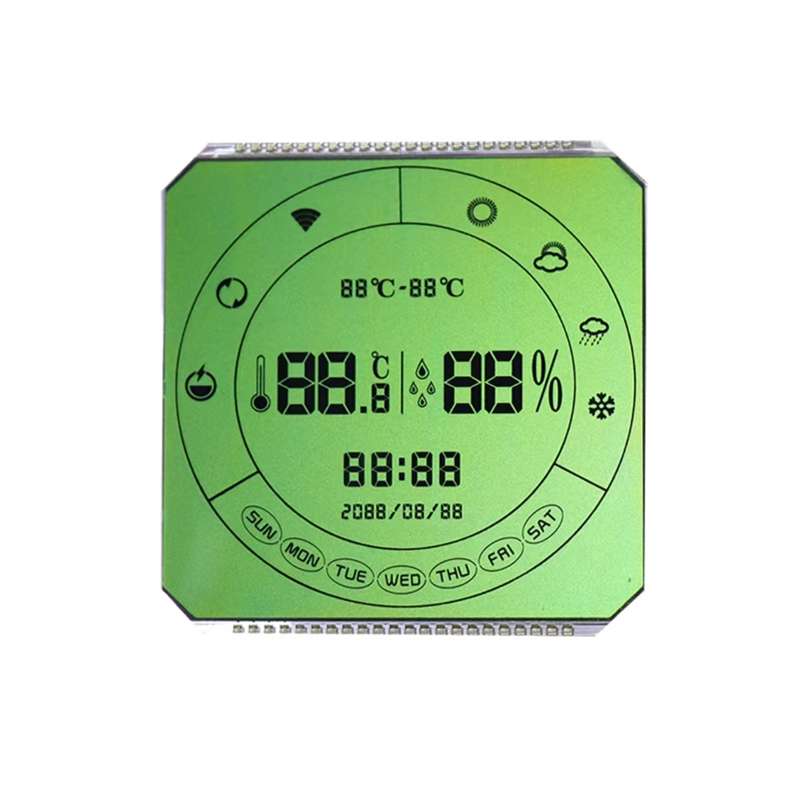

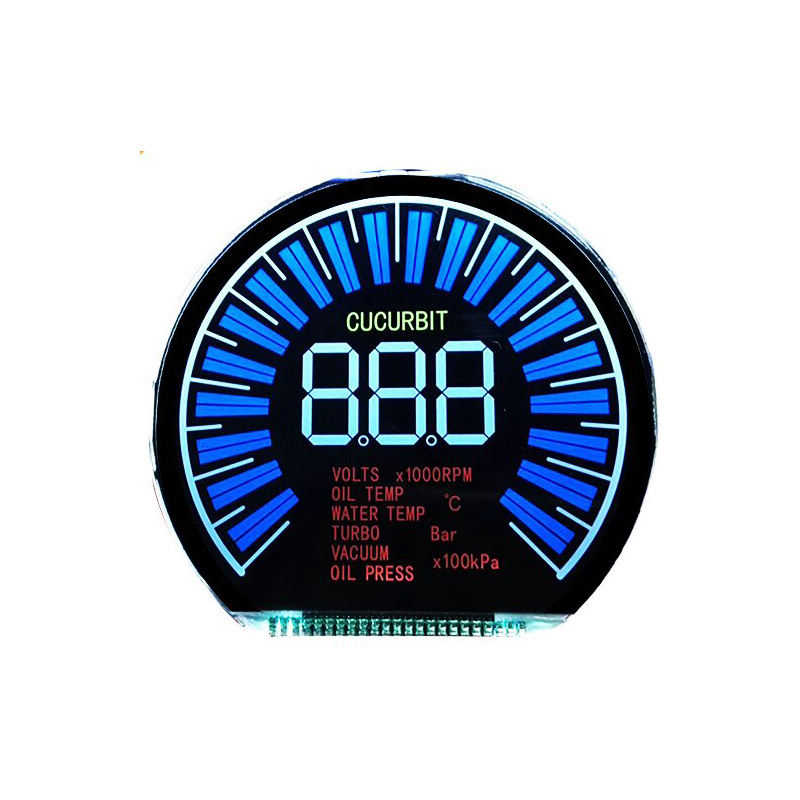

A special-shaped LCD is a liquid crystal display that breaks away from the traditional rectangular shape, designed in circular, curved, triangular, or other irregular forms to meet specific needs in specialized fields.
Special-shaped LCD transcend the limitations of traditional rectangular screens, offering customized designs in shapes such as circles, arcs, triangles, and hexagons to fulfill visual requirements across diverse scenarios. These displays maximize the use of the screen area, enhancing the screen-to-body ratio and delivering a more impactful visual experience. The performance of special-shaped LCDs is identical to that of standard LCD segment screens, passing high-intensity environmental tests while meeting the parameter requirements for industrial, medical, automotive, and home appliance applications. All products comply with the RoHS 2.0 directive and REACH regulations.
| Manufacturer | Eastern display |
| Display mode | VA /TN/HTN/STN LCD |
| Viewing angle | 6/12 O’ CLOCK |
| Operating voltage | 3.0V ---5.0V |
| Viewing angle range | 120-180° |
| Connection | FPC/Pins |
| Driver chip model | / |
| Backlight type/color | / |
| Operating temperature | -30℃-80℃ |
| Storage temperature | -40℃-85℃ |
| Lifetime | 100000 H |
| Multi-color | YES |
| Special shaped | YES |
| Product features | Special-shaped |
Key Words: STN LCD/FSTN LCD/VA LCD/TN LCD /display screen/ Special-shaped LCD/mini LCD screen/LCD glass/Segment LCD/Low cost LCD/EDC25137/EDC25138
Data loggers are widely used in industrial control, environmental monitoring, medical equipment, vehicle systems and other fields for recording various physical quantities (e.g., temperature, pressure, flow, voltage, current, etc.) for a long time and in a stable manner. When choosing a display solution for them, segment code LCD is a very common and highly advantageous choice. This product is a customized segment code COG module, its display is TN LCD screen, using COG module process, integrated driver chip, LCD screen is reflective mode, connected to the main control MCU through the serial interface, the connection mode is PIN or FPC. this type of LCD module has a wide range of operating temperatures, thin and lightweight structure, simple to use, good display effect, stable performance and so on.
Color film LCD is a color film combined with a fully transparent LCD to present color display content. For fixed display content, it can present the effect of a TFT color screen, and can be customized in special shapes. The price is much lower than that of a TFT color screen, the power consumption is low, and the high and low temperature performance is better than TFT. Color film LCD is usually in negative display mode and is used in combination with a backlight.
An i2c OLED display with a resolution of 128*32, I2C interface, ultra-low power consumption, ultra-high contrast and viewing Angle, and a wide operating temperature range of-40 to 70 degrees Celsius.
Monochrome dot matrix LCDs in STN and FSTN types, with a resolution of 128×64 or higher, capable of displaying graphics and multiple lines of text. They are widely used in handheld portable terminals like POS machines. These products feature high contrast and wide viewing angles, available in various display modes such as gray background with blue-black characters, yellow-green background with blue-black characters, and blue background with white characters. Utilizing COG (Chip-on-Glass) manufacturing technology, the products are slim, lightweight, and feature low power consumption. The module includes a driver chip and connects to the main MCU via an SPI or I2C interface, offering simple operation, excellent display quality, and stable performance.
Segment LCD products are widely used in medical instruments such as blood glucose meters, blood p...
This product is a 128×33 LCD dot matrix display capable of displaying graphics with 128 columns and 33 rows of pixels. The display utilizes an FSTN Transflective mode. A brightness enhancement film is attached to the bottom, and it can be paired with LED bottom backlight illumination. It displays blue-black characters on a gray background, offering high contrast, wide viewing angle, and a broad operating temperature range. The module contains a driver IC and employs COG (Chip-On-Glass) production technology, resulting in a thin, lightweight product with low power consumption. It connects to the master MCU via an SPI interface and is used for displaying various images and text.
Product description: Reflective LCD is a liquid crystal display technology that uses ...
Product description: 7-inch tft display uses automotive-grade LCD and backlight mater...
Segment display is widely used in industrial instruments, industrial control equipment and commun...
Product description: Fully transparent LCD segment code screen is a completely transp...
This product is a 240128 LCD dot matrix display that can display graphics with 240 columns x 128 rows of pixels. The display uses STN Negative mode LED backlit LCD, displays white text on a blue background, and has high contrast and wide viewing angle. The module contains a driver chip, uses COB and SMT production processes, and is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts.
Product description: 2.4 inch OLED display, resolution 128*64, parallel port or I2C i...
Product description: Segment LCD is widely used in industrial instruments, industrial...
LCD segment displays are widely used, with some products deployed in extreme environments such as low temperature, high temperature, strong light, and high humidity. High-durability LCDs are designed to meet the demands of such harsh operating conditions.
LCD segment display products are widely used in medical instruments such as blood glucose meters,...
This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses STN yellow-green mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip, adopts COB production technology, and is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts. The internal compensation circuit enables the module to achieve good display effects even when used in a wide temperature range.
