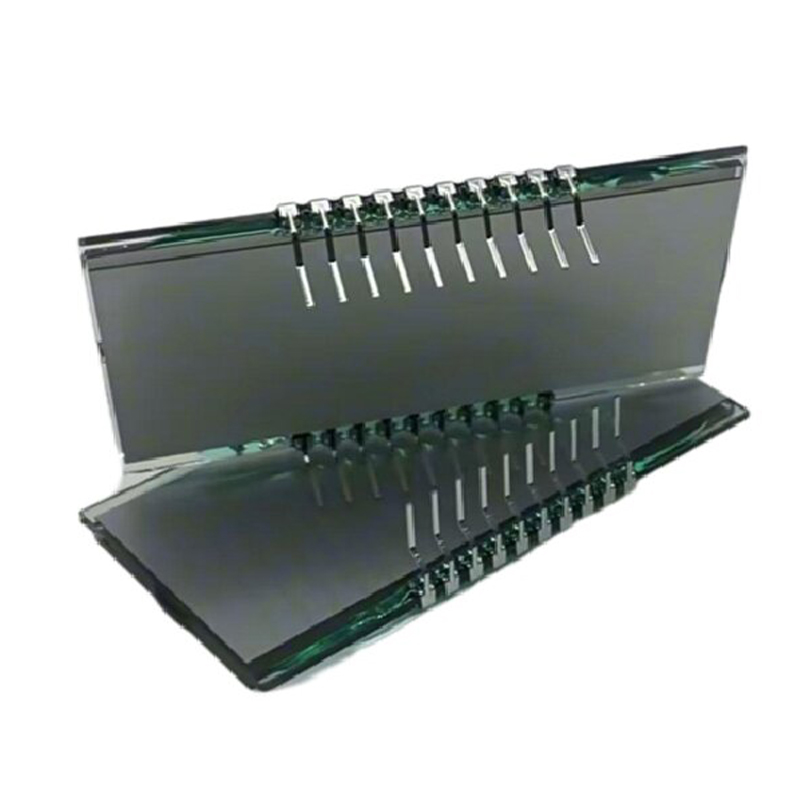

Special-shaped pin LCD refers to a pin design that is different from the traditional straight pin or right-angle pin. Special-shaped pins can be divided into the following categories: Anti-vibration pins, which reduce the impact of vibration on the pins through special structures. Limit pins, used to fix the LCD position to prevent offset. Bending pins, which adapt to the space limitations of PCB boards, are usually used in the design of pins on one side. Irregular multi-segment pins are suitable for complex assembly requirements, such as aircraft-shaped pins or irregular pins on both sides. Special-shaped pin LCDs are widely used in the following fields: Automotive electronics: Anti-vibration pin design is suitable for car displays. Industrial instruments, limit pins and bending pins are used for space-constrained equipment.
| Manufacturer | EASTERN DISPLAY |
| Contrast | 10-120 Customization |
| Connection method | PIN Shape Customization |
| Display type | Negative/Positive Customization |
| Viewing angle direction | Customization |
| Operating voltage | 2.5V-5V |
| Viewing angle range | 70-150° |
| Number of drive paths | STATIC/ MULTI DUTY |
| Backlight type/color | Customization |
| Display color | Customization |
| Transmittance type | REFLECTIVE / Reflection /TRANSFLECTIVE Customization |
| Operating temperature | -40-90℃ |
| Storage temperature | -45-90℃ |
| Service life | 100,000-200,000 hours |
| UV resistance | YES |
| Power consumption | Microampere level |
This product is a 19264 LCD dot matrix display that can display graphics with 192 columns x 64 rows of pixels. The display uses a Blue Negative Mode LED backlit LCD to display white text on a blue background with high contrast and wide viewing angle. The module contains a driver chip and adopts a COB production process. It is connected to the main control MCU through an 8-bit parallel LCD interface and is used to display various images and texts.
