Unlike conventional straight metal PINs, special-shaped metal PINs feature custom-designed forms. They are generally categorized as follows:

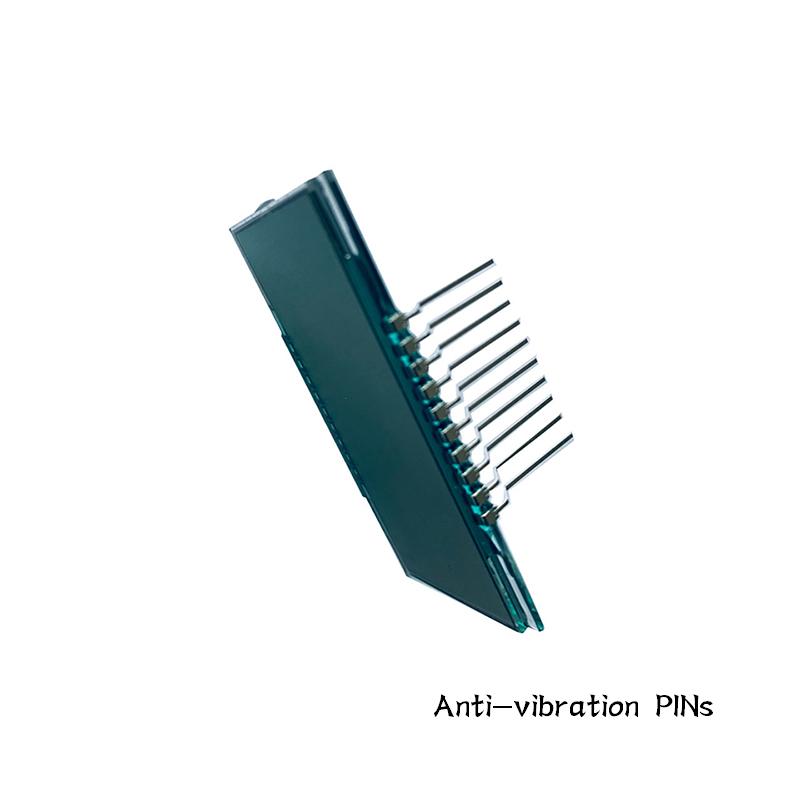

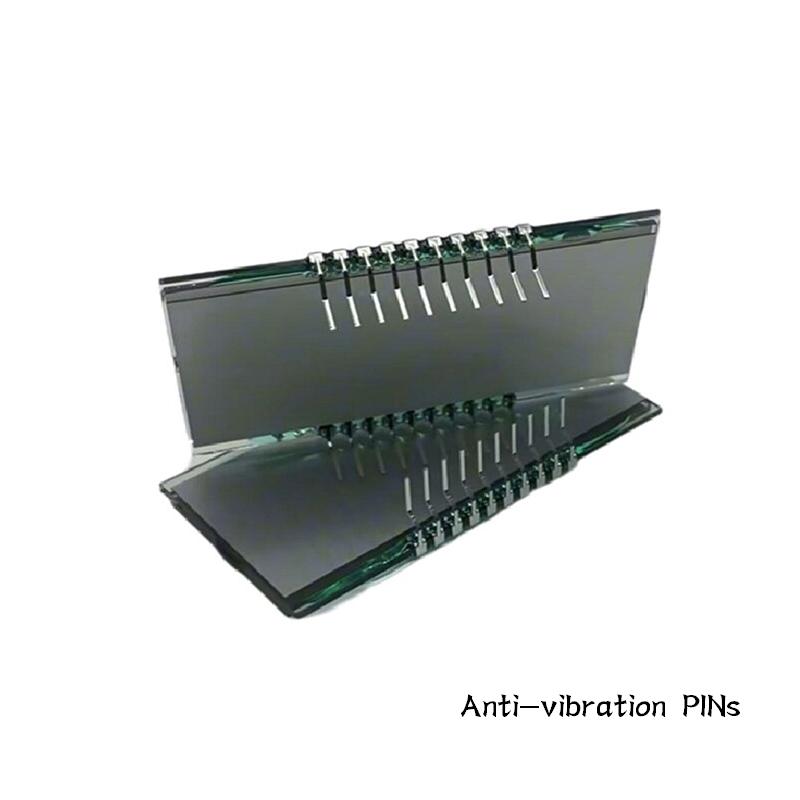

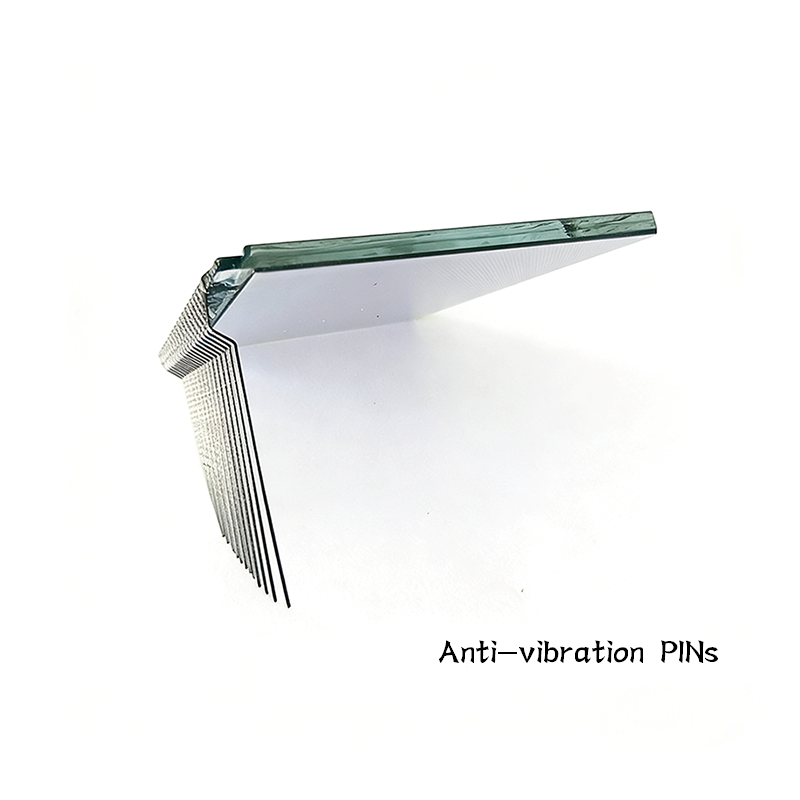

1. Anti-vibration PINs: Utilize special structures to minimize the impact of vibration on LCD performance.

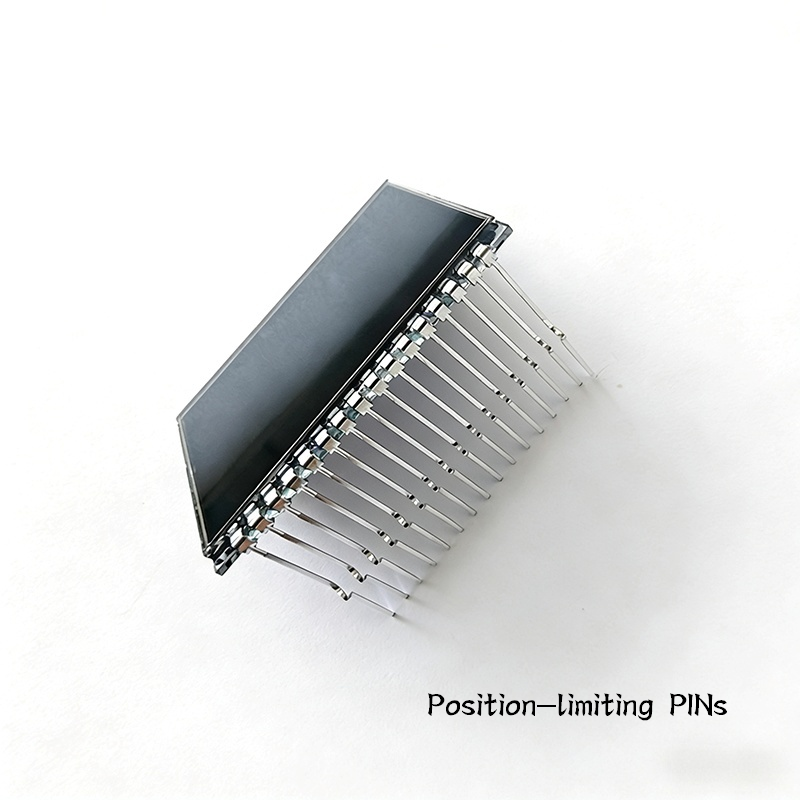

2. Position-limiting PINs: Secure the assembly position through the pin's locking design.
3. Bent PINs: Accommodate specific spatial constraints during assembly.

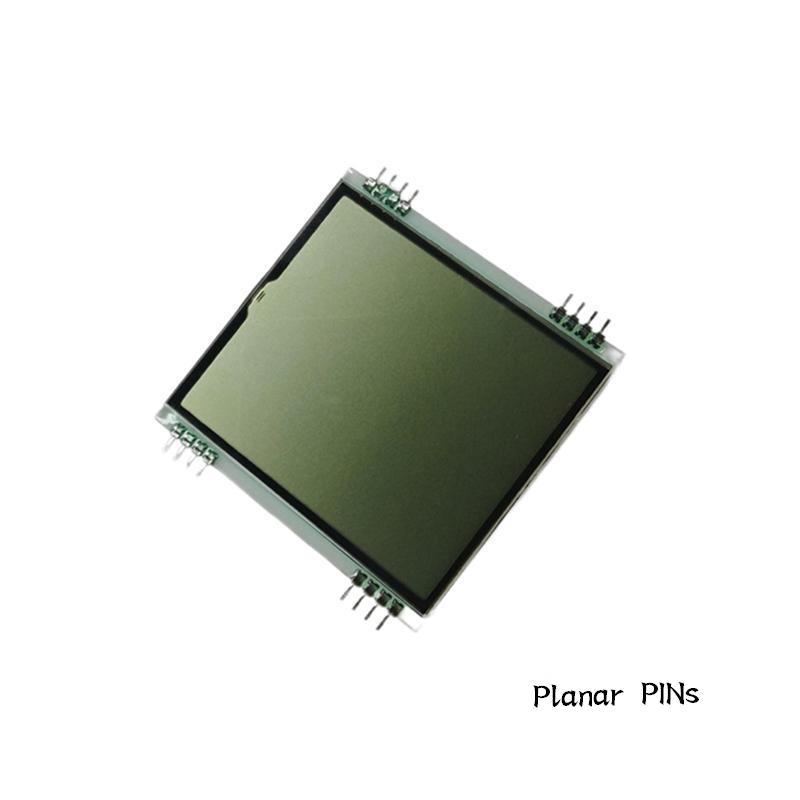

4.Planar PINs: The PINs are parallel to the LCD surface, also commonly referred to as airplane PINs.
The other performance characteristics of：Special-shaped PIN LCDs are entirely consistent with those of standard LCD screens and they can pass high-intensity environmental testing. They equally meet the parameter requirements for applications in industrial, medical, automotive, and home appliance fields. All products comply with the RoHS 2.0 directive and REACH regulations.
| Manufacturer | Eastern display |
| Display mode | VA /TN/HTN/STN LCD |
| Viewing angle | 6/12 O’ CLOCK |
| Operating voltage | 3.0V ---5.0V |
| Viewing angle range | 120-180° |
| Connection | PINS |
| Driver chip model | / |
| Backlight type/color | / |
| Operating temperature | -40℃-80℃ |
| Storage temperature | -40℃-85℃ |
| Lifetime | 100000 H |
| Multi-color | YES |
| Special shaped | YES |
| Product features | Special-shaped PIN |
Key Words：VA/TN/HTN/STN LCD/ Anti-vibration PIN LCD/Small LCD display/LCD glass/Segment LCD/Low cost LCD/Limit PIN LCD / Planar PIN
