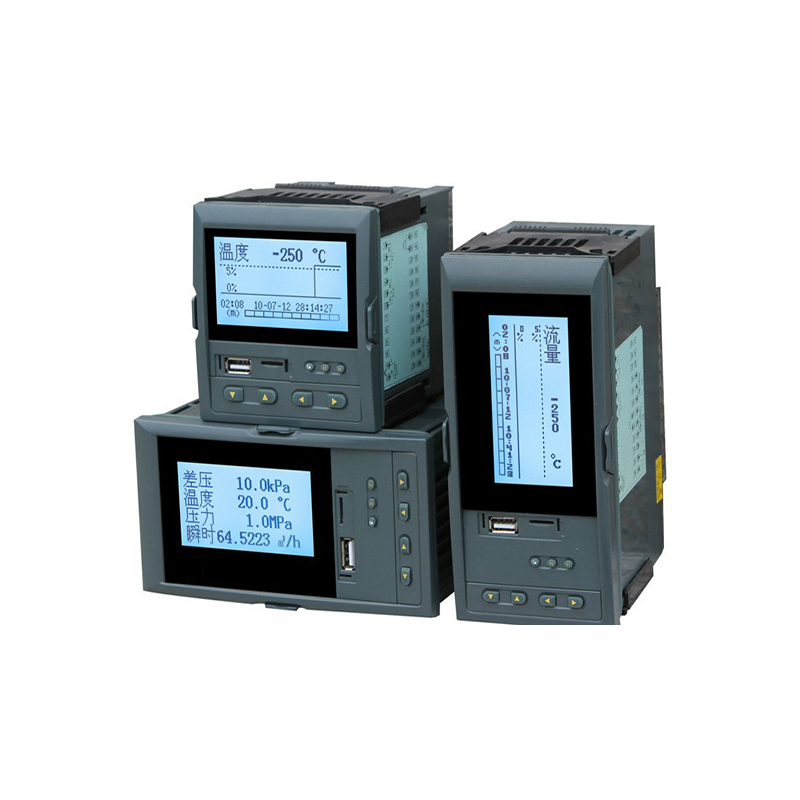

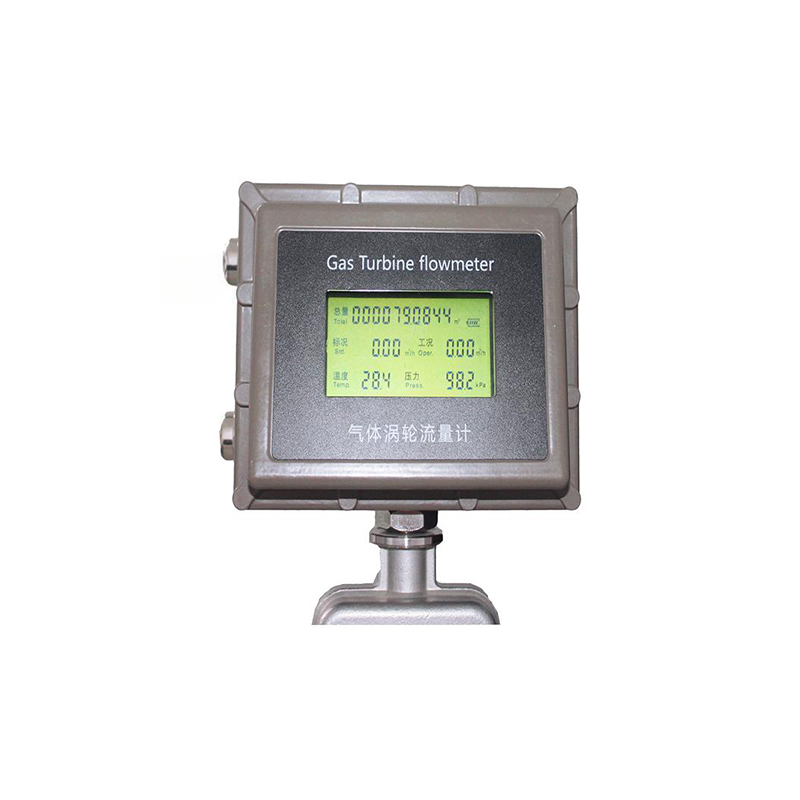

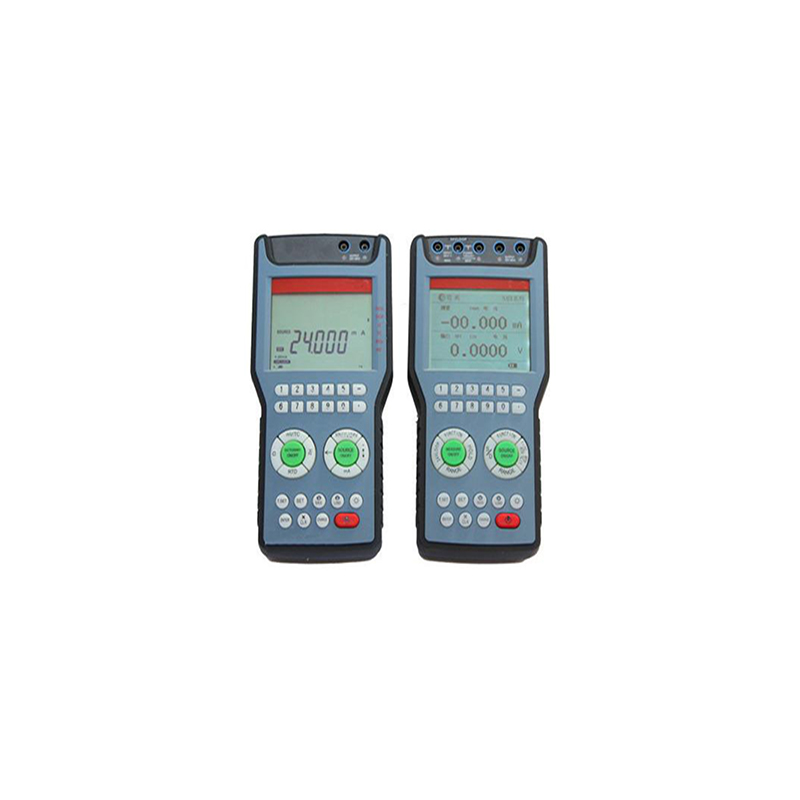

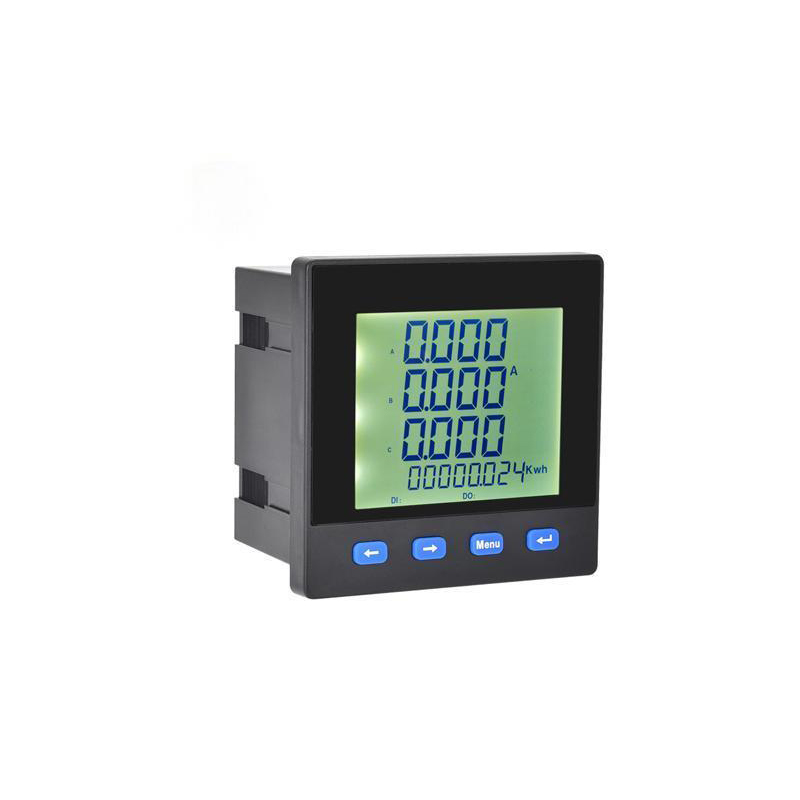

STN LCD are widely used in detection instruments, display instruments, and regulation (control) instruments. They can meet the industrial instruments’ requirements for high precision, high reliability, and intelligence. At the same time,
STN dot matrix displays can accommodate the needs of complex display content, such as showing adjustment parameters, setting alarms, and outputting control signals. STN segment displays are capable of multiplex drive and offer a wide viewing angle range. Paired with a 10mm-thick glass cover, they can be adapted for explosion-proof, dust-proof, and contamination-resistant environments, with an optional integrated touch function.
Eastern Display provides thousands of LCD display models to clients across North America, Europe, East Asia, and other regions, with an annual supply exceeding one million STN LCD units. Leveraging years of product development and manufacturing experience in serving customers from the industrial instrumentation, industrial control equipment, and communication equipment sectors, we have accumulated profound technical expertise in product design, core parameters, and customer concerns. This enables us to consistently deliver high-quality, highly reliable STN LCD products to our clients.
| Manufacturer | Eastern Display |
| Display mode | STN LCD |
| Viewing angle | 6/12 O’ CLOCK |
| Operating voltage | 2.5V ---3.3V |
| Viewing angle range | 120-160° |
| Connection | FPC/Pins |
| Driver chip model | / |
| Backlight type/color | / |
| Operating temperature | -20℃-75℃ |
| Storage temperature | -30℃-85℃ |
| Lifetime | 100,000 H |
| Multi-color | YES |
| Special shaped | YES |
| Product features | Power consumption less than 50μA |
Key words：STN LCD/LCD display screen/LCD 16x2/LCD display 16x2/i2c LCD display/ips lcd/Dot matrix display/LCD dot matrix display/mini LCD screen/LCD1602/r LCD/LCD 12864/LCD backlight
