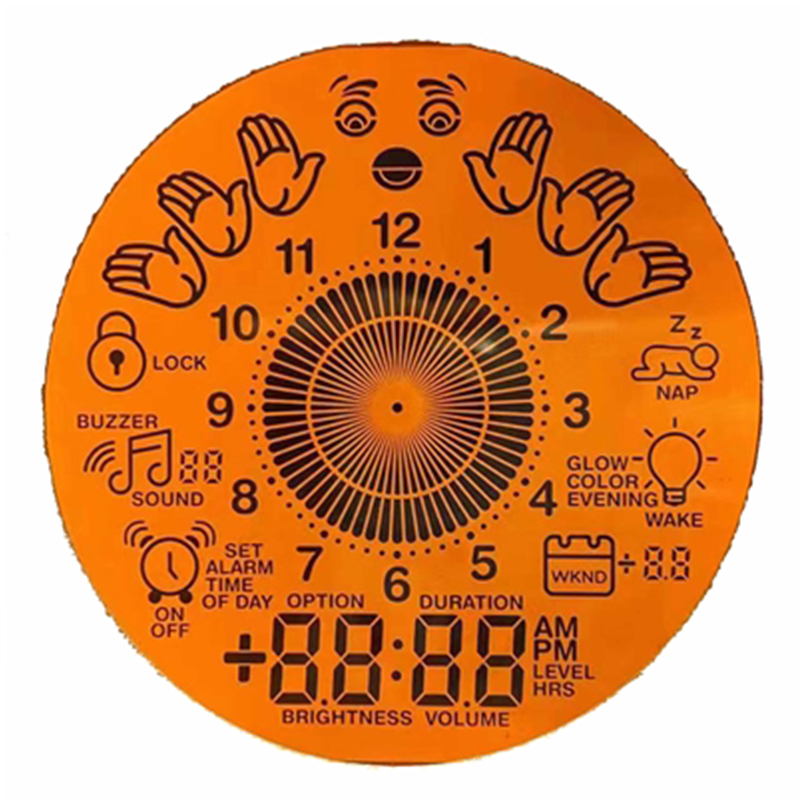

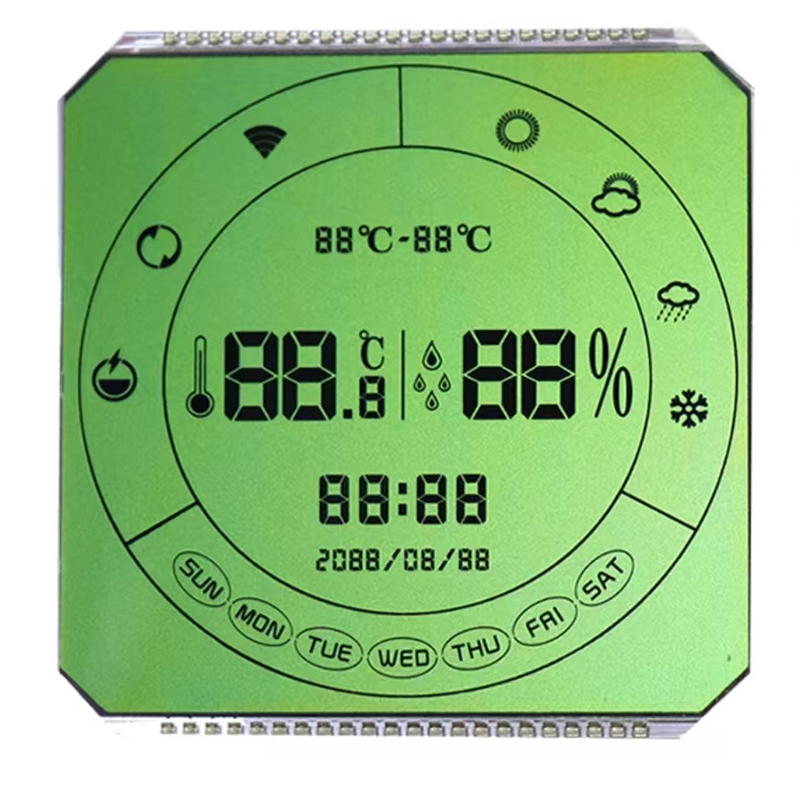

Product description: STN/segment LCD has a wide viewing angle, which can reach 150° front and back, and 120° left and right. It is suitable for multi-channel dynamic drive and suitable for displaying complex screens. It can reach 320 channels without crosstalk. STN/FSTN segment products have an ultra-wide viewing angle and can be used as LCD screens for multiple people to watch at the same time. High-precision flow meters, precision measuring tools, interconnected measurement, kitchen appliances, and vehicle-mounted instruments mostly use STN LCD segment screens. STN segment products have high contrast and wide viewing angle, and are widely used by European, American, and Japanese...
STN/segment LCD has a wide viewing angle, which can reach 150° front and back, and 120° left and right. It is suitable for multi-channel dynamic drive and suitable for displaying complex screens. It can reach 320 channels without crosstalk.
STN/FSTN segment products have an ultra-wide viewing angle and can be used as LCD screens for multiple people to watch at the same time. High-precision flow meters, precision measuring tools, interconnected measurement, kitchen appliances, and vehicle-mounted instruments mostly use STN LCD segment screens. STN segment products have high contrast and wide viewing angle, and are widely used by European, American, and Japanese customers. Most of the products that display complex graphics and dot matrix use STN segment screens without crosstalk. The dot matrix size below 320DUTY can be customized, and the connection method can be customized (pins, conductive rubber strips, FPC). Auxiliary temperature compensation can improve the low temperature effect and can be made into a touch screen. There are black text on green background, black text on gray background, and white text on blue background. It can be used with color backlight and color silk screen. The product material standards meet ROSH REACH requirements.
| Manufacturer | EASTERN DISPLAY |
| Contrast | 50-100 |
| Connection method | PIN/FPC/ZEBRA |
| Display type | Segment LCD /Negative/Positive Customization |
| Viewing angle direction | Customization |
| Operating voltage | 2.5V-5V |
| Viewing angle range | 120° |
| Number of drive paths | STATIC/ MULTI DUTY |
| Backlight type/color | Customization |
| Display color | Customization |
| Transmittance type | REFLECTIVE / Reflection / TRANSFLECTIVE Customizable |
| Operating temperature | -40-80℃ |
| Storage temperature | -40-90℃ |
| Service life | 100,000-200,000 hours |
| UV resistance | YES |
| Power consumption | Microampere level |
