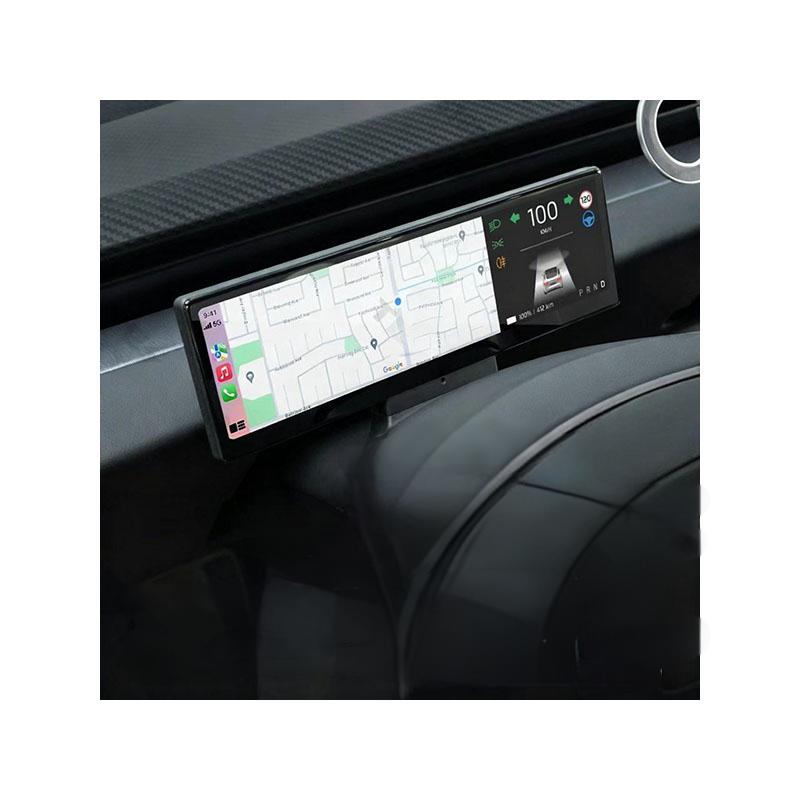

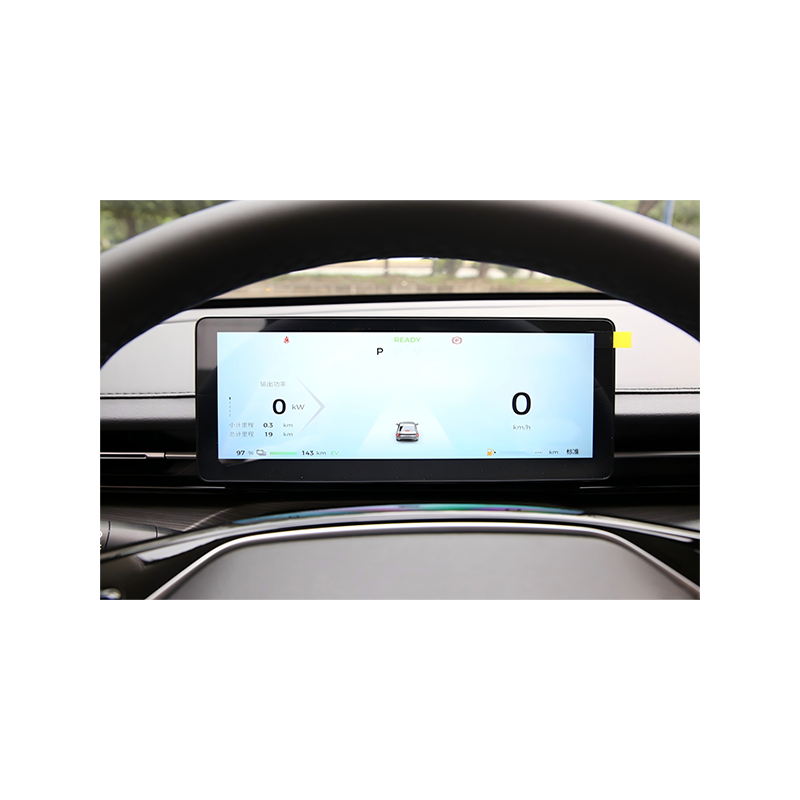

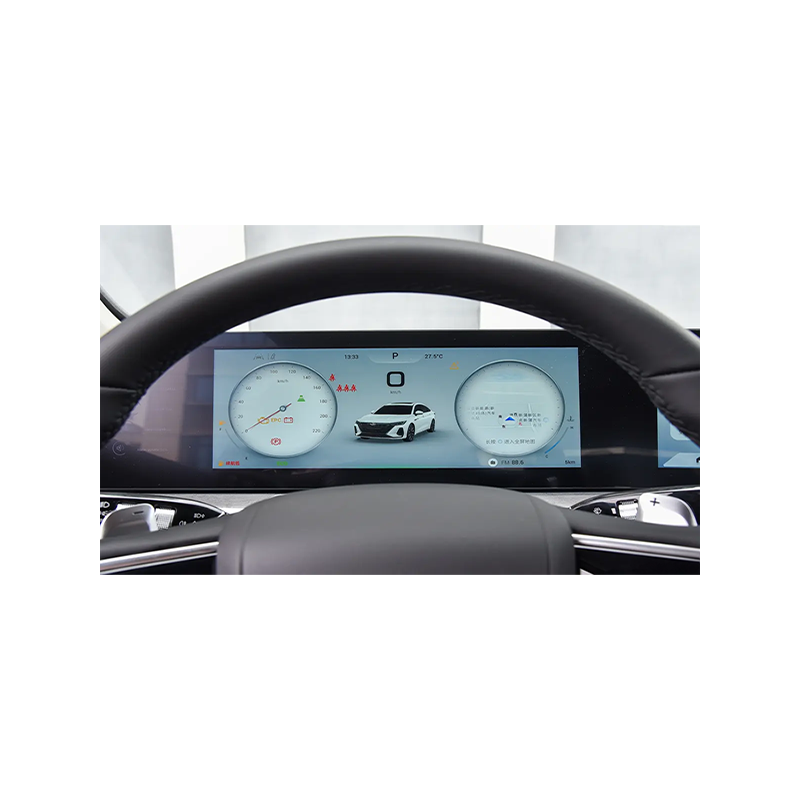

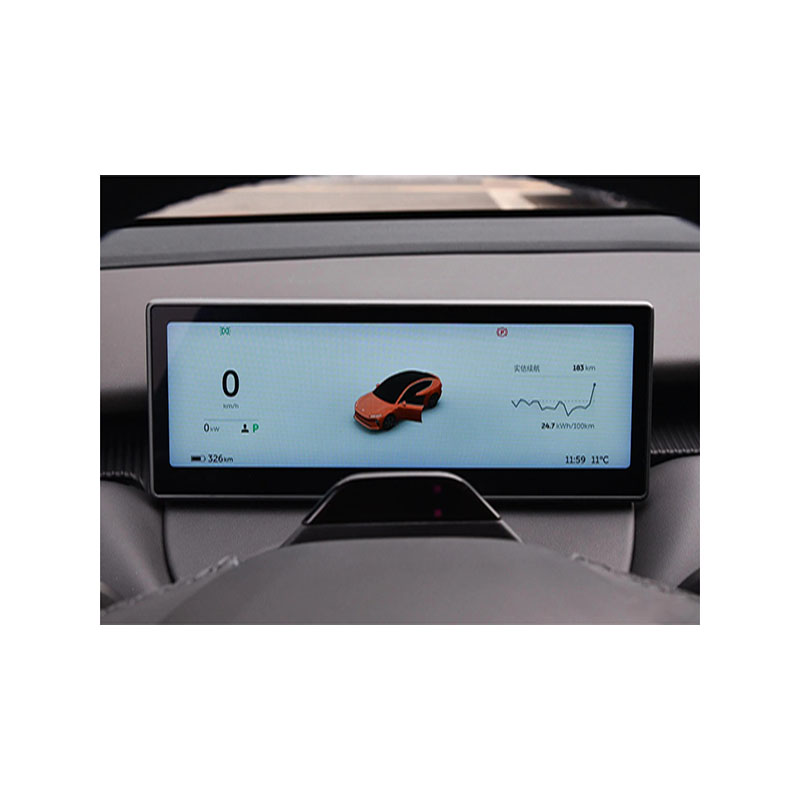

This product is a large-size dashboard TFT screen, featuring an IPS full-viewing-angle panel and LED backlight with 800 cd/m² brightness, ensuring clear visibility even in strong light environments. It supports a wide operating temperature range of -30℃ to 85℃. A capacitive touch panel and tempered cover glass can be laminated according to customer requirements. It offers clear display performance and meets the stringent demands of automotive application environments. It is widely used in new energy vehicle dashboards, robot displays, smart home appliances, and other fields.
EASTERN DISPLAY – A Global Display Solution Expert
✅ Trusted Choice for Multinational Clients
Serving clients in 20+ countries including China, Germany, USA, and Poland, providing 1000+ custom TFT display solutions.
✅ Stringent Environmental Standards
All products are RoHS/REACH compliant.
✅ Precise Adaptation Capability
Offers a full-size range from 2.0" to 15.6", with resolutions optional from 240×320 to 1920×1080.
✅ Customization Services Provided:
The following customization services are available for clients:
1. Customized backlight brightness.
2. Optional cover glass thickness, shape, and screen printing.
3. Tempered cover glass AR/AG/AF treatment.
4. OCA/OCR full lamination service.
5. Customized enclosure structure.
6. RTP/CTP optional.
7. IP65 protection rating optional.
| Manufacturer | Eastern Display |
| Resolution | 1280*480 |
| Interface | LVDS |
| Driver chip model | |
| Connection method | FPC |
| Display type | 16.7M color TFT display |
| Viewing angle | Free |
| Operating voltage | 3.3V |
| Backlight type | LED backlight |
| Brightness | 800cd/m2 |
| Operating temperature | -30-85℃ |
| Storage temperature | -40-85℃ |
| Cover panel | Provide customized services such as AF/AG/AR. |
| Keywords: custom TFT display, SPI TFT display, mini TFT display, TFT display touch screen, customized TFT, IPS TFT display, I2C TFT display, affordable TFT display. | |
