This large-format TFT display features an IPS full-view screen with LED backlighting (800cd/m²), ensuring crystal-clear visibility even in harsh light conditions. Designed for-20℃ to 70℃ wide temperature range operation, it employs a fully bonded process integrating capacitive touch panel and tempered glass cover. The display meets stringent manufacturing requirements while delivering exceptional clarity, making it ideal for power generation, medical applications, laboratory equipment, process control systems, and other high-demand industrial environments.
EASTERN DISPLAY ─ Global Display Solution Expert✅ Trusted Choice for Multinational Clients. Serving clients in China, Germany, the United States, Poland, and over 20 other countries, we provide more than 1,000 customized TFT display solutions✅ All products meet stringent environmental standards and have passed RoHS/REACH certification.
✅ Provide precise adaptation capability 2.
Full size coverage of 0-15.6" with resolution 240× 320 to 1920× 1080 optional. ✅ Customization services are provided:
We can provide the following customized services for customers:
1，Customizable backlight brightness.
2，Plate thickness, shape and screen printing are optional.
3，Steel cover plate AR/AG/AF treatment.
4，OCA/OCR full fit service
5，Customization of shell structure.
6，RTP/CTP optional.
7，IP65 protection class is optional.
| Manufacturer | Eastern Display |
| Resolution | 1280*800 |
| Interface | LVDS |
| Driver chip model | |
| Connection method | FPC |
| Display type | 16.7M color TFT display |
| Viewing angle | Free |
| Operating voltage | 3.3V |
| Backlight type | LED backlight |
| Brightness | 800cd/m2 |
| Operating temperature | -30-80℃ |
| Storage temperature | -40-85℃ |
| Cover panel | Provide customized services such as AF/AG/AR. |

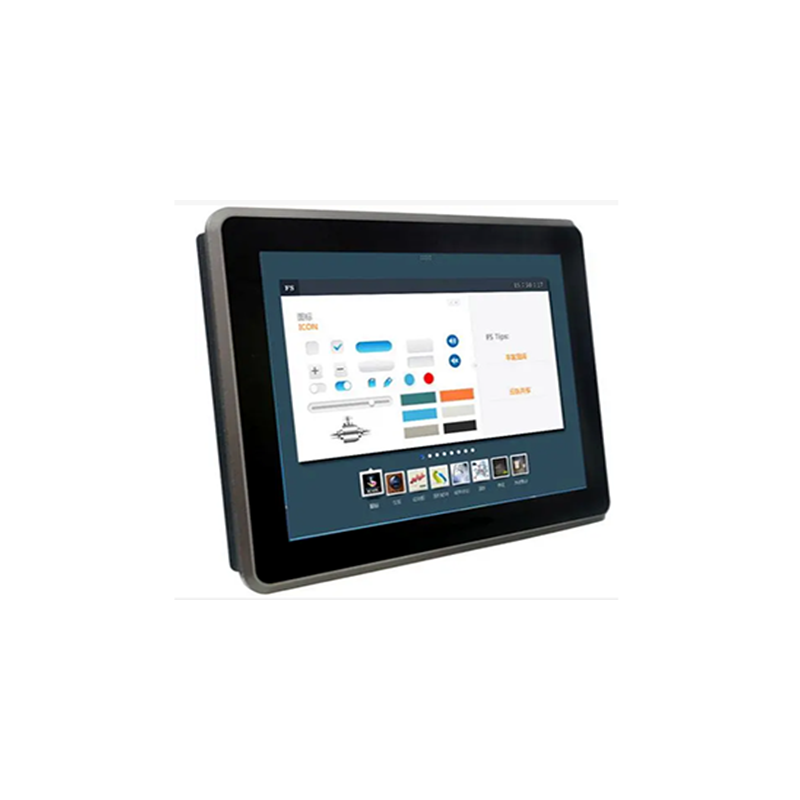

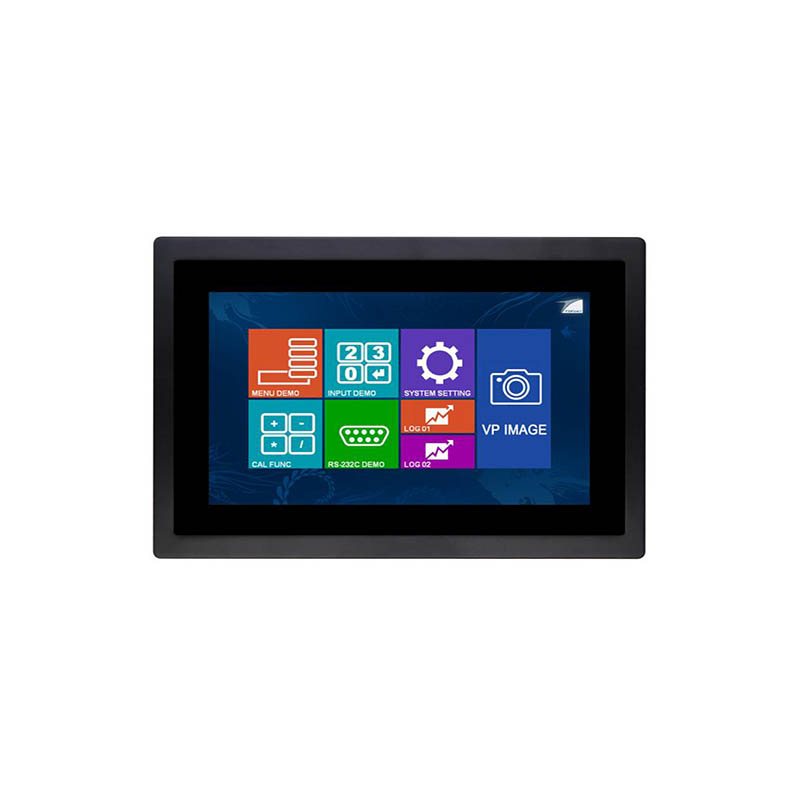

This large-format TFT display features a 1280×800 resolution, LVDS interface, and IPS full-view screen with 800cd/m² LED backlighting. Maintains clarity in bright environments while operating across-20℃ to 70℃ temperature ranges. The capacitive touch panel and tempered glass cover meet stringent manufacturing requirements, making it ideal for HMI systems, medical devices, analytical instruments, environmental monitoring equipment, and process control instruments.
LCD Applications in Agriculture: Agricultural equipment and monitoring instruments. Given the complex and ever-changing environments, corresponding LCD products must demonstrate high reliability. Specific requirements include: ultra-wide temperature tolerance, UV resistance, vibration resistance, high humidity tolerance, strong light visibility, low power consumption, and long lifespan. The products should also meet low-power operation standards and adapt to battery or solar power supply conditions.
VA LCD segment code products are upgraded products based on TN LCD technology. The contrast ratio can reach 120 and the wide temperature range is -45-90℃. The basic version of VALCD displays black background and white characters. If it is matched with the corresponding silk-screen color or color film, it can show the effect of TFT color screen and can also be used with TFT screen. It has micro-ampere low power consumption and can be powered by solar cells. Special shapes can meet customers’ special shape requirements.
Monochrome LCD screens in biosafety cabinets and medical transport cabinets are designed to monitor equipment status, display operational parameters, and support user interaction while meeting the specific requirements of biosafety environments. VA segment displays feature high contrast, wide viewing angles, and a broad temperature range, featuring fixed color icons (e.g., fans, alarm symbols) and numerical parameters. 192×64 dot matrix screens with STN negative display mode offer high contrast and wide viewing angles, supporting simple graphics (e.g., airflow diagrams) and multi-line text. These monochrome LCD screens prioritize functionality, reliability, and cost control in biosafety cabinets, making them suitable for mid-to-low-end models or scenarios where color accuracy is not critical.
LED segment display products are widely used in medical instruments such as blood glucose meters,...
Product description: 2 inch tft display is a mini tft display, which adopts full-view...
Product description: Super-large segment screens usually refer to LCD segment screens...
This 128128 LCD dot-matrix display features 128 columns x128 rows of pixels. Operating in FSTN mode with a white LED backlight, it delivers high contrast and wide viewing angles for blue-black text on a gray background. The module incorporates a driver chip manufactured using COG technology, ensuring lightweight design and low power consumption. Connected via an SPI interface LCD port to the main MCU, it enables versatile image and text display.
Product description: This product is a high-definition large-size TFT screen, resolut...
Product description: TN LCD, HTN LCD, STN LCD, FSTN LCD, VA LCD, compared with other ...
Product description: Fully transparent LCD segment code screen is a completely transp...
Product description: Compared with TN LCD, HTN LCD, STN LCD, and FSTN LCD, VA LCD has...
Product description: TN LCD is widely used in industrial instruments, industrial cont...
The VA segment code COG LCD module, known for its high reliability, superior optical performance, and cost-effectiveness, has become an ideal choice for display systems in small electric vehicles. This custom segment code COG module features a VA LCD screen, which is manufactured using the COG process and integrated with a driver chip. The LCD screen operates in VA mode and is connected to the main MCU via an I2C interface, using FPC (Flexible Printed Circuit) technology. This type of LCD module can be customized according to specific needs, offering high contrast, wide viewing angles, excellent display quality, a broad operating temperature range, low power consumption, a lightweight design, and stable performance.
Product description: Segment LCD is widely used in industrial instruments, industrial...
This product is a 128128 LCD dot matrix display that can display graphics with 128 columns x 128 rows of pixels. The display uses FSTN mode, displays blue and black characters on a gray background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is light and thin with low power consumption. It is connected to the main control MCU through the SPI interface or 8-bit parallel LCD interface to display various images and texts.
