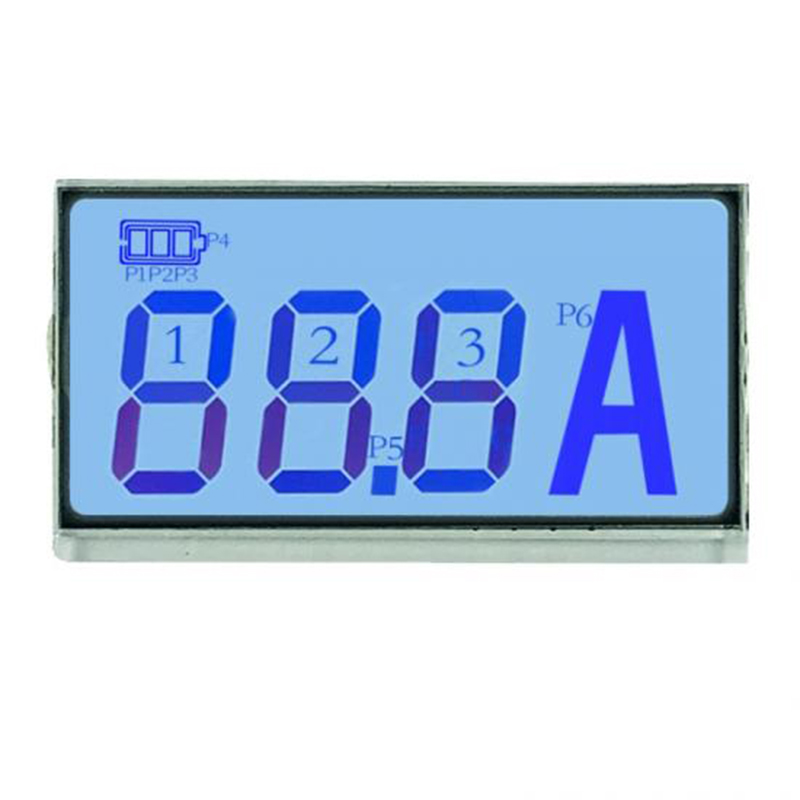

Product description: The light source of the translucent LCD segment code LCD screen comes from both the backlight and the reflection of the external ambient light. This means that it can work with and without backlight. When there is backlight: the backlight source provides light from the back of the LCD screen, making the screen clearly visible in a dark environment. When there is no backlight: the external light is reflected by the polarizer in front of the LCD screen, so that the screen can also display content in a well-lit environment. Translucent screen Translucent LCD has a better display effect in a strong light environment (such as outdoors), but requires backlight suppo...
The light source of the translucent LCD segment code LCD screen comes from both the backlight and the reflection of the external ambient light. This means that it can work with and without backlight. When there is backlight: the backlight source provides light from the back of the LCD screen, making the screen clearly visible in a dark environment. When there is no backlight: the external light is reflected by the polarizer in front of the LCD screen, so that the screen can also display content in a well-lit environment.
Translucent screen Translucent LCD has a better display effect in a strong light environment (such as outdoors), but requires backlight support in a weak light environment. You can choose whether to turn on the backlight according to the usage scenario, which saves energy and meets the needs of different environments. When there is sufficient light, the display content is clear; in a dark environment, the display effect is still good after turning on the backlight.
Due to its flexibility and adaptability, the translucent LCD segment code LCD screen is widely used in the following fields: Outdoor equipment: such as outdoor instruments, billboards, etc., can still display clearly in the sun. In-vehicle electronics: such as in-vehicle instruments and navigation equipment, which can adapt to changes in light inside and outside the car. Industrial control: such as industrial instruments and control panels, which can be used in a variety of light environments. Consumer electronics: such as calculators and clocks, which can be used both indoors and outdoors.
| Manufacturer | EASTERN DISPLAY |
| Contrast | 20-100 |
| Connection method | PIN/FPC/ZEBRA |
| Display type | Segment LCD /Positive |
| Viewing angle direction | Customized |
| Operating voltage | 2.5V-5V Customized |
| Viewing angle range | 120-150° |
| Number of drive paths | STATIC/ MULTI DUTY |
| Backlight type/color | Customized |
| Display color | Customized |
| Transmittance type | Transflective |
| Operating temperature | -40-80℃ |
| Storage temperature | -40-90℃ |
| Service life | 100,000-200,000 hours |
| UV resistance | YES |
| Power consumption | Microampere level |
