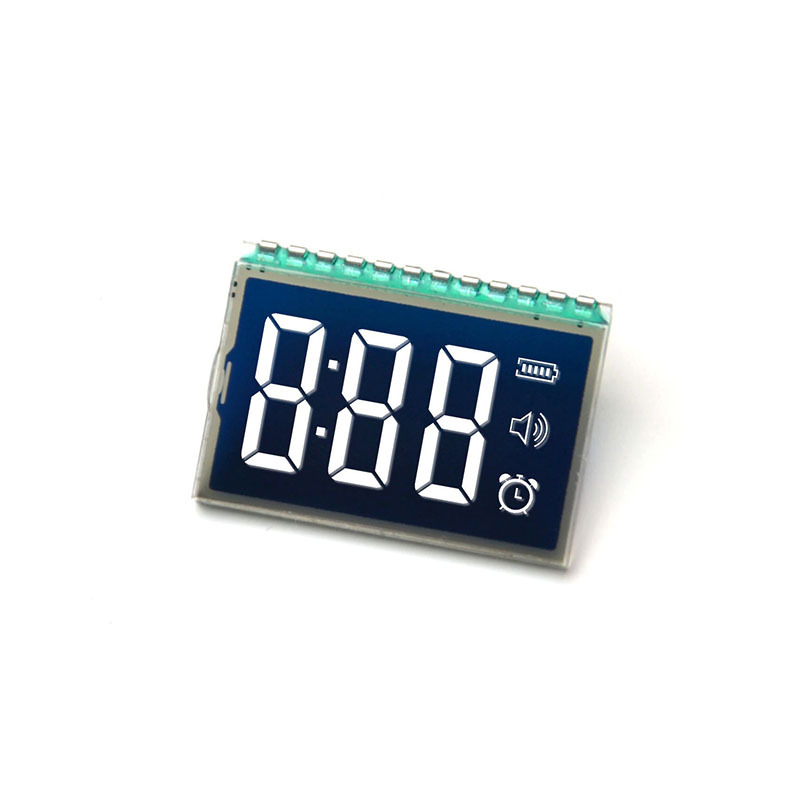

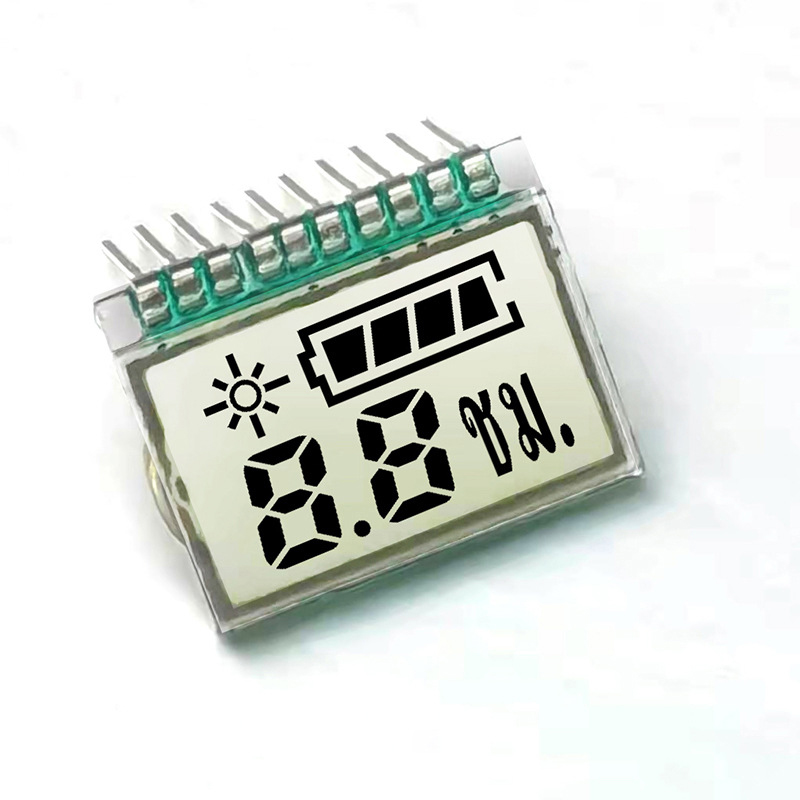

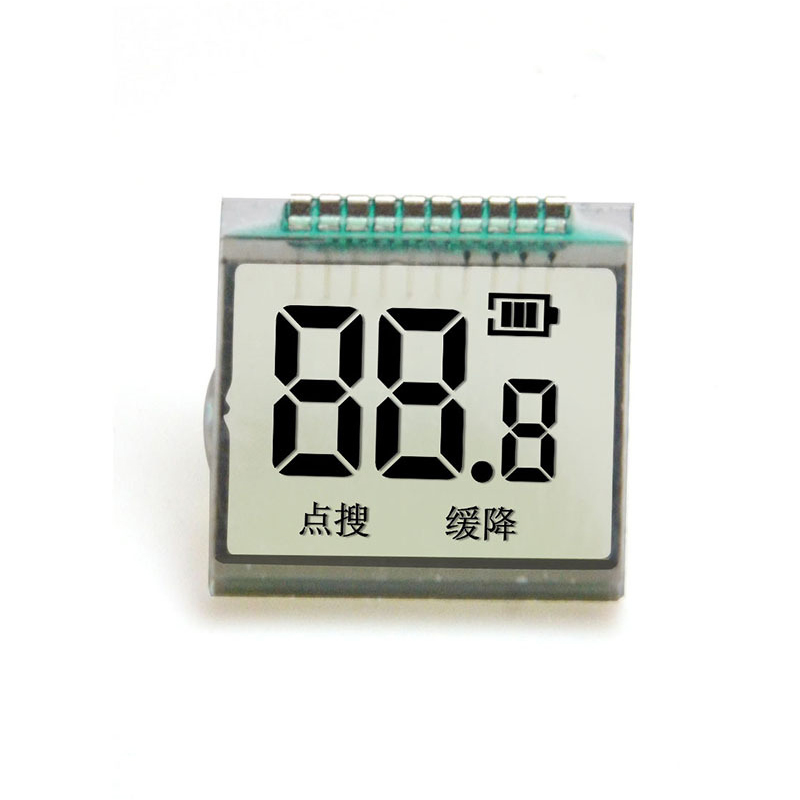

Product description: Ultra-small size segment LCD is a display technology widely used in electronic devices, especially in situations where low power consumption, high contrast and simple display are required. Our company has a dedicated fully automatic placement machine for ultra-small size LCD, with a daily production capacity of 100K Ultra-small size segment LCD is usually used in small size and low power consumption equipment such as thermometers and measurement and testing equipment. Supports multiple modes such as TN (gray background with black text) and VA (black background with white text). You can choose reflective, fully transparent or semi-transparent backlight, and can...
Ultra-small size segment LCD is a display technology widely used in electronic devices, especially in situations where low power consumption, high contrast and simple display are required. Our company has a dedicated fully automatic placement machine for ultra-small size LCD, with a daily production capacity of 100K
Ultra-small size segment LCD is usually used in small size and low power consumption equipment such as thermometers and measurement and testing equipment. Supports multiple modes such as TN (gray background with black text) and VA (black background with white text). You can choose reflective, fully transparent or semi-transparent backlight, and can make COG (Chip on Glass) structure with driver chip.
| Manufacturer | EASTERN DISPLAY |
| Contrast | 20-120 |
| Connection method | Customized |
| Display type | Customized |
| Viewing angle direction | 6 0’ CLOCK Customized |
| Operating voltage | 3V-5V Customized |
| Viewing angle range | 120-140° |
| Number of drive paths | STATIC/ MULTI DUTY |
| Backlight type/color | Customized |
| Display color | Customized |
| Transmittance type | Transmissive/ Reflection /Transflective Customized |
| Operating temperature | -40-85℃ |
| Storage temperature | -40-90℃ |
| Service life | 100,000-200,000 hours |
| UV resistance | YES |
| Power consumption | Microampere level |
This product is a 14432 LCD dot matrix display that can display graphics with 144 columns x 32 rows of pixels. The display uses a Blue Negative Mode LED backlit LCD to display white text on a blue background, with high contrast and wide viewing angle. The module contains a driver chip, uses COB production technology, and is connected to the main control MCU through a 3-wire SPI interface to display various images and texts. It contains a simplified Chinese character library, and data transmission is simple.
This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses STN mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is thin and light, has low power consumption, and a wide temperature range. It is connected to the main control MCU through the SPI interface and is used to display various images and texts.
Product description: HTN LCD types are widely used in industrial instruments, industr...
Product description: LCD 12864 is widely used in industrial instruments, industrial c...
Product description: This product is an industrial-grade TFT display with a resolutio...
LCD Manufacturer/STN LCD/custom segment display/LCD display screen
Product description: Full-view VA LCD segment screen is an upgraded process of ordina...
Product description: 7 inch tft display uses automotive-grade LCD and backlight mater...
Product description: This product is a mini OLED display with a resolution of 128*64,...
Product description: Liquid Crystal Light Valve is a technical device that uses the c...
FPC LCD stands for Flexible Printed Circuit LCD. FPC is also called flexible printed circuit board, soft board, or flexible circuit board. It can be used for LCD glass lead output connection without driver chip, or COG LCD connection. No welding is required, easy to install, and the product is lightweight.
This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses FSTN mode, displays blue and black characters on a gray background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is light and thin with low power consumption. It is connected to the main control MCU through the SPI interface or 8-bit parallel LCD interface to display various images and texts.
Product description: mini oled display module, resolution 64*32, I2C interface, ultra...
Product description: This product is a mini TFT display with a resolution of 480*272,...
This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses an STN mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip and uses a COG production process. The product is thin and light, has ultra-low power consumption, and a wide temperature range. It is connected to the main control MCU via the SPI interface and is used to display various images and texts.
Product description: This product is an automotive instrument tft display, with a res...
