Product description: Ultra-wide temperature LCD segment code screen is a kind of LCD screen that can work stably in extreme temperature environment, and is widely used in outdoor fields such as industry and power equipment. For extremely cold environment below -45℃, our company launches auxiliary heating LCD to overcome the limitations of the liquid crystal material itself; high temperature conditions can meet the working requirements of 90℃. Ultra-wide temperature LCD segment code screen supports an operating temperature range of -45℃ to +95℃. Some outdoor industrial instruments, energy instruments, and mining equipment need to work under low temperature conditions, and the instr...
Ultra-wide temperature LCD segment code screen is a kind of LCD screen that can work stably in extreme temperature environment, and is widely used in outdoor fields such as industry and power equipment. For extremely cold environment below -45℃, our company launches auxiliary heating LCD to overcome the limitations of the liquid crystal material itself; high temperature conditions can meet the working requirements of 90℃.
Ultra-wide temperature LCD segment code screen supports an operating temperature range of -45℃ to +95℃. Some outdoor industrial instruments, energy instruments, and mining equipment need to work under low temperature conditions, and the instruments need to meet the working requirements. When some equipment is used in high temperature environments such as deserts, the LCD needs to meet the temperature conditions of 90℃. Our products of this type ensure the stability of the product display under extreme conditions through optimized process methods and the selection of special materials, while meeting the product life requirements.
| Manufacturer | EASTERN DISPLAY |
| Contrast | 20-120 |
| Connection method | PIN/FPC/ZEBRA |
| Display type | Segment LCD /Negative |
| Viewing angle direction | 6 0’ CLOCK Customized |
| Operating voltage | 3V-5V Customized |
| Viewing angle range | 120-150° |
| Number of drive paths | STATIC/ MULTI DUTY |
| Backlight type/color | Customized |
| Display color | Customized |
| Transmittance type | REFLECTIVE / Reflection / TRANSFLECTIVE Customizable |
| Operating temperature | -45-90℃ |
| Storage temperature | -50-95℃ |
| Service life | 100,000-200,000 hours |
| UV resistance | YES |
| Power consumption | Microampere level |
This product is a 14432 LCD dot matrix display that can display graphics with 144 columns x 32 rows of pixels. The display uses a Blue Negative Mode LED backlit LCD to display white text on a blue background, with high contrast and wide viewing angle. The module contains a driver chip, uses COB production technology, and is connected to the main control MCU through a 3-wire SPI interface to display various images and texts. It contains a simplified Chinese character library, and data transmission is simple.

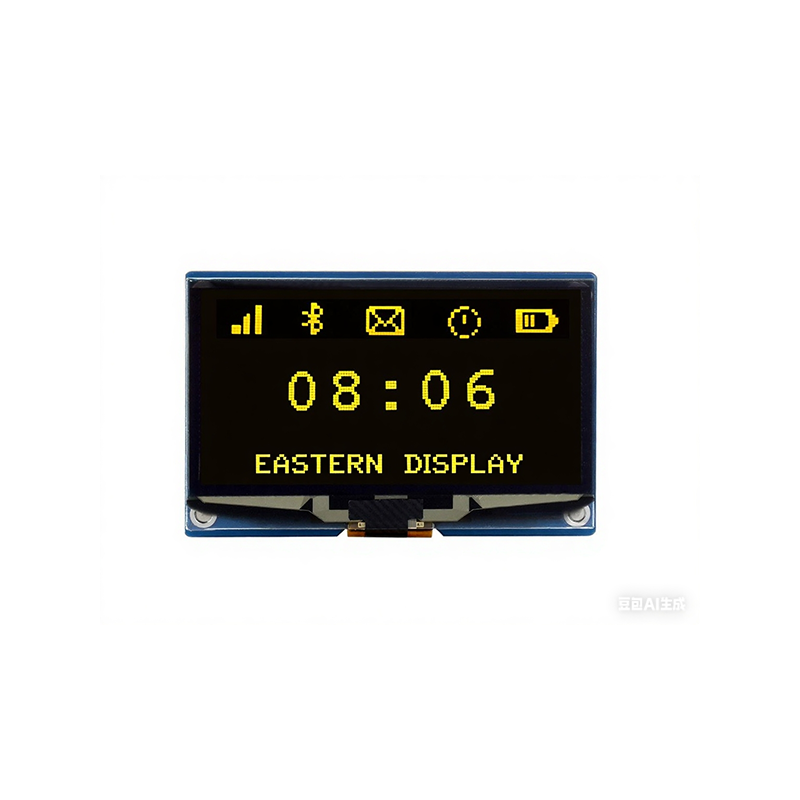

Product description: 2.4 inch OLED display, resolution 128*64, parallel port or I2C i...
FPC LCD stands for Flexible Printed Circuit LCD. FPC is also called flexible printed circuit board, soft board, or flexible circuit board. It can be used for LCD glass lead output connection without driver chip, or COG LCD connection. No welding is required, easy to install, and the product is lightweight.
This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses FSTN mode LED backlit LCD, which displays blue and black characters on a gray background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is light and has low power consumption. It is connected to the main control MCU through the SPI interface and is used to display various images and texts.
This product is a 256104 LCD dot matrix display that can display graphics with 256 columns x 104 rows of pixels. The display uses ASTN Negative mode LED backlit LCD, which displays white text on a black background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology, which is thin and light with low power consumption. It is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts.
Product description: VA LCD products have high contrast, can display multiple colors,...
Product description: TN products are widely used, cost-effective, wide temperature, U...
Product description: TN LCD is widely used in industrial instruments, industrial cont...
Product description: VA LCD products have high contrast, wide viewing angle, color an...
Product description: HTN LCD types are widely used in industrial instruments, industr...
Product description: Thin LCD segment display refers to LCD with an overall thickness...
This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses STN yellow-green mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip, adopts COB production technology, and is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts. The internal compensation circuit enables the module to achieve good display effects even when used in a wide temperature range.
Product description: HTN LCD products have high contrast, wide viewing angle, clear d...
This product is a 240128 LCD dot matrix display that can display graphics with 240 columns x 128 rows of pixels. The display uses STN Negative mode LED backlit LCD, displays white text on a blue background, and has high contrast and wide viewing angle. The module contains a driver chip, uses COB and SMT production processes, and is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts.
Product description: 7-inch tft display uses automotive-grade LCD and backlight mater...
Product description: VA LCD products are widely used in industrial instruments, indus...
