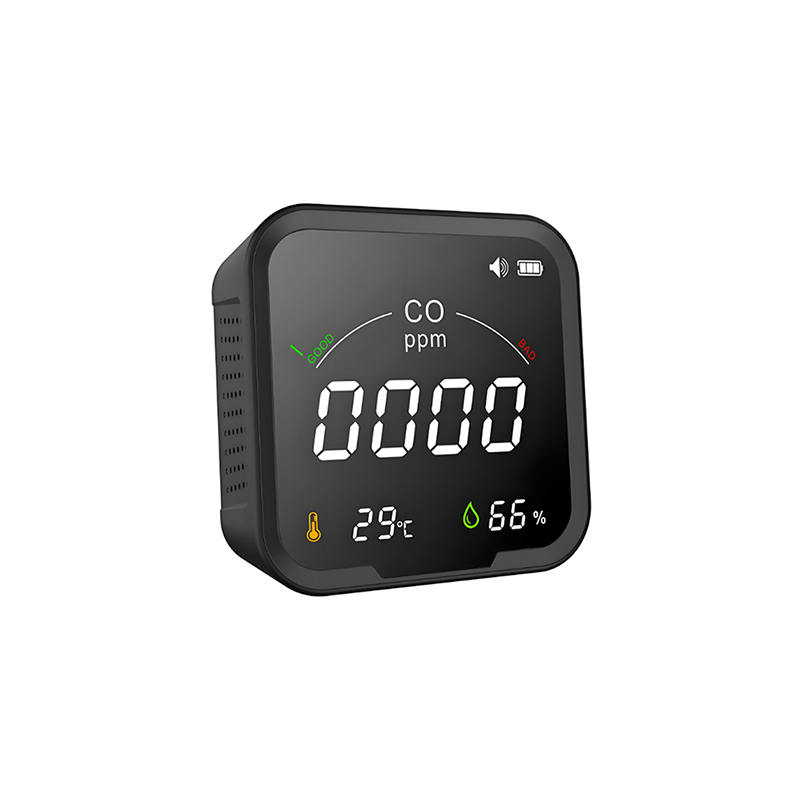

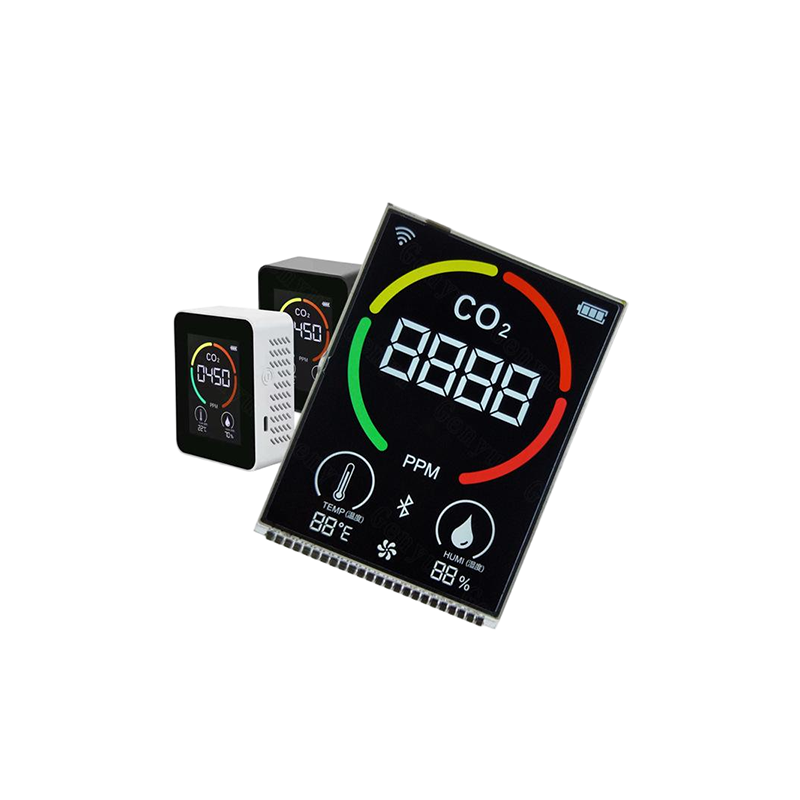

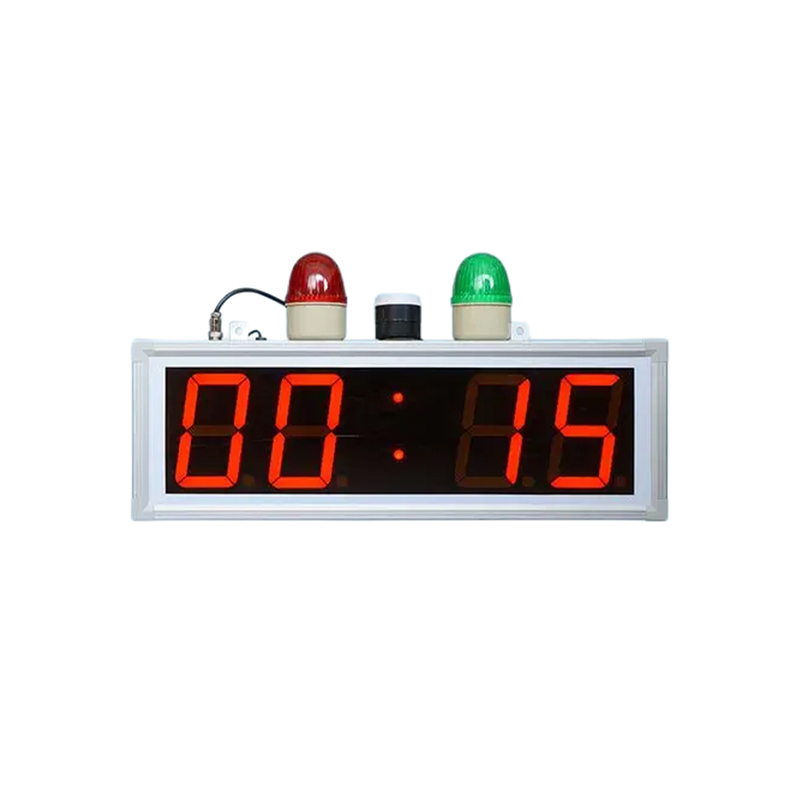

VA LCD products are widely used in industrial alarm instruments such as multi-channel alarm meters, single-channel digital display alarm meters, status/process indicators, and dedicated gas detection alarm meters. The LCD screens digitally display real-time measurement values (temperature, pressure, etc.), alarm setpoints, analog displays (percentage), channel numbers, alarm status indications, gas concentration values (e.g., %LEL), and provide precise display of single-point parameters and threshold alarms. This enables the informational representation of instrument functions for monitoring production process parameters and ensuring personal and property safety.
EASTERN DISPLAY supplies thousands of custom LCD display models to customers in North America, Europe, East Asia, and other regions, with an annual supply of VA LCD exceeding one million units. Our products comply with the EU RoHS and REACH standards. Leveraging years of product development and manufacturing experience in serving clients from the industrial instrumentation, industrial control equipment, and communication equipment sectors, we have accumulated profound technical expertise in product design, core parameters, and addressing customer concerns. This enables us to consistently provide high-quality, highly reliable VA LCD to our customers.
| Manufacturer | EASTERN DISPLAY |
| Display mode | VA LCD |
| Viewing angle | 6/12 O’ CLOCK |
| Operating voltage | 3.0V ---5.0V |
| Viewing angle range | 120-180° |
| Connection | FPC/Pins |
| Driver chip model | / |
| Backlight type/color | / |
| Operating temperature | -40℃-70℃ |
| Storage temperature | -40℃-85℃ |
| Lifetime | 100,000 H |
| Multi-color | YES |
| Special shaped | YES |
| Product features | Contrast ratio > 100 |
Keywords：LCD segment display/custom LCD display/LCD screen/small LCD display/LCD display price/custom segment display/LCD glass/LCD display/LCD display panel/Low power LCD
Fast response optical valve LCD can quickly change the light transmission state after receiving the signal, the response speed can reach 0.1 milliseconds (100 times faster than human blink); the product is thin and light, can achieve a thickness of 1.2 mm; the connection can be made into pins or FPC; can block infrared, ultraviolet.
Product description: 7-inch TFT display uses automotive-grade LCD and backlight mater...
The segment COG module features a TN or VA LCD display with LED backlighting, ensuring clear visibility in both bright and dim environments. Utilizing the COG technology, it integrates driver chips and connects to the main MCU via SPI/I2C interfaces through flexible printed circuits (FPC) or metal pins. This lightweight design offers wide temperature tolerance, low power consumption, user-friendly operation, and excellent cost-effectiveness. Customizable configurations are available for various LCD types including TN, HTN, STN, FSTN, and VA. The display supports seven-segment numbers and customizable graphic symbols, making it widely applicable in automotive air conditioning controllers.
This product is an LCD 16×2 character dot matrix display module designed for ASCII character display, featuring 2 rows with 16 characters per row. The display utilizes an FSTN mode LED backlit LCD, showing blue-black characters on a gray background with high contrast and a wide viewing angle. The module includes a built-in character driver chip and is manufactured using COG technology, making it thin, lightweight, and energy-efficient. It connects to the main MCU via an SPI interface or an 8-bit parallel LCD interface.
This 128128 LCD dot-matrix display features 128 columns x128 rows of pixels. Operating in FSTN mode with a white LED backlight, it delivers high contrast and wide viewing angles for blue-black text on a gray background. The module incorporates a driver chip manufactured using COG technology, ensuring lightweight design and low power consumption. Connected via an SPI interface LCD port to the main MCU, it enables versatile image and text display.
This product is a 320240 LCD dot matrix display that can display graphics with 320 columns x 240 rows of pixels. The display uses STN mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is thin and light, has ultra-low power consumption, and a wide temperature range. It is connected to the main control MCU through the SPI interface and is used to display various images and texts.
This product is a 12864 LCD dot matrix display capable of displaying graphics with a resolution of 128 columns x 64 rows of pixels. The display utilizes an STN mode with an amber LED backlit LCD, presenting amber background with black characters, achieving high contrast and a wide viewing angle. The module contains a dedicated driver chip, adopts COB production technology, and connects to the master MCU via an 8-bit parallel LCD interface for displaying various images and text. The internal compensation circuit ensures excellent display performance even under wide temperature conditions.
This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses FSTN mode LED backlit LCD, which displays blue and black characters on a gray background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is light and has low power consumption. It is connected to the main control MCU through the SPI interface and is used to display various images and texts.
Product description: This industrial-grade TFT display screen, with a resolution of 1...
This product is an LCD 16×2 character dot matrix display module, designed for displaying ASCII characters, with a total of 2 rows and 16 characters per row. The display adopts an STN blue negative display mode, equipped with white LED backlight LCD, presenting blue background with white characters, high contrast ratio, and wide viewing angle. The module incorporates a universal character driver chip, utilizes COB (Chip-On-Board) production technology, and connects to the main control MCU via an 8-bit parallel LCD interface, making it convenient to use.
Product Description: The rangefinder-specific LCD is a lens-compatible LCD display featuring a compact size, high contrast, shock resistance, durability, and excellent environmental adaptability. It requires high display accuracy to meet magnification inspection requirements, with edges remaining smooth and free of burrs even after 50x magnification. The product’s small size necessitates specialized fixtures and equipment for bonding polarizing films or chips, as well as FPC pressing.
Product description: HTN LCD types are widely used in industrial instruments, industr...
Eastern Display manufactures various types of character dot matrix LCD modules and graphic dot matrix LCD modules. The display modes include Yellow-Green STN, Blue-White STN, and Gray-Black FSTN, among others. The production processes incorporate COB technology and COG technology. Paired with LED backlight of different colors, these modules can display various characters and graphics. They are easy to use, offer high reliability and cost-effectiveness, and provide diverse options, making them widely used in various types of power meters.
A special-shaped LCD is a liquid crystal display that breaks away from the traditional rectangular shape, designed in circular, curved, triangular, or other irregular forms to meet specific needs in specialized fields.
Product description: TFT LCD display screens are widely used in various commercial ve...
DFSTN (Double-layer Super Twisted Nematic) LCD is a super twisted nematic display technology based on a double-layer compensation film. The product needs to be used in conjunction with a backlight, has the characteristics of high contrast, wide viewing angle, and is suitable for dynamic display. It is widely used in medical equipment, industrial equipment, consumer electronics and other fields.
