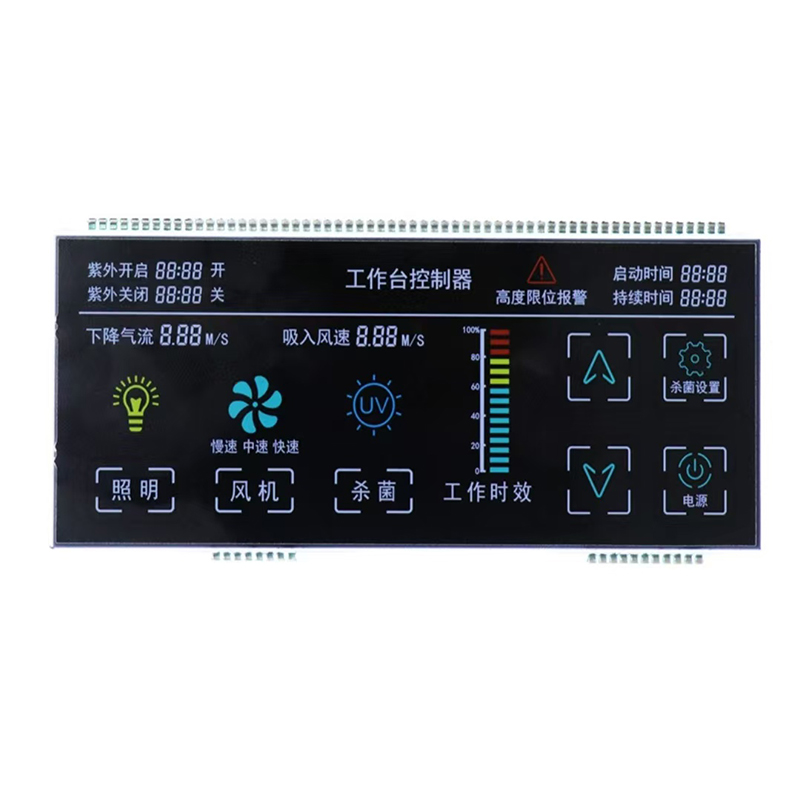

VA LCD segment code products are upgraded products based on TN LCD technology. The contrast ratio can reach 120 and the wide temperature range is -45-90℃. The basic version of VALCD displays black background and white characters. If it is matched with the corresponding silk-screen color or color film, it can show the effect of TFT color screen and can also be used with TFT screen. It has micro-ampere low power consumption and can be powered by solar cells. Special shapes can meet customers’ special shape requirements.
VA LCD segment screen is a liquid crystal display screen based on vertical alignment (VA) technology. It has good display effect, contrast greater than 100, and a wide temperature range of -40-90℃. Because of its low price and high quality, it is widely used in car screens, home appliances, public facilities, medical equipment and home physiotherapy devices. VA LCD adds color film and silk screen technology to show the effect of TFT color screen. It can replace TFT at low cost in many scenes. The product size, shape, color, operating temperature, voltage, and connection method can be customized. It can come with a uniform light diffusion film and can be made into a touch screen. Our company can provide COG LCD module, COB LCD module, and the product standards meet ROHS and REACH requirements.
| Manufacturer | EASTERN DISPLAY |
| Contrast | 80-160 |
| Connection method | PIN/FPC/ZEBRA |
| Display type | Segment LCD /Negative |
| Viewing angle direction | 6 0’ CLOCK (customizable) |
| Operating voltage | 3V-5V Customized |
| Viewing angle range | 120° |
| Number of drive paths | STATIC/ MULTI DUTY |
| Backlight type/color | Customized |
| Display color | Customized |
| Transmittance type | Transmissive |
| Operating temperature | -40-80℃ |
| Storage temperature | -40-90℃ |
| Service life | 100,000-200,000 hours |
| UV resistance | YES |
| Power consumption | Microampere level |
FPC LCD stands for Flexible Printed Circuit LCD. FPC is also called flexible printed circuit board, soft board, or flexible circuit board. It can be used for LCD glass lead output connection without driver chip, or COG LCD connection. No welding is required, easy to install, and the product is lightweight.
