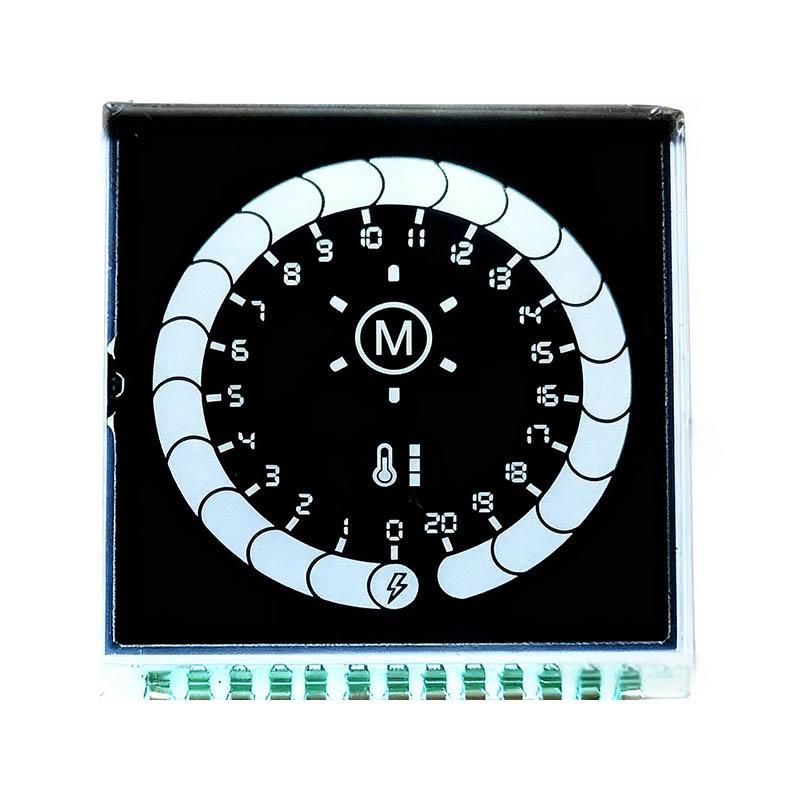

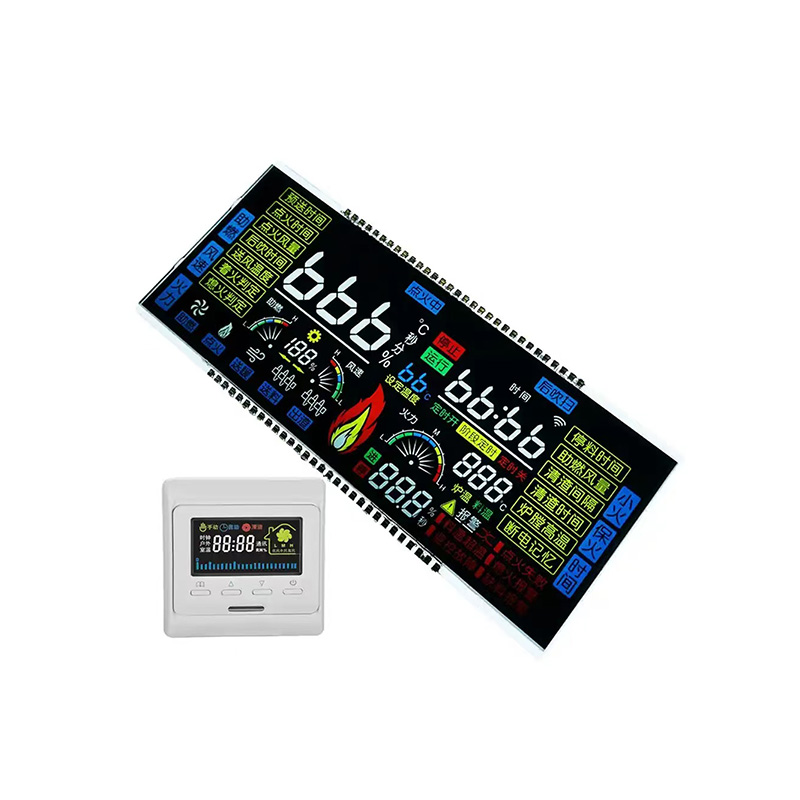

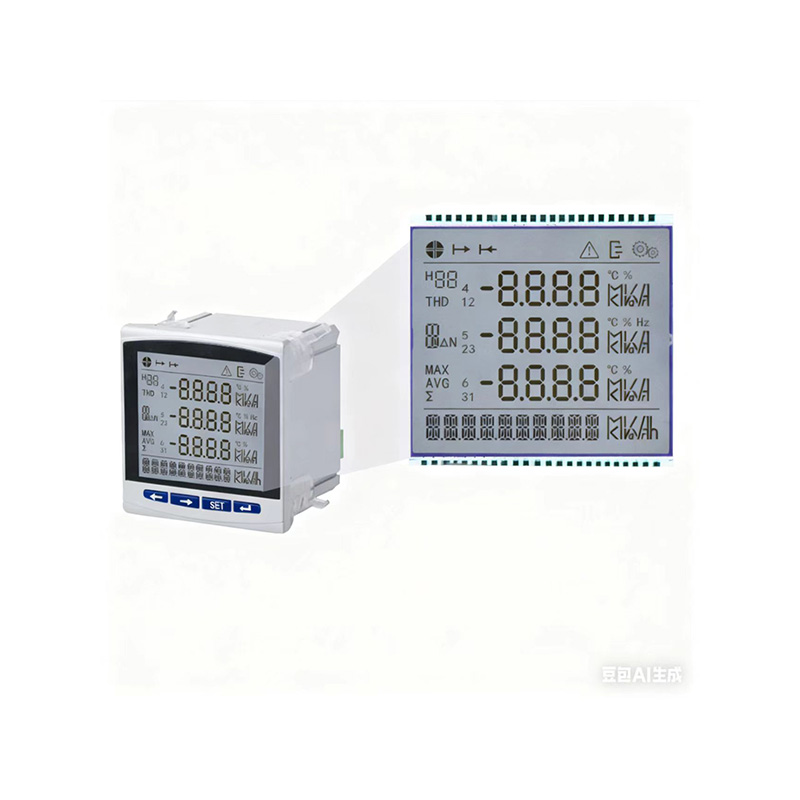

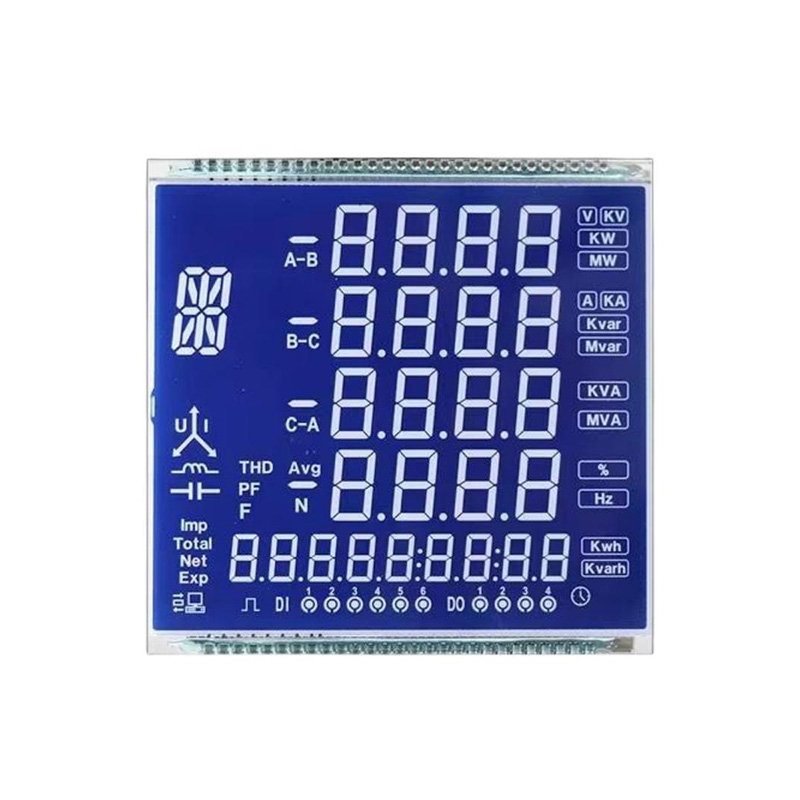

Wide-view LCD Segment Display: LCD segment displays typically have a primary viewing angle. Outside this primary viewing angle, contrast ratio differs significantly. The width of the primary viewing angle varies depending on the product type and manufacturing process. The electrical characteristics and environmental parameters of wide-viewing angle products are consistent with those of standard LCD segment displays.
Wide-view LCD Segment Display: TN LCD has the narrowest viewing angle, while HTN LCD offers a slightly wider viewing angle. STN LCD, FSTN LCD, and VA LCD are referred to as wide-viewing angle LCD segment displays. The primary viewing angle for STN and FSTN can reach up to 150°, and VA LCD can achieve up to 180°, providing a full viewing angle. When customizing an LCD, customers can directly specify the required viewing angle or describe the usage scenario, and we will provide viewing angle recommendations. Our products can be connected via methods such as "Heat Seal Connector," "Zebra Connector," "Metal Pins," and "FPC." The electrical characteristics, environmental parameters, and reliability of wide-viewing angle LCD segment displays are identical to those of standard LCD segment displays, also meeting the parameter requirements for industrial, medical, automotive, and other applications. All wide-viewing angle products comply with RoHS and REACH substance standards.
| Manufacturer | EASTERN DISPLAY |
| Connection method | FPC/ metal pins Custom |
| Product model | STN/FSTN/VA Custom |
| Viewing angle direction | Customizable/Can be viewed in full perspective |
| Operating voltage | 2.7V-5V Custom |
| Viewing angle range | 150-180° |
| Special shape | Custom |
| Number of drive paths | Custom |
| Backlight type/color | Custom |
| Operating temperature | -40--90℃ |
| Storage temperature | -45--90℃ |
| Visible under strong light | Custom |
| Screen printing / color film | Custom |
| Service life | 100,000 hours |
| Keywords: STN LCD, FSTN LCD, VA LCD, Wide Temperature Range, Custom Segment Display, High Contrast LCD, Lightweight LCD, Bright Light Viewing, Small LCD Display, LCD Glass, Segment LCD, Transparent LCD, Arduino LCD, Hydroshift LCD | |
